Unofficial File parts/4886.dat
Part Attributes:
File Header:

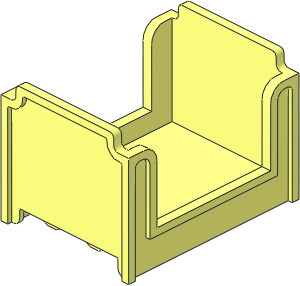

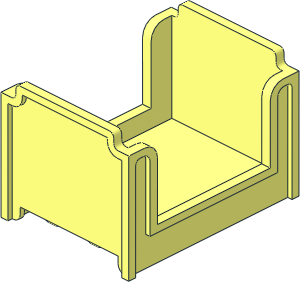

0 Duplo Bed 3 x 4 x 2.333 Bunk
0 Name: 4886.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2021-03-18 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2025-08-14 [RainbowDolphin] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4886s00.dat
0 // Patternable surface
4 16 40 -90 -76 -40 -90 -76 -46 -12 -76 46 -12 -76
Status:
Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
| User | Vote |
|---|---|
| WUIt | Certify |
Official parents and subparts
Part Events:
2025-08-14 16:26:02
2025-08-31 09:05:04
Please start subpart numbering from s01.
2025-09-15 12:11:34
Refined corners by circular prims as suggested
2025-09-22 17:03:37
Why is the loose edge placed here, and not in the subfile?
2025-09-23 15:10:48
2025-09-23 22:34:10
Creative Commons Attribution License information
This part is copyright © Takeshi Takahashi
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
* The height of the corners must not exceed 96 LDU.
* The height of the highest part of the bed should not exceed 108 LDU.
The following dimensions could be fixed as they differ from the physical part:
* The outer dimensions should be exactly 120 x 160.
* 2 24 -59.625 -26.25 -59.638 -59.625 -26.25 59.638 should be 120 LDU long.
* The underside bottom should be at 12 LDU so that the stud8 has a scale factor of 3.
* 2 24 -59.625 -26.25 59.638 -55.888 -26.25 59.638 should be 4 LDU.
* 2 24 -53.375 0 -75.9 -53.375 0 -79.625 should be 4 LDU.
* 2 24 -45.9 -13.25 72.15 -45.9 -13.25 75.9 should be 4 LDU.
* 4 16 -52.15 0 -72.15 -55.888 0 -73.349 -55.888 0 73.349 -52.15 0 72.15 should be 4 LDU wide.
* 2 24 -53.375 0 -79.625 -59.625 0 -79.625 should be 6.5 LDU.
* 4 16 -42.436 -109.5 -79.625 42.436 -109.5 -79.625 42.436 -109.5 -72.225 -42.436 -109.5 -72.225
should be 7.5 LDU wide.
* 2 24 -51.582 -32.526 53.136 -59.625 -32.526 53.136 should be 8 LDU.
