Unofficial File parts/s/84195s01.dat
File Header:

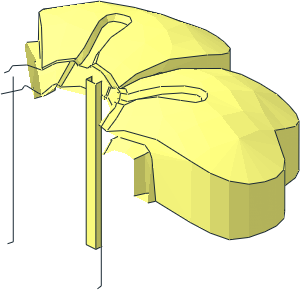

0 ~Duplo Flower with 5 Rounded Petals and 1 Top Stud - Flower Half
0 Name: s\84195s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 5 13 -1.5 0 0 0 42 0 0 0 -1 box4-4a.dat
2 24 13.7017 5 1.5 13.7017 47 1.5
2 24 14 47 0 13.7017 47 1.5
2 24 1.5 5 13.7017 1.5 47 13.7017
2 24 0 47 14 1.5 47 13.7017
2 24 -1.5 47 13.7017 0 47 14
2 24 -1.5 5 13.7017 -1.5 47 13.7017
2 24 -13.7017 5 1.5 -13.7017 47 1.5
2 24 -13.7017 47 1.5 -14 47 0
0 // petals
1 16 0 0 0 .309017 0 .9510565 0 1 0 -.9510565 0 .309017 s\84195s02.dat
1 16 0 0 0 -.809017 0 .5877853 0 1 0 -.5877853 0 -.809017 s\84195s02.dat
5 24 -20.4668 18.8 14.87 -20.4668 9.5 14.87 -19.7255 18.8 17.6693 -22.9 18.8 13.3
5 24 7.8176 18.8 24.0602 7.8176 9.5 24.0602 10.7089 18.8 24.2202 5.5726 18.8 25.8891
5 24 -20.4668 9.5 14.87 -18.25 9.1 13.2594 -22.6 9.2 12.8 -19.1573 9.2 17.5385
5 24 5.9434 9.7 18.2919 4.679 12.7 14.4005 9.1686 8 16.3027 2.165 8 18.5783
5 24 7.8176 9.5 24.0602 6.9709 9.1 21.4542 10.7601 9.2 23.6394 5.1897 9.2 25.4493
5 24 -18.25 9.1 13.2594 -15.56 9.7 11.305 -12.6715 8 13.7576 -17 8 7.8
5 24 -15.56 9.7 11.305 -12.2498 12.7 8.9 -12.6715 8 13.7576 -17 8 7.8
5 24 6.9709 9.1 21.4542 5.9434 9.7 18.2919 2.165 8 18.5783 9.1686 8 16.3027
0 // joiner 1
3 16 -24.0041 18.8 17.44 -24.7 8.2 16.1 -22.9447 8.2 18.5159
4 16 -22.5049 6.8 18.1331 -22.9447 8.2 18.5159 -24.7 8.2 16.1 -24.2 6.8 15.8
4 16 -22.5049 6.8 18.1331 -24.2 6.8 15.8 -23 5.6 15 -21.3732 5.6 17.239
4 16 -21.3732 5.6 17.239 -23 5.6 15 -17 6.1 11.7 -16.3807 6.1 12.5525
4 16 -13.2377 6.1 9.9987 -16.3807 6.1 12.5525 -17 6.1 11.7 -13.6 6.1 9.5
4 16 -11.3833 5.3 8.4983 -13.2377 6.1 9.9987 -13.6 6.1 9.5 -11.6 5.3 8.2
5 24 -24.2 6.8 15.8 -22.5049 6.8 18.1331 -22.9447 8.2 18.5159 -23 5.6 15
5 24 -24.7 8.2 16.1 -22.9447 8.2 18.5159 -24.0041 18.8 17.44 -24.2 6.8 15.8
5 24 -13.6 6.1 9.5 -13.2377 6.1 9.9987 -11.6 5.3 8.2 -16.3807 6.1 12.5525
5 24 -23 5.6 15 -21.3732 5.6 17.239 -22.5049 6.8 18.1331 -17 6.1 11.7
5 24 -17 6.1 11.7 -16.3807 6.1 12.5525 -13.6 6.1 9.5 -21.3732 5.6 17.239
0 // joiner 2
3 16 9.1688 18.8 28.2185 7.6793 8.2 28.4663 10.5194 8.2 27.5435
4 16 10.5194 8.2 27.5435 7.6793 8.2 28.4663 7.5485 6.8 27.898 10.2912 6.8 27.0069
4 16 9.7906 5.6 25.6543 10.2912 6.8 27.0069 7.5485 6.8 27.898 7.1585 5.6 26.5096
4 16 9.7906 5.6 25.6543 7.1585 5.6 26.5096 5.8741 6.1 19.7835 6.8762 6.1 19.4578
4 16 5.4187 6.1 15.6795 6.8762 6.1 19.4578 5.8741 6.1 19.7835 4.8324 6.1 15.87
4 16 5.4187 6.1 15.6795 4.8324 6.1 15.87 4.2141 5.3 13.5662 4.5648 5.3 13.4522
5 24 7.6793 8.2 28.4662 10.5194 8.2 27.5434 7.5485 6.8 27.898 9.1688 18.8 28.2185
5 24 7.5485 6.8 27.898 10.2912 6.8 27.0069 7.1585 5.6 26.5096 10.5194 8.2 27.5435
5 24 5.8741 6.1 19.7835 6.8762 6.1 19.4578 4.8324 6.1 15.87 9.7906 5.6 25.6543
5 24 4.8324 6.1 15.87 5.4187 6.1 15.6795 6.8762 6.1 19.4578 4.2141 5.3 13.5662
5 24 7.1585 5.6 26.5096 9.7906 5.6 25.6543 10.2912 6.8 27.0069 5.8741 6.1 19.7835
0 // intersection on bottom
2 24 15.2838 9.9391 3.6019 15.3007 9.8603 3.5166
2 24 15.2838 9.9391 3.6019 15.1526 10.4874 4.2615
2 24 4.8832 12.2155 15.029 4.2217 11.845 15.1605
2 24 4.2217 11.845 15.1605 1.6878 9.8621 15.6644
2 24 1.3428 9.7965 15.733 1.6878 9.8621 15.6644
2 24 4.8832 12.2155 15.029 5.7538 11.5749 14.8559
2 24 1.3428 9.7965 15.733 1.2347 9.8854 15.7545
2 24 6.1232 11.2405 14.7824 7.8302 9.8785 13.6416
2 24 6.1232 11.2405 14.7824 5.7538 11.5749 14.8559
2 24 8.0841 9.8521 13.4719 7.8302 9.8785 13.6416
2 24 1.2347 9.8854 15.7545 .556 10.3842 15.8894
2 24 -13.0506 11.9077 8.7146 -12.7054 12.2871 9.231
2 24 -13.0506 11.9077 8.7146 -14.5179 9.7615 6.5189
2 24 -14.7824 9.6497 6.1232 -14.5179 9.7615 6.5189
2 24 8.0841 9.8521 13.4719 8.1542 9.9364 13.4251
2 24 8.6888 10.5184 13.0678 8.1542 9.9364 13.4251
2 24 -12.3276 11.8328 9.7963 -12.7054 12.2871 9.231
2 24 -10.65 9.7936 11.7571 -11.3136 10.2767 11.3136
2 24 -11.3136 10.2767 11.3136 -12.3276 11.8328 9.7963
2 24 -14.8076 9.7932 5.9966 -14.7837 9.6498 6.1166
2 24 -14.918 10.397 5.4414 -14.8076 9.7932 5.9966
2 24 -10.65 9.7936 11.7571 -10.3397 9.7803 11.9645
2 24 -10.3397 9.7803 11.9645 -10.259 9.886 12.0184
2 24 -10.259 9.886 12.0184 -9.7542 10.4864 12.3558
2 24 15.84 11.673 .8045 16 12.0706 0
2 24 15.84 11.673 .8045 15.3585 9.9009 3.2261
2 24 15.3585 9.9009 3.2261 15.3007 9.8603 3.5166
2 24 .556 10.3842 15.8894 0 10.2222 16
2 24 0 10.2222 16 -6.1232 9.7928 14.7824
2 24 -6.1232 9.7928 14.7824 -9.7542 10.4864 12.3558
2 24 15.1526 10.4874 4.2615 14.7824 10.0225 6.1232
2 24 11.3136 9.8795 11.3136 14.7824 10.0225 6.1232
2 24 8.6888 10.5184 13.0678 11.3136 9.8795 11.3136
2 24 -16 9.7642 0 -14.918 10.397 5.4414
0 // intersection on top
2 24 -13.7502 3.897 5.9026 -12.0286 5.4714 8.4786
2 24 10.6921 2.9233 10.4784 10.6065 2.9699 10.6065
2 24 7.5395 3.8421 12.6562 10.6065 2.9699 10.6065
2 24 11.2321 3.9285 9.6704 10.6921 2.9233 10.4784
2 24 14.3524 3.8386 3.2566 14.9556 5.5523 .2234
2 24 13.8585 3.2824 5.7405 14.3524 3.8386 3.2566
2 24 -13.8585 3.862 5.7405 -13.7502 3.897 5.9026
2 24 -13.8585 3.862 5.7405 -14.5702 2.8818 2.1613
2 24 -3.3762 3.9011 14.3286 -5.7405 3.9784 13.8585
2 24 -5.7855 3.9744 13.8285 -5.7405 3.9784 13.8585
2 24 13.1181 2.8936 6.8484 13.8585 3.2824 5.7405
2 24 13.1181 2.8936 6.8484 12.5881 3.9024 7.6414
2 24 12.5881 3.9024 7.6414 11.2321 3.9285 9.6704
2 24 -10.6065 4.4575 10.6065 -9.7782 3.8672 11.1601
2 24 -10.6065 4.4575 10.6065 -11.7936 5.477 8.8303
2 24 -14.5702 2.8818 2.1613 -14.7572 3.9247 1.2208
2 24 7.5395 3.8421 12.6562 5.7405 5.0828 13.8585
2 24 4.3659 5.4964 14.1318 4.7928 5.5136 14.0469
2 24 1.3462 3.8568 14.7323 4.3659 5.4964 14.1318
2 24 1.3462 3.8568 14.7323 0 3.5813 15
2 24 5.7405 5.0828 13.8585 4.7928 5.5136 14.047
2 24 0 3.5813 15 -2.4448 2.8798 14.5138
2 24 -3.3762 3.9011 14.3286 -2.4448 2.8798 14.5138
2 24 -9.7782 3.8672 11.1601 -6.6024 2.8996 13.2825
2 24 -6.6024 2.8996 13.2825 -5.7855 3.9744 13.8285
2 24 -11.7936 5.477 8.8303 -12.0286 5.4714 8.4786
2 24 -14.7572 3.9247 1.2208 -15 3.9909 0
2 24 4.6454 5.858 15.1732 4.8324 6.1 15.87
2 24 15 5.5672 0 14.9556 5.5523 .2233
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Name/description too close/similar to 6510?
2025-08-30 22:00:47
Header Edits
description:
~Duplo Flower with 5 Leaves and 1 Top Stud - Petal
to
~Duplo Flower with 5 Rounded Petals and 1 Top Stud - Petal
Updated name to include "Rounded Petals" instead of "Leaves"
Rounded vertexes, rearranged content of subfiles.
