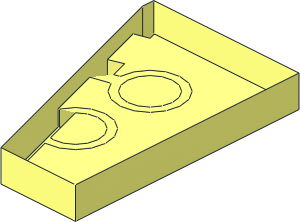

~Wing 2 x 3 Right without Studs and Top Face

File Header:

0 ~Wing  2 x  3 Right without Studs and Top Face
0 Name: s\43722s01.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-09-05 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2023-03-28 [Sirio] Removed top patternable faces; updated description; BFC CCW
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
0 !HISTORY 2025-09-05 [MagFors] added chamfered corner
