parts/32087a.dat

Unofficial File parts/32087a.dat

Warning: Model breaking changes to unofficial parts may occur anytime prior to release

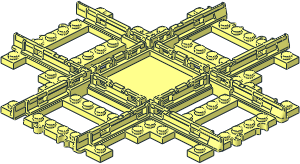

0 ~Train Track  9V Crossing - Plastic Part
0 Name: 32087a.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Train

0 !HISTORY 2026-04-26 [MagFors] Removed loose edges

Show file code:

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32087as03.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\32087as03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32087as03.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\32087as03.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32087as02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32087as02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\32087as02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32087as02.dat

1 16 67.5 0 50.5 -1 0 0 0 1 0 0 0 -1 s\32087as05.dat
1 16 -67.5 0 -50.5 1 0 0 0 1 0 0 0 1 s\32087as05.dat

1 16 67.5 0 -50.5 1 0 0 0 1 0 0 0 1 s\32087as06.dat
1 16 -67.5 0 50.5 -1 0 0 0 1 0 0 0 -1 s\32087as06.dat

1 16 50.5 0 -67.5 0 0 -1 0 1 0 1 0 0 s\32087as07.dat
1 16 -50.5 0 67.5 0 0 1 0 1 0 -1 0 0 s\32087as07.dat

1 16 50.5 0 67.5 0 0 -1 0 1 0 1 0 0 s\32087as08.dat
1 16 -50.5 0 -67.5 0 0 1 0 1 0 -1 0 0 s\32087as08.dat

4 16 50.5 -11 47.375 47.375 -4.75 47.375 60 -4.75 47.375 60 -11 47.375
4 16 50.5 -11 47.375 50.5 -16 47.375 47.375 -16 47.375 47.375 -4.75 47.375
4 16 47.375 -11 54.875 47.375 -11 60 47.375 -2.5 60 47.375 -4.75 47.375
4 16 47.375 -16 47.375 47.375 -16 54.875 47.375 -11 54.875 47.375 -4.75 47.375

4 16 -50.5 -11 -47.375 -47.375 -4.75 -47.375 -60 -4.75 -47.375 -60 -11 -47.375
4 16 -50.5 -11 -47.375 -50.5 -16 -47.375 -47.375 -16 -47.375 -47.375 -4.75 -47.375
4 16 -47.375 -11 -54.875 -47.375 -11 -60 -47.375 -2.5 -60 -47.375 -4.75 -47.375
4 16 -47.375 -16 -47.375 -47.375 -16 -54.875 -47.375 -11 -54.875 -47.375 -4.75 -47.375

4 16 -47.375 -11 50.5 -47.375 -4.75 47.375 -47.375 -2.5 60 -47.375 -11 60
4 16 -47.375 -11 50.5 -47.375 -16 50.5 -47.375 -16 47.375 -47.375 -4.75 47.375
4 16 -54.875 -11 47.375 -60 -11 47.375 -60 -4.75 47.375 -47.375 -4.75 47.375
4 16 -47.375 -16 47.375 -54.875 -16 47.375 -54.875 -11 47.375 -47.375 -4.75 47.375

4 16 47.375 -11 -50.5 47.375 -4.75 -47.375 47.375 -2.5 -60 47.375 -11 -60
4 16 47.375 -11 -50.5 47.375 -16 -50.5 47.375 -16 -47.375 47.375 -4.75 -47.375
4 16 54.875 -11 -47.375 60 -11 -47.375 60 -4.75 -47.375 47.375 -4.75 -47.375
4 16 47.375 -16 -47.375 54.875 -16 -47.375 54.875 -11 -47.375 47.375 -4.75 -47.375

0 BFC INVERTNEXT
1 16 0 -8 0 41 0 0 0 7 0 0 0 41 box5.dat

4 16 -36 2.5 8.5 -8.5 2.5 36 8.5 2.5 36 36 2.5 8.5
4 16 -36 2.5 -8.5 -36 2.5 8.5 36 2.5 8.5 36 2.5 -8.5
4 16 -36 2.5 -8.5 36 2.5 -8.5 8.5 2.5 -36 -8.5 2.5 -36

1 16 0 2.5 0 1 0 0 0 -1.375 0 0 0 1 stug4-3x3.dat

1 16 -150 0 -70 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -150 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 -150 0 70 0 0 1 0 1 0 -1 0 0 stud.dat

1 16 -90 0 -70 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -90 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 -90 0 70 0 0 1 0 1 0 -1 0 0 stud.dat

1 16 -70 0 -150 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -70 0 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 -70 0 80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 -70 0 150 0 0 1 0 1 0 -1 0 0 stud.dat

1 16 0 0 -150 0 0 1 0 1 0 -1 0 0 stug-4x1.dat
1 16 0 0 -90 0 0 1 0 1 0 -1 0 0 stug-4x1.dat
1 16 0 0 90 0 0 1 0 1 0 -1 0 0 stug-4x1.dat
1 16 0 0 150 0 0 1 0 1 0 -1 0 0 stug-4x1.dat

1 16 70 0 -150 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 70 0 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 70 0 80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 70 0 150 0 0 1 0 1 0 -1 0 0 stud.dat

1 16 90 0 -70 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 90 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 90 0 70 0 0 1 0 1 0 -1 0 0 stud.dat

1 16 150 0 -70 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 150 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 150 0 70 0 0 1 0 1 0 -1 0 0 stud.dat

Status

Needs 2 More Votes (N)

Current Votes:

No recorded votes

This part has the following automated holds from the Parts Tracker

Has Uncertified Subfiles

parts/s/32087as03.dat (Needs 1 More Vote)
parts/s/32087as05.dat (Needs 1 More Vote)
parts/s/32087as08.dat (Needs 1 More Vote)
parts/s/32087as06.dat (Needs 1 More Vote)
parts/s/32087as07.dat (Needs 1 More Vote)
parts/s/32087as02.dat (Needs 1 More Vote)
parts/s/32087as04.dat (Needs 1 More Vote)
parts/s/32087as01.dat (Needs 1 More Vote)
parts/s/32087as07.dat (Needs 1 More Vote)
parts/s/32087as05.dat (Needs 1 More Vote)
parts/s/32087as08.dat (Needs 1 More Vote)
parts/s/32087as06.dat (Needs 1 More Vote)
parts/s/32087as07.dat (Needs 1 More Vote)
parts/s/32087as05.dat (Needs 1 More Vote)

Part Dependencies

Official parents and subparts

Part Events

Max Martin Richter [MMR1988]

initially submitted the part.

2025-09-13 21:36:57

Max Martin Richter [MMR1988]

renamed the part.

2025-09-13 21:47:01

"parts/32087.dat" to "parts/32087a.dat"

Magnus Forsberg [MagFors]

posted a vote of Hold

2026-01-19 22:11:54

2 loose edge lines are not needed:
2 5 -47.375 -16 -47.375 -47.375 -4.75 -47.375
2 5 -60 -4.75 -47.375 -47.375 -4.75 -47.375

Magnus Forsberg [MagFors]

cancelled their vote.

2026-01-19 22:21:44

Magnus Forsberg [MagFors]

posted a vote of Certify

2026-01-19 22:21:47

Magnus Forsberg [MagFors]

posted a vote of Hold

2026-01-19 22:22:01

Edges

Magnus Forsberg [MagFors]

submitted a new version of the part (all votes reset).

2026-04-26 19:00:34

Max Martin Richter [MMR1988]

made the following comment.

2026-04-27 04:38:12

Missed your vote. Sorry.
Thank you for the fix!
