File Detail parts/u9174.dat

Unofficial File parts/u9174.dat

Part Attributes:

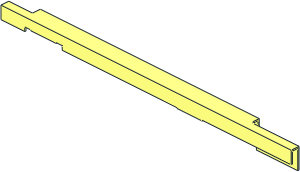

~Train Track 9V Crossing - Outer Right Metal Rail

File Header:

0 ~Train Track  9V Crossing - Outer Right Metal Rail
0 Name: u9174.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9174s01.dat

4 16 75 -12.75 3.125 72.5 -12.75 3.125 60 -16 3.125 147.5 -16 3.125
3 16 60 -16 3.125 72.5 -12.75 3.125 62.5 -12.75 3.125
3 16 60 -16 3.125 62.5 -12.75 3.125 60 -12.75 3.125

4 16 60 -15.5 2.625 62.5 -13 2.625 72.5 -13 2.625 147.5 -15.5 2.625
4 16 62.5 -13 2.625 60 -15.5 2.625 60 -12.75 2.625 62.5 -12.75 2.625

4 16 50.5 -16 -3.125 72.5 -12.75 -3.125 75 -12.75 -3.125 166.5 -16 -3.125
3 16 72.5 -12.75 -3.125 50.5 -16 -3.125 62.5 -12.75 -3.125
3 16 62.5 -12.75 -3.125 50.5 -16 -3.125 60 -12.75 -3.125
4 16 60 -11.25 -3.125 60 -12.75 -3.125 50.5 -16 -3.125 50.5 -11.25 -3.125

4 16 72.5 -13 -2.625 62.5 -13 -2.625 50.5 -15.5 -2.625 166.5 -15.5 -2.625
4 16 60 -12.75 -2.625 50.5 -15.5 -2.625 62.5 -13 -2.625 62.5 -12.75 -2.625
4 16 50.5 -11.25 -2.625 50.5 -15.5 -2.625 60 -12.75 -2.625 60 -11.25 -2.625

4 16 50.5 -15.5 -2.625 50.5 -15.5 0 60 -15.5 0 166.5 -15.5 -2.625
4 16 60 -15.5 2.625 147.5 -15.5 2.625 147.5 -15.5 1 60 -15.5 0
3 16 147.5 -15.5 1 147.5 -15.5 0 60 -15.5 0
3 16 60 -15.5 0 147.5 -15.5 0 150 -15.5 -.5
3 16 60 -15.5 0 150 -15.5 -.5 166.5 -15.5 -2.625
2 24 60 -15.5 2.625 147.5 -15.5 2.625
2 24 166.5 -15.5 -2.625 50.5 -15.5 -2.625

4 16 166.5 -16 -3.125 147.5 -16 0 60 -16 0 50.5 -16 -3.125
3 16 60 -16 0 50.5 -16 0 50.5 -16 -3.125
3 16 147.5 -16 0 147.5 -16 1 60 -16 0
4 16 60 -16 3.125 60 -16 0 147.5 -16 1 147.5 -16 3.125
2 24 50.5 -16 -3.125 166.5 -16 -3.125
2 24 147.5 -16 3.125 60 -16 3.125

1 16 55.25 -12 -2.875 0 0 4.75 0 .75 0 .25 0 0 box2-5.dat
4 16 50.5 -11.25 -2.625 50.5 -11.25 -3.125 50.5 -16 -3.125 50.5 -15.5 -2.625
4 16 50.5 -15.5 -2.625 50.5 -16 -3.125 50.5 -16 0 50.5 -15.5 0
2 24 50.5 -16 -3.125 50.5 -11.25 -3.125
2 24 50.5 -15.5 -2.625 50.5 -11.25 -2.625
2 24 50.5 -16 -3.125 50.5 -16 0
2 24 50.5 -15.5 0 50.5 -15.5 -2.625
1 16 55.25 -15.75 0 4.75 0 0 0 0 .25 0 -1 0 rect.dat
4 16 60 -16 0 60 -16 3.125 60 -15.5 2.625 60 -15.5 0
4 16 60 -12.75 2.625 60 -15.5 2.625 60 -16 3.125 60 -12.75 3.125
2 24 60 -15.5 2.625 60 -15.5 0
2 24 60 -16 3.125 60 -16 0
2 24 60 -16 3.125 60 -12.75 3.125
2 24 60 -15.5 2.625 60 -12.75 2.625
1 16 61.25 -12.75 2.875 0 0 1.25 0 -1 0 .25 0 0 rect.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u9174s01.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2025-09-13 21:40:59
