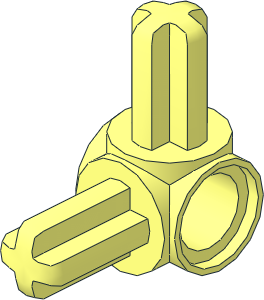

Technic Axle and Pin Connector Hub with 2 Axles at 90 Degrees
File Header:
0 Technic Axle and Pin Connector Hub with 2 Axles at 90 Degrees 0 Name: 10197.dat 0 Author: Rolf Osterthun [Rolf] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03 0 !HISTORY 2018-02-08 [arezey] Simplified using the new primitive axleconnect.dat 0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02 0 !HISTORY 2025-10-04 [MagFors] Shaped axleend
Show contents
1 16 -10 0 0 0 20 0 0 0 -9 -9 0 0 1-4cylo.dat 1 16 0 0 0 9 0.707 0 0 0 -9 -9 0.707 0 1-8edge.dat 1 16 0 0 0 -9 0.707 0 0 0 -9 -9 -0.707 0 1-8edge.dat 1 16 0 0 0 -9 -0.707 0 -9 0.707 0 0 0 -9 1-8edge.dat 1 16 0 0 0 9 -0.707 0 -9 -0.707 0 0 0 -9 1-8edge.dat 1 16 0 0 0 0 0 9 -9 0.707 0 -9 -0.707 0 1-8edge.dat 1 16 0 0 0 0 0 -9 -9 -0.707 0 -9 0.707 0 1-8edge.dat 1 16 0 0 0 0 -1 0 1 0 0 0 0 1 axleconnect.dat 1 16 0 0 0 0 1 0 0 0 1 1 0 0 axleconnect.dat 1 16 0 0 -9 9 0 0 0 0 -9 0 9 0 1-8cyls.dat 1 16 0 0 -9 -9 0 0 0 0 -9 0 9 0 1-8cyls.dat 1 16 0 0 -9 0 0 -9 -9 0 0 0 9 0 1-8cyls.dat 1 16 0 0 -9 0 0 9 -9 0 0 0 9 0 1-8cyls.dat 1 16 0 -9 0 9 0 0 0 9 0 0 0 -9 1-8cyls.dat 1 16 0 -9 0 -9 0 0 0 9 0 0 0 -9 1-8cyls.dat 1 16 0 -9 0 0 0 -9 0 9 0 -9 0 0 1-8cyls.dat 1 16 0 -9 0 0 0 9 0 9 0 -9 0 0 1-8cyls.dat 1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4cyli.dat 1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4cyli.dat 1 16 0 0 0 0 -1 0 1 0 0 0 0 1 connhole.dat 1 16 10 0 0 0 -20 0 9 0 0 0 0 9 1-4cylo.dat 1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4chrd.dat 1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4chrd.dat 1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4edge.dat 1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4edge.dat 1 16 0 -10 0 1 0 0 0 1 0 0 0 1 axleend20.dat 1 16 0 0 -10 -1 0 0 0 0 1 0 1 0 axleend20.dat
