Unofficial File parts/8131.dat
Part Attributes:
File Header:

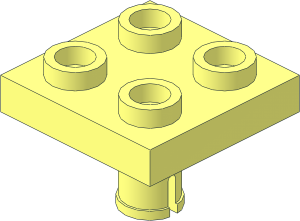

0 Plate 2 x 2 with Pin Type 3 (Flattened Pin Support)
0 Name: 8131.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2476as01.dat
1 16 0 8 0 1 0 0 0 -1 0 0 0 1 connect2.dat
0 BFC INVERTNEXT
1 16 0 4 0 4 0 0 0 4 0 0 0 4 4-4cyli.dat
1 16 0 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 8 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 8 0 6 0 0 0 -1 0 0 0 6 1-8tndis.dat
1 16 0 8 0 6 0 0 0 -1 0 0 0 -6 1-8tndis.dat
1 16 0 8 0 -6 0 0 0 -1 0 0 0 6 1-8tndis.dat
1 16 0 8 0 -6 0 0 0 -1 0 0 0 -6 1-8tndis.dat
1 16 0 8 0 0 0 -2 0 -1 0 2 0 0 1-8ring3.dat
1 16 0 8 0 0 0 -2 0 -1 0 -2 0 0 1-8ring3.dat
1 16 0 8 0 0 0 2 0 -1 0 2 0 0 1-8ring3.dat
1 16 0 8 0 0 0 2 0 -1 0 -2 0 0 1-8ring3.dat
4 16 5.6568 8 -5.6568 4.2426 8 -4.2426 6 8 -4.2426 6.5 8 -4.395
4 16 -5.6568 8 -5.6568 -6.5 8 -4.395 -6 8 -4.2426 -4.2426 8 -4.2426
4 16 -6 8 4.2426 -6.5 8 4.395 -5.6568 8 5.6568 -4.2426 8 4.2426
4 16 6 8 4.2426 4.2426 8 4.2426 5.6568 8 5.6568 6.5 8 4.395
4 16 6 8 -4.2426 6 8 4.2426 6.5 8 4.395 6.5 8 -4.395
4 16 -6 8 -4.2426 -6.5 8 -4.395 -6.5 8 4.395 -6 8 4.2426
1 16 0 4 0 0 0 -8 0 4 0 8 0 0 1-8cylo.dat
1 16 0 4 0 0 0 -8 0 4 0 -8 0 0 1-8cylo.dat
1 16 0 4 0 0 0 8 0 4 0 8 0 0 1-8cylo.dat
1 16 0 4 0 0 0 8 0 4 0 -8 0 0 1-8cylo.dat
4 16 -6.5 8 4.395 -6.5 4 4.395 -5.6568 4 5.6568 -5.6568 8 5.6568
4 16 -5.6568 4 -5.6568 -6.5 4 -4.395 -6.5 8 -4.395 -5.6568 8 -5.6568
4 16 6.5 4 -4.395 5.6568 4 -5.6568 5.6568 8 -5.6568 6.5 8 -4.395
4 16 6.5 4 4.395 6.5 8 4.395 5.6568 8 5.6568 5.6568 4 5.6568
2 24 6.5 4 4.395 6.5 8 4.395
2 24 6.5 8 -4.395 6.5 4 -4.395
2 24 -6.5 4 4.395 -6.5 8 4.395
2 24 -6.5 8 -4.395 -6.5 4 -4.395
2 24 -6.5 4 4.395 -5.6568 4 5.6568
2 24 -6.5 8 4.395 -5.6568 8 5.6568
2 24 5.6568 8 5.6568 6.5 8 4.395
2 24 5.6568 4 5.6568 6.5 4 4.395
2 24 5.6568 8 -5.6568 6.5 8 -4.395
2 24 5.6568 4 -5.6568 6.5 4 -4.395
2 24 -6.5 4 -4.395 -5.6568 4 -5.6568
2 24 -6.5 8 -4.395 -5.6568 8 -5.6568
2 24 -6.5 4 -4.395 -6.5 4 4.395
2 24 -6.5 8 -4.395 -6.5 8 4.395
2 24 6.5 8 -4.395 6.5 8 4.395
2 24 6.5 4 -4.395 6.5 4 4.395
4 16 6.5 4 4.395 6.5 4 -4.395 6.5 8 -4.395 6.5 8 4.395
4 16 -6.5 8 -4.395 -6.5 4 -4.395 -6.5 4 4.395 -6.5 8 4.395
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
This part has the following warnings
- Number in description may need a leading space
Current Votes:
None
Official parents and subparts
Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
corrected the supprt ring geometry along the way
