Unofficial File parts/u9536.dat
Part Attributes:
File Header:

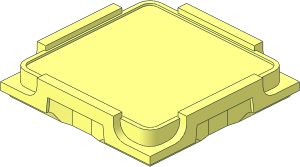

0 Tile 2 x 2 SMART Play Tag Bottom
0 Name: u9536.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-31 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-01-31 [Philo] File preparation for LDraw Parts Tracker
Show contents
1 16 0 3 0 1 0 0 0 -1.25 0 0 0 1 stud4.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9536s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\u9536s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\u9536s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\u9536s01.dat
4 16 -17.2 1.7 -15.2 15.2 1.7 -17.2 17.2 1.7 15.2 -15.2 1.7 17.2
0 BFC INVERTNEXT
1 16 -2 5.5 0 0 -14 0 2.5 0 0 0 0 16 box3u2p.dat
0 BFC INVERTNEXT
1 16 2 5.5 0 0 14 0 2.5 0 0 0 0 16 box3u2p.dat
1 16 0 8 -16 2 0 0 0 -5 0 0 0 2 2-4cylo.dat
1 16 0 8 -16 2 0 0 0 -1 0 0 0 2 2-4chrd.dat
4 16 -2 8 -16 2 8 -16 2.6 8 -18.2 -2.6 8 -18.2
4 16 -16 8 -16 -2 8 -16 -2.6 8 -18.2 -18.7 8 -18.7
4 16 2.6 8 -18.2 2 8 -16 16 8 -16 18.7 8 -18.7
1 16 0 8 16 2 0 0 0 -5 0 0 0 -2 2-4cylo.dat
1 16 0 8 16 2 0 0 0 -1 0 0 0 -2 2-4chrd.dat
4 16 2.6 8 18.2 2 8 16 -2 8 16 -2.6 8 18.2
4 16 -2.6 8 18.2 -2 8 16 -16 8 16 -18.7 8 18.7
4 16 16 8 16 2 8 16 2.6 8 18.2 18.7 8 18.7
4 16 16 8 -16 16 8 16 18.2 8 2.6 18.2 8 -2.6
3 16 16 8 -16 18.2 8 -2.6 18.7 8 -18.7
3 16 18.7 8 18.7 18.2 8 2.6 16 8 16
4 16 -18.2 8 2.6 -16 8 16 -16 8 -16 -18.2 8 -2.6
3 16 -18.2 8 -2.6 -16 8 -16 -18.7 8 -18.7
3 16 -18.2 8 2.6 -18.7 8 18.7 -16 8 16
4 16 16 3 16 16 3 -16 -16 3 -16 -16 3 16
2 24 -16 3 16 16 3 16
2 24 16 3 -16 -16 3 -16
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-06 07:35:54
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
