Unofficial File parts/s/70943s02.dat
File Header:

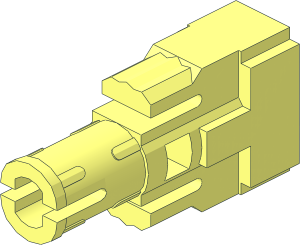

0 ~Figure Leg Mecha Pin with Friction
0 Name: s\70943s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 0 -1 0 1 0 connect10.dat
1 16 0 0 -2 0 0 6 6 0 0 0 1 0 4-4edge.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\70943s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\70943s03.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\70943s03.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\70943s03.dat
0 // Mirror Horizontal
1 16 5.85 0 13.5 0 1.65 0 3 0 0 0 0 -4.5 box4-3p.dat
4 16 -7.5 10 28 -7.5 3 18 -7.5 -3 18 -7.5 -10 28
4 16 7.5 10 28 7.5 -10 28 7.5 -3 18 7.5 3 18
1 16 -5.85 0 13.5 0 -1.65 0 3 0 0 0 0 -4.5 box4-3p.dat
0 // Mirror Vertical
1 16 0 -6 3.75 -5 0 0 0 1 0 0 0 -5.75 rect3.dat
0 BFC INVERTNEXT
1 16 5 -7 9.5 0 -10 0 1 0 0 0 0 1 2-4cylo.dat
4 16 -5 -8 0 -5 -8 9.5 5 -8 9.5 5 -8 0
2 24 -5 -8 0 5 -8 0
3 16 -5 -8 0 5 -8 0 0 -12 0
4 16 -5 -12 10.5 5 -12 10.5 5 -12 18 -5 -12 18
4 16 -5.5 -12 28 -5 -12 18 5 -12 18 5.5 -12 28
1 16 0 -3 4.5 5.85 0 0 0 -1 0 0 0 -2.5 rect.dat
4 16 5.85 -3 2 6.2784 -1.6822 2 -6.2784 -1.6822 2 -5.85 -3 2
4 16 6.2784 -1.6822 2 6.5 0 2 -6.5 0 2 -6.2784 -1.6822 2
4 16 6.2784 -1.6822 7 -6.2784 -1.6822 7 -6.5 0 7 6.5 0 7
4 16 -6.2784 -1.6822 7 6.2784 -1.6822 7 5.85 -3 7 -5.85 -3 7
1 16 0 6 3.75 -5 0 0 0 -1 0 0 0 -5.75 rect3.dat
0 BFC INVERTNEXT
1 16 5 7 9.5 0 -10 0 -1 0 0 0 0 1 2-4cylo.dat
4 16 5 8 9.5 -5 8 9.5 -5 8 0 5 8 0
2 24 5 8 0 -5 8 0
3 16 5 8 0 -5 8 0 0 12 0
4 16 5 12 18 5 12 10.5 -5 12 10.5 -5 12 18
4 16 5 12 18 -5 12 18 -5.5 12 28 5.5 12 28
1 16 0 3 4.5 5.85 0 0 0 1 0 0 0 -2.5 rect.dat
4 16 -6.2784 1.6822 2 6.2784 1.6822 2 5.85 3 2 -5.85 3 2
4 16 -6.5 0 2 6.5 0 2 6.2784 1.6822 2 -6.2784 1.6822 2
4 16 -6.5 0 7 -6.2784 1.6822 7 6.2784 1.6822 7 6.5 0 7
4 16 5.85 3 7 6.2784 1.6822 7 -6.2784 1.6822 7 -5.85 3 7
4 16 -5.5 -12 28 5.5 -12 28 5.5 -10 28 -5.5 -10 28
4 16 -7.5 10 28 -7.5 -10 28 -5.5 -10 28 -5.5 10 28
4 16 -5.5 12 28 -5.5 10 28 5.5 10 28 5.5 12 28
4 16 7.5 -10 28 7.5 10 28 5.5 10 28 5.5 -10 28
4 16 -5.5 10 28 -5.5 -10 28 5.5 -10 28 5.5 10 28
2 24 7.5 10 28 7.5 -10 28
2 24 5.5 -12 28 -5.5 -12 28
2 24 -7.5 -10 28 -7.5 10 28
2 24 -5.5 12 28 5.5 12 28
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-06 19:14:19
2026-03-06 19:38:40
2026-03-06 19:40:48
these third-party 3D sources cant be reliably used
2026-03-06 19:44:25
The game is developed by lego
Also the models are similar to the ldd ones
Also the models are similar to the ldd ones
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
