Unofficial File parts/s/7246s01.dat
File Header:

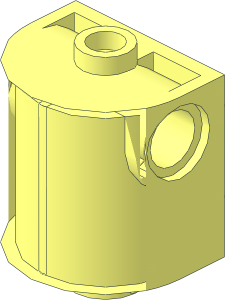

0 ~Brick Round 2 x 2 x 2 Half Cylinder Extended Robot Body with 4 Studs on Back without Front
0 Name: s\7246s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7246s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\7246s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 20 12 1 0 0 0 0 1 0 -1 0 stug2-2x2.dat
1 16 0 20 12 0 0 20 20 0 0 0 -1 0 recte4.dat
1 16 0 10 12 0 0 2 8 0 0 0 -1 0 recte4.dat
0 BFC INVERTNEXT
1 16 2 10 0 0 -4 0 8 0 0 0 0 -8 2-4cylo.dat
4 16 20 0 12 2 2 12 -2 2 12 -20 0 12
4 16 -2 18 12 2 18 12 20 40 12 -20 40 12
1 16 0 2 6 0 0 2 0 -1 0 6 0 0 rect2p.dat
1 16 0 18 6 0 0 2 0 1 0 6 0 0 rect2p.dat
1 16 0 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 17.1429 11 0 0 -34.2857 0 10 0 0 0 0 12.5 1-8cylo.dat
1 16 17.1429 11 0 0 -34.2857 0 10 0 0 0 0 -9 1-4cyli.dat
2 24 2.6013 20.239 -3.4443 2.5 20.4476 -2.5
2 24 5.543 20.4927 -2.296 6 21 0
2 24 5.213 20.3833 -2.791 2.5 20.4476 -2.5
2 24 5.213 20.3833 -2.791 5.543 20.4927 -2.296
2 24 -2.1852 20.239 -3.4443 -2.5 20.4476 -2.5
2 24 -4 20.5581 -2 -5.602 20.5581 -2
2 24 -4 20.5581 -2 -2.5 20.4476 -2.5
2 24 -5.602 20.5581 -2 -6 21 0
2 24 2.791 18.9256 -5.213 2.6013 20.239 -3.4443
2 24 2.296 18.6806 -5.543 2.791 18.9256 -5.213
2 24 0 18.3412 -6 2.296 18.6806 -5.543
2 24 -2 18.6368 -5.602 0 18.3412 -6
2 24 -2 19.8264 -4 -2.1852 20.239 -3.4443
2 24 -2 18.6368 -5.602 -2 19.8264 -4
2 24 -2.745 20.239 4.7838 -2.791 20.0095 5.213
2 24 -2.5 20.6023 2.5 -2.745 20.239 4.7838
2 24 -5.543 20.6348 2.296 -6 21 0
2 24 -2.5 20.6023 2.5 -5.213 20.556 2.791
2 24 -2.791 20.0095 5.213 -2.296 19.8331 5.543
2 24 -5.543 20.6348 2.296 -5.213 20.556 2.791
2 24 -2.296 19.8331 5.543 0 19.5887 6
2 24 0 19.5887 6 2 19.8015 5.602
2 24 2 20.3637 4 2.5 20.6023 2.5
2 24 2 19.8015 5.602 2 20.239 4.7838
2 24 2 20.3637 4 2 20.239 4.7838
2 24 5.602 20.6818 2 4 20.6818 2
2 24 2.5 20.6023 2.5 4 20.6818 2
2 24 5.602 20.6818 2 6 21 0
1 16 0 48 0 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
2 24 14.208 3 -9 -14.208 3 -9
4 16 -14.208 3 -9 -17.1428 11 -9 17.1429 11 -9 14.208 3 -9
0 BFC INVERTNEXT
1 16 0 48 0 6 0 0 0 -25 0 0 0 6 4-4cyli.dat
1 16 0 48 0 0 0 8 0 -27 0 -8 0 0 4-4cyli.dat
1 16 0 48 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 40 0 0 0 1 0 -21.7 0 1 0 0 axl3hol8.dat
1 16 0 40 0 0 0 1 0 1 0 1 0 0 axl3hol9.dat
1 16 0 40 0 0 0 1 0 -1 0 1 0 0 axl3hol3.dat
1 16 0 40 0 0 0 1 0 -1 0 1 0 0 axl3ho10.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 -6 2-4edge.dat
1 16 0 48 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
4 16 -20 0 12 -4.2426 0 8.6 4.2426 0 8.6 20 0 12
4 16 4.2426 0 8.6 -4.2426 0 8.6 -4.2426 0 4.2426 4.2426 0 4.2426
4 16 6 0 0 4.2426 0 4.2426 -4.2426 0 4.2426 -6 0 0
3 16 4.2426 0 0 -4.2426 0 0 0 0 -20
4 16 3.0616 40 7.3912 -3.0616 40 7.3912 -3.0616 40 8.6 3.0616 40 8.6
4 16 20 40 12 3.0616 40 8.6 -3.0616 40 8.6 -20 40 12
3 16 -15.8383 3 -6.5606 15.8383 3 -6.5606 0 3 -17.1429
4 16 -1 39.8 -7.3 1 39.8 -7.3 1 39.8 -17.3 -1 39.8 -17.3
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
This part has the following warnings
- Number in description may need a leading space
Current Votes:
None
Official parents and subparts
Part Events:
2026-05-03 06:03:29
