Unofficial File parts/s/30361as01.dat
File Header:

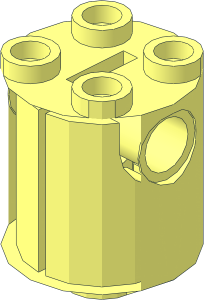

0 ~Cylinder 2 x 2 x 2 Robot Body without Front Face
0 Name: s\30361as01.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-08-01 [PTadmin] Official Update 2003-02
0 !HISTORY 2007-08-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2011-05-19 [Philo] BFCed, more primitives, minor improvements
0 !HISTORY 2011-06-10 [Brickaneer] More primitives, condlines added.
0 !HISTORY 2011-06-14 [Brickaneer] Restored with some improvements.
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2012-05-14 [TK-949] Widened Front Face
0 !HISTORY 2012-05-15 [PTadmin] Renamed from s\30361s01
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2024-03-24 [KnightOfTarenta] Using common sub-file
Show contents
0 // Common Geometry
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30361ds03.dat
0 // Back Face
1 16 0 30 0 0 0 20 0 -40 0 20 0 0 1-8cyli.dat
1 16 0 30 0 0 0 -20 0 -40 0 20 0 0 1-8cyli.dat
3 16 -18.25 0 8 -14.14 -10 14.14 -18.48 1.741 7.654
3 16 18.48 1.741 7.654 14.14 -10 14.14 18.25 0 8
4 16 -18.48 -1.741 7.654 -18.48 -10 7.654 -14.14 -10 14.14 -18.25 0 8
4 16 -18.48 1.741 7.654 -14.14 -10 14.14 -14.14 30 14.14 -18.48 30 7.654
4 16 18.25 0 8 14.14 -10 14.14 18.48 -10 7.654 18.48 -1.741 7.654
4 16 18.48 30 7.654 14.14 30 14.14 14.14 -10 14.14 18.48 1.741 7.654
5 24 -14.14 -10 14.14 -14.14 30 14.14 -18.48 30 7.654 -7.654 -10 18.478
5 24 14.14 -10 14.14 14.14 30 14.14 18.48 30 7.654 7.654 -10 18.478
0 // Center Geometry
1 16 0 1.637 7.714 0 0 2 1.4395 1 0 -.2865 0 0 rect2p.dat
1 16 0 1.637 -7.714 0 0 2 -1.4395 1 0 -0.2865 0 0 rect2p.dat
1 16 0 -4.902 -8 0 0 -2 5.0985 0 0 0 -1 0 rect2p.dat
1 16 0 -4.902 8 0 0 -2 5.0985 0 0 0 1 0 rect2p.dat
3 16 0 5.212 6 2 3.0765 7.4275 -1.586 5.685 5.685
3 16 0 5.212 -6 -2 3.0765 -7.4275 1.586 5.685 -5.685
3 16 2 -4.2426 -4.2426 2 -2.2962 -5.5434 2 -10 -8
3 16 2 -10 -8 2 -2.2962 -5.5434 2 0 -6
3 16 2 -10 -8 2 0 -6 2 5.74 -5.602
3 16 2 5.74 -5.602 2 0 -6 2 2.2962 -5.5434
3 16 2 6.942 -5.602 2 4.2426 -4.2426 2 5.5434 -2.2962
3 16 2 5.74 5.602 2 9.059 0 2 5.685 5.685
3 16 2 3.0765 7.4275 2 8.369 -3.467 2 5.5434 2.2962
3 16 2 3.0765 7.4275 2 5.5434 2.2962 2 4.2426 4.2426
3 16 2 4.2426 4.2426 2 2.2962 5.5434 2 3.0765 7.4275
3 16 2 3.0765 7.4275 2 2.2962 5.5434 2 0 6
3 16 2 5.5434 2.2962 2 8.369 -3.467 2 6 0
3 16 2 -10 -8 2 -6 0 2 -5.5434 -2.2962
3 16 2 -10 -8 2 -5.5434 -2.2962 2 -4.2426 -4.2426
3 16 2 -10 8 2 -4.2426 4.2426 2 -5.5434 2.2962
3 16 2 5.685 -5.685 2 3.0765 -7.4275 2 5.74 -5.602
3 16 -2 -4.2426 4.2426 -2 -2.2962 5.5434 -2 -10 8
3 16 -2 -10 8 -2 -2.2962 5.5434 -2 0 6
3 16 -2 -10 8 -2 0 6 -2 5.74 5.602
3 16 -2 5.74 5.602 -2 0 6 -2 2.2962 5.5434
3 16 -2 .1965 -8 -2 2.2962 -5.5434 -2 -10 -8
3 16 -2 -10 -8 -2 0 -6 -2 -2.2962 -5.5434
3 16 -2 -4.2426 -4.2426 -2 -5.5434 -2.2962 -2 -10 -8
3 16 -2 -10 -8 -2 -5.5434 -2.2962 -2 -6 0
3 16 -2 -10 8 -2 -5.5434 2.2962 -2 -4.2426 4.2426
3 16 -2 5.685 5.685 -2 3.0765 7.4275 -2 5.74 5.602
3 16 -2 5.74 -5.602 -2 9.059 0 -2 5.685 -5.685
3 16 -2 -10 -8 -2 -2.2962 -5.5434 -2 -4.2426 -4.2426
3 16 -2.296 6.982 5.543 -2 6.942 5.602 -4.243 7.851 4.243
3 16 -4.761 8.369 -3.467 -2 8.369 -3.467 -4.243 7.851 -4.243
3 16 0 5.212 6 -1.586 5.685 5.685 0 38 6
3 16 2 6.942 5.602 2 5.74 5.602 1.586 5.685 5.685
3 16 0 5.212 -6 1.586 5.685 -5.685 0 38 -6
3 16 -2 6.942 -5.602 -2 5.74 -5.602 -1.586 5.685 -5.685
3 16 2 5.74 -5.602 1.586 5.685 -5.685 2 5.685 -5.685
3 16 4.761 8.369 3.467 2 8.369 3.467 4.243 7.851 4.243
3 16 2.296 6.982 -5.543 2 6.942 -5.602 4.243 7.851 -4.243
3 16 6 9.059 0 2 9.059 0 5.543 8.602 2.296
3 16 4.761 8.369 -3.467 2 8.369 -3.467 5.543 8.602 -2.296
3 16 1.586 5.685 5.685 2 5.74 5.602 2 5.685 5.685
3 16 -5.543 8.602 2.296 -5.5434 38 2.2962 -4.761 8.369 3.467
3 16 -4.243 7.851 -4.243 -4.2426 38 -4.2426 -4.761 8.369 -3.467
3 16 5.543 8.602 -2.296 5.5434 38 -2.2962 4.761 8.369 -3.467
3 16 4.243 7.851 4.243 4.2426 38 4.2426 4.761 8.369 3.467
3 16 -4.761 8.369 3.467 -2 8.369 3.467 -5.543 8.602 2.296
3 16 -6 9.059 0 -2 9.059 0 -5.543 8.602 -2.296
3 16 -2 5.74 5.602 -1.586 5.685 5.685 -2 5.685 5.685
3 16 -1.586 5.685 -5.685 -2 5.74 -5.602 -2 5.685 -5.685
4 16 1.586 5.685 5.685 2 5.685 5.685 2 3.0765 7.4275 0 5.212 6
4 16 -1.586 5.685 5.685 2 3.0765 7.4275 -2 3.0765 7.4275 -2 5.685 5.685
4 16 -1.586 5.685 -5.685 -2 5.685 -5.685 -2 3.0765 -7.4275 0 5.212 -6
4 16 2 6.942 -5.602 2 5.74 -5.602 2 2.2962 -5.5434 2 4.2426 -4.2426
4 16 2 6.942 5.602 2 8.369 3.467 2 9.059 0 2 5.74 5.602
4 16 2 5.685 5.685 2 9.059 0 2 8.369 -3.467 2 3.0765 7.4275
4 16 2 3.0765 7.4275 2 0 6 2 -2.2962 5.5434 2 .1965 8
4 16 2 6 0 2 8.369 -3.467 2 6.942 -5.602 2 5.5434 -2.2962
4 16 2 -5.5434 2.2962 2 -6 0 2 -10 -8 2 -10 8
4 16 2 .1965 8 2 -2.2962 5.5434 2 -4.2426 4.2426 2 -10 8
4 16 2 5.74 -5.602 2 3.0765 -7.4275 2 .1965 -8 2 -10 -8
4 16 -2 6.942 5.602 -2 5.74 5.602 -2 2.2962 5.5434 -2 4.2426 4.2426
4 16 -2 6.942 5.602 -2 4.2426 4.2426 -2 5.5434 2.2962 -2 8.369 3.467
4 16 -2 8.369 3.467 -2 5.5434 2.2962 -2 6 0 -2 9.059 0
4 16 -2 9.059 0 -2 6 0 -2 5.5434 -2.2962 -2 5.685 -5.685
4 16 -2 5.685 -5.685 -2 5.5434 -2.2962 -2 4.2426 -4.2426 -2 3.0765 -7.4275
4 16 -2 3.0765 -7.4275 -2 4.2426 -4.2426 -2 2.2962 -5.5434 -2 .1965 -8
4 16 -2 -10 -8 -2 -6 0 -2 -5.5434 2.2962 -2 -10 8
4 16 -2 5.74 5.602 -2 3.0765 7.4275 -2 .1965 8 -2 -10 8
4 16 -2 6.942 -5.602 -2 8.369 -3.467 -2 9.059 0 -2 5.74 -5.602
4 16 -4.243 7.851 4.243 -2 6.942 5.602 -2 8.369 3.467 -4.761 8.369 3.467
4 16 -4.243 7.851 -4.243 -2 8.369 -3.467 -2 6.942 -5.602 -2.296 6.982 -5.543
4 16 0 38 6 -1.586 5.685 5.685 -2 5.74 5.602 -2 6.942 5.602
4 16 -2.296 6.982 5.543 -2.2962 38 5.5434 0 38 6 -2 6.942 5.602
4 16 2.2962 38 5.5434 2.296 6.982 5.543 2 6.942 5.602 0 38 6
4 16 0 38 6 2 6.942 5.602 1.586 5.685 5.685 0 5.212 6
4 16 0 38 -6 1.586 5.685 -5.685 2 5.74 -5.602 2 6.942 -5.602
4 16 2.296 6.982 -5.543 2.2962 38 -5.5434 0 38 -6 2 6.942 -5.602
4 16 -2.2962 38 -5.5434 -2.296 6.982 -5.543 -2 6.942 -5.602 0 38 -6
4 16 0 38 -6 -2 6.942 -5.602 -1.586 5.685 -5.685 0 5.212 -6
4 16 1.586 5.685 -5.685 -2 3.0765 -7.4275 2 3.0765 -7.4275 2 5.685 -5.685
4 16 4.243 7.851 4.243 2 8.369 3.467 2 6.942 5.602 2.296 6.982 5.543
4 16 4.243 7.851 -4.243 2 6.942 -5.602 2 8.369 -3.467 4.761 8.369 -3.467
4 16 5.543 8.602 2.296 2 9.059 0 2 8.369 3.467 4.761 8.369 3.467
4 16 5.543 8.602 -2.296 2 8.369 -3.467 2 9.059 0 6 9.059 0
4 16 -4.2426 38 4.2426 -2.2962 38 5.5434 -2.296 6.982 5.543 -4.243 7.851 4.243
4 16 -4.761 8.369 3.467 -5.5434 38 2.2962 -4.2426 38 4.2426 -4.243 7.851 4.243
4 16 -6 38 0 -5.5434 38 2.2962 -5.543 8.602 2.296 -6 9.059 0
4 16 -5.543 8.602 -2.296 -5.5434 38 -2.2962 -6 38 0 -6 9.059 0
4 16 -4.761 8.369 -3.467 -4.2426 38 -4.2426 -5.5434 38 -2.2962 -5.543 8.602 -2.296
4 16 -2.296 6.982 -5.543 -2.2962 38 -5.5434 -4.2426 38 -4.2426 -4.243 7.851 -4.243
4 16 4.2426 38 -4.2426 2.2962 38 -5.5434 2.296 6.982 -5.543 4.243 7.851 -4.243
4 16 4.761 8.369 -3.467 5.5434 38 -2.2962 4.2426 38 -4.2426 4.243 7.851 -4.243
4 16 6 38 0 5.5434 38 -2.2962 5.543 8.602 -2.296 6 9.059 0
4 16 5.543 8.602 2.296 5.5434 38 2.2962 6 38 0 6 9.059 0
4 16 4.761 8.369 3.467 4.2426 38 4.2426 5.5434 38 2.2962 5.543 8.602 2.296
4 16 2.296 6.982 5.543 2.2962 38 5.5434 4.2426 38 4.2426 4.243 7.851 4.243
4 16 -5.543 8.602 2.296 -2 8.369 3.467 -2 9.059 0 -6 9.059 0
4 16 -5.543 8.602 -2.296 -2 9.059 0 -2 8.369 -3.467 -4.761 8.369 -3.467
0 // Edge Lines
2 24 -2 3.0765 -7.4275 -2 5.685 -5.685
2 24 -1.586 5.685 -5.685 0 5.212 -6
2 24 0 5.212 -6 1.586 5.685 -5.685
2 24 2 3.0765 7.4275 2 5.685 5.685
2 24 1.586 5.685 5.685 0 5.212 6
2 24 0 5.212 6 -1.586 5.685 5.685
2 24 -2 5.685 5.685 -2 3.0765 7.4275
2 24 2 5.74 -5.602 2 6.942 -5.602
2 24 2 8.369 3.467 2 6.942 5.602
2 24 2 9.059 0 2 8.369 3.467
2 24 2 6.942 5.602 2 5.74 5.602
2 24 2 5.74 5.602 2 5.685 5.685
2 24 2 8.369 -3.467 2 9.059 0
2 24 2 6.942 -5.602 2 8.369 -3.467
2 24 2 5.685 -5.685 2 3.0765 -7.4275
2 24 2 5.685 -5.685 2 5.74 -5.602
2 24 -2 5.74 5.602 -2 6.942 5.602
2 24 -2 6.942 5.602 -2 8.369 3.467
2 24 -2 8.369 3.467 -2 9.059 0
2 24 -2 5.74 5.602 -2 5.685 5.685
2 24 -2 8.369 -3.467 -2 6.942 -5.602
2 24 -2 9.059 0 -2 8.369 -3.467
2 24 -2 6.942 -5.602 -2 5.74 -5.602
2 24 -2 5.685 -5.685 -2 5.74 -5.602
2 24 -2 6.942 5.602 -2.296 6.982 5.543
2 24 -2.296 6.982 5.543 -4.243 7.851 4.243
2 24 -4.243 7.851 4.243 -4.761 8.369 3.467
2 24 -4.761 8.369 -3.467 -4.243 7.851 -4.243
2 24 -2.296 6.982 -5.543 -2 6.942 -5.602
2 24 -4.243 7.851 -4.243 -2.296 6.982 -5.543
2 24 5.5434 38 -2.2962 4.2426 38 -4.2426
2 24 6 38 0 5.5434 38 -2.2962
2 24 5.5434 38 2.2962 6 38 0
2 24 4.2426 38 4.2426 5.5434 38 2.2962
2 24 2.2962 38 5.5434 4.2426 38 4.2426
2 24 -5.5434 38 2.2962 -4.2426 38 4.2426
2 24 -6 38 0 -5.5434 38 2.2962
2 24 -5.5434 38 -2.2962 -6 38 0
2 24 -4.2426 38 -4.2426 -5.5434 38 -2.2962
2 24 -2.2962 38 -5.5434 -4.2426 38 -4.2426
2 24 0 38 -6 -2.2962 38 -5.5434
2 24 2.2962 38 -5.5434 0 38 -6
2 24 4.2426 38 -4.2426 2.2962 38 -5.5434
2 24 -4.2426 38 4.2426 -2.2962 38 5.5434
2 24 -2.2962 38 5.5434 0 38 6
2 24 0 38 6 2.2962 38 5.5434
2 24 -1.586 5.685 5.685 -2 5.74 5.602
2 24 2 6.942 5.602 2.296 6.982 5.543
2 24 1.586 5.685 5.685 2 5.74 5.602
2 24 2 5.74 -5.602 1.586 5.685 -5.685
2 24 2.296 6.982 -5.543 2 6.942 -5.602
2 24 -2 5.74 -5.602 -1.586 5.685 -5.685
2 24 4.243 7.851 4.243 4.761 8.369 3.467
2 24 2.296 6.982 5.543 4.243 7.851 4.243
2 24 4.243 7.851 -4.243 2.296 6.982 -5.543
2 24 4.761 8.369 -3.467 4.243 7.851 -4.243
2 24 5.543 8.602 2.296 6 9.059 0
2 24 4.761 8.369 3.467 5.543 8.602 2.296
2 24 5.543 8.602 -2.296 4.761 8.369 -3.467
2 24 6 9.059 0 5.543 8.602 -2.296
2 24 -4.761 8.369 3.467 -5.543 8.602 2.296
2 24 -5.543 8.602 2.296 -6 9.059 0
2 24 -6 9.059 0 -5.543 8.602 -2.296
2 24 -5.543 8.602 -2.296 -4.761 8.369 -3.467
0 // Conditional Lines
5 24 -4.761 8.369 3.467 -2 8.369 3.467 -5.543 8.602 2.296 -4.243 7.851 4.243
5 24 -4.761 8.369 -3.467 -2 8.369 -3.467 -4.243 7.851 -4.243 -5.543 8.602 -2.296
5 24 2 8.369 3.467 4.761 8.369 3.467 5.543 8.602 2.296 4.243 7.851 4.243
5 24 2 8.369 -3.467 4.761 8.369 -3.467 4.243 7.851 -4.243 5.543 8.602 -2.296
5 24 6 9.059 0 2 9.059 0 5.543 8.602 2.296 5.543 8.602 -2.296
5 24 0 38 6 0 5.212 6 -1.586 5.685 5.685 2 6.942 5.602
5 24 -2.296 6.982 5.543 -2.2962 38 5.5434 0 38 6 -4.2426 38 4.2426
5 24 2.2962 38 5.5434 2.296 6.982 5.543 2 6.942 5.602 4.2426 38 4.2426
5 24 0 38 -6 0 5.212 -6 1.586 5.685 -5.685 -2 6.942 -5.602
5 24 2.296 6.982 -5.543 2.2962 38 -5.5434 0 38 -6 4.2426 38 -4.2426
5 24 -2.2962 38 -5.5434 -2.296 6.982 -5.543 -2 6.942 -5.602 -4.2426 38 -4.2426
5 24 -4.243 7.851 4.243 -4.2426 38 4.2426 -2.2962 38 5.5434 -4.761 8.369 3.467
5 24 -5.543 8.602 2.296 -5.5434 38 2.2962 -4.761 8.369 3.467 -6 38 0
5 24 -6 9.059 0 -6 38 0 -5.5434 38 2.2962 -5.543 8.602 -2.296
5 24 -5.543 8.602 -2.296 -5.5434 38 -2.2962 -6 38 0 -4.761 8.369 -3.467
5 24 -4.243 7.851 -4.243 -4.2426 38 -4.2426 -4.761 8.369 -3.467 -2.296 6.982 -5.543
5 24 4.243 7.851 -4.243 4.2426 38 -4.2426 2.2962 38 -5.5434 4.761 8.369 -3.467
5 24 5.543 8.602 -2.296 5.5434 38 -2.2962 4.761 8.369 -3.467 6 38 0
5 24 6 9.059 0 6 38 0 5.5434 38 -2.2962 5.543 8.602 2.296
5 24 5.543 8.602 2.296 5.5434 38 2.2962 6 38 0 4.761 8.369 3.467
5 24 4.243 7.851 4.243 4.2426 38 4.2426 4.761 8.369 3.467 2.296 6.982 5.543
5 24 -2 9.059 0 -6 9.059 0 -5.543 8.602 2.296 -5.543 8.602 -2.296
5 24 2 .1965 -8 -2 .1965 -8 2 -10 -8 -2 3.0765 -7.4275
5 24 2 3.0765 -7.4275 -2 3.0765 -7.4275 2 .1965 -8 -2 5.685 -5.685
5 24 2 -.197 8 -2 .1965 8 2 -10 8 -2 3.0765 7.4275
5 24 2 3.0765 7.4275 -2 3.0765 7.4275 2 .1965 8 -2 5.74 5.602
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
*replaced 45 degree rotated 1-4 cyli with 2x 1-8cyli
Creative Commons Attribution License information
This part is copyright ©
Franklin W. Cain
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Philippe Hurbain, Joerg Sommerer, Daniel Goerner, Orion Pobursky, Chris Böhnke
*used common geometry for a and d version
Explanation on versions:
a - no axle connector in central tube, used around ca. 1999-2001 (some 2002/2003 sets might have had leftover stock). Hole goes through entire part.
b - axle connector at 45 degree (not yet in LDraw), used in 2002 only?
c - axle connector at 90 degree, used since 2003 (not in LDraw)
d - same as c, but with minor difference in axle connector design, not sure when this started appearing, but it seems to be the current version
Bricklink has a good comparison image.
