Unofficial File parts/s/30361bs01.dat
File Header:

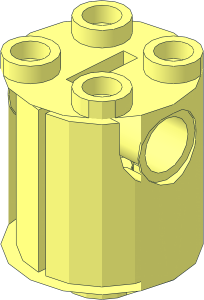

0 ~Cylinder 2 x 2 x 2 Robot Body with Axle Holder 45 Degrees without Front and Back Faces
0 Name: s\30361bs01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Sub-Filed from 30361ds01.dat by Joerg Sommerer [Brickaneer]
0 // Common Geometry
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30361ds03.dat
0 // Back Face
1 16 0 30 0 0 0 20 0 -40 0 20 0 0 1-8cyli.dat
1 16 0 30 0 0 0 -20 0 -40 0 20 0 0 1-8cyli.dat
3 16 -18.25 0 8 -14.14 -10 14.14 -18.48 1.741 7.654
3 16 18.48 1.741 7.654 14.14 -10 14.14 18.25 0 8
4 16 -18.48 -1.741 7.654 -18.48 -10 7.654 -14.14 -10 14.14 -18.25 0 8
4 16 -18.48 1.741 7.654 -14.14 -10 14.14 -14.14 30 14.14 -18.48 30 7.654
4 16 18.25 0 8 14.14 -10 14.14 18.48 -10 7.654 18.48 -1.741 7.654
4 16 18.48 30 7.654 14.14 30 14.14 14.14 -10 14.14 18.48 1.741 7.654
5 24 -14.14 -10 14.14 -14.14 30 14.14 -18.48 30 7.654 -7.654 -10 18.478
5 24 14.14 -10 14.14 14.14 30 14.14 18.48 30 7.654 7.654 -10 18.478
0 // Bottom Connector
0 BFC INVERTNEXT
1 16 0 12 0 6 0 0 0 26 0 0 0 6 4-4cylc.dat
1 16 0 12 0 .70711 0 .70711 0 18 0 -.70711 0 .70711 axl2hol8.dat
1 16 0 12 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol9.dat
1 16 0 30 0 .70711 0 .70711 0 -1 0 -.70711 0 .70711 axl2ho10.dat
1 16 0 30 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol9.dat
1 16 0 30 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol3.dat
0 // Top Cavity
1 16 -2 0 0 0 -1 0 6 0 0 0 0 -6 4-4ndis.dat
1 16 2 2.5 2.5 0 1 0 5.5 0 0 0 0 5.5 1-4edge.dat
1 16 -2 2.5 2.5 0 1 0 5.5 0 0 0 0 5.5 1-4edge.dat
1 16 -2 2.5 -2.5 0 -1 0 5.5 0 0 0 0 -5.5 1-4edge.dat
1 16 0 -3.75 -8 0 0 -2 -6.25 0 0 0 -1 0 rect2p.dat
1 16 0 -3.75 8 0 0 -2 -6.25 0 0 0 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 2 2.5 2.5 0 -4 0 5.5 0 0 0 0 5.5 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -2 2.5 -2.5 0 4 0 5.5 0 0 0 0 -5.5 1-4cyli.dat
1 16 2 2.5 -2.5 0 -1 0 5.5 0 0 0 0 -5.5 1-4edge.dat
1 16 0 8 0 0 0 2 0 1 0 -2.5 0 0 rect2p.dat
1 16 2 0 0 0 1 0 6 0 0 0 0 6 4-4ndis.dat
4 16 -2 6 6 -2 6 -6 -2 8 -2.5 -2 8 2.5
4 16 -2 8 2.5 -2 7.5815 4.6049 -2 6.3891 6.3891 -2 6 6
4 16 -2 6 6 -2 6.3891 6.3891 -2 4.6049 7.5815 -2 2.5 8
4 16 -2 6 -6 -2 6.3891 -6.3891 -2 7.5815 -4.6049 -2 8 -2.5
4 16 -2 2.5 -8 -2 4.6049 -7.5815 -2 6.3891 -6.3891 -2 6 -6
4 16 -2 2.5 8 -2 -10 8 -2 -6 6 -2 6 6
4 16 -2 6 -6 -2 -6 -6 -2 -10 -8 -2 2.5 -8
4 16 -2 -10 8 -2 -10 -8 -2 -6 -6 -2 -6 6
4 16 2 6 -6 2 6 6 2 8 2.5 2 8 -2.5
4 16 2 8 -2.5 2 7.5815 -4.6049 2 6.3891 -6.3891 2 6 -6
4 16 2 6 -6 2 6.3891 -6.3891 2 4.6049 -7.5815 2 2.5 -8
4 16 2 6 6 2 6.3891 6.3891 2 7.5815 4.6049 2 8 2.5
4 16 2 2.5 8 2 4.6049 7.5815 2 6.3891 6.3891 2 6 6
4 16 2 2.5 -8 2 -10 -8 2 -6 -6 2 6 -6
4 16 2 6 6 2 -6 6 2 -10 8 2 2.5 8
4 16 2 -10 -8 2 -10 8 2 -6 6 2 -6 -6
Status:
Needs 2 More Votes (N)
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 29: 1 16 0 12 0 .70711 0 .70711 0 18 0 -.70711 0 .70711 axl2hol8.datLine 30: 1 16 0 12 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol9.datLine 31: 1 16 0 30 0 .70711 0 .70711 0 -1 0 -.70711 0 .70711 axl2ho10.datLine 32: 1 16 0 30 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol9.datLine 33: 1 16 0 30 0 .70711 0 .70711 0 1 0 -.70711 0 .70711 axl2hol3.dat
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-05-07 19:17:12
*replaced 45 degree rotated 1-4 cyli with 2x 1-8cyli
2026-05-07 20:23:59
5 decimals is not needed.
