Unofficial File parts/s/76797s02.dat
File Header:

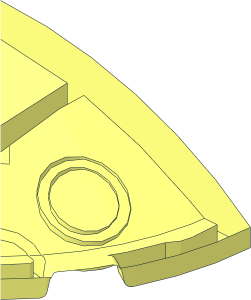

0 ~Brick 3 x 3 x 1 Quarter Circle with Curved Top without Patternable Surfaces - Half
0 Name: s\76797s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-04-09 [GeraldLasser] Subfiled for Patterns, Stud Cutout and Re-Use
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
0 !HISTORY 2026-05-17 [GeraldLasser] Adapted to Revised Shape of 50950 (Solid Side affected)
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\76797s03.dat
0 // Bottom
4 16 60 24 0 56 24 -4 24 24 -4 20 24 0
2 24 60 24 0 20 24 0
2 24 56 24 -4 24 24 -4
4 16 56 24 -4 56 19.5 -4 52.9363 19.5 -4 24 24 -4
4 16 24 24 -4 52.9363 19.5 -4 49.2044 17.4 -4 37.4744 11.61 -4
3 16 24 24 -4 37.4744 11.61 -4 24 7.1945 -4
2 24 52.9363 19.5 -4 49.2044 17.4 -4
2 24 37.4744 11.61 -4 49.2044 17.4 -4
2 24 24 7.1945 -4 37.4744 11.61 -4
2 24 52.9363 19.5 -4 56 19.5 -4
2 24 56 19.5 -4 56 24 -4
2 24 24 7.1945 -4 24 24 -4
0 // Side
4 16 20 16 -4 4 16 -4 0 16 0 20 16 0
4 16 20 6.4028 -4 4 4.3728 -4 4 16 -4 20 16 -4
4 16 51.6589 14.1072 0 60 20 0 60 24 0 20 24 0
4 16 42.4268 9.1499 0 51.6589 14.1072 0 20 24 0 20 16 0
3 16 32.4735 5.1963 0 42.4268 9.1499 0 20 16 0
4 16 21.9601 2.3284 0 32.4735 5.1963 0 20 16 0 11.0734 .5872 0
4 16 20 16 0 0 16 0 0 0 0 11.0734 .5872 0
4 16 20 16 -4 20 16 0 20 24 0 20 24 -20
4 16 20 6.4028 -4 20 16 -4 20 24 -20 20 8.225 -20
2 24 60 20 0 60 24 0
2 24 20 24 0 20 16 0
2 24 20 16 0 0 16 0
2 24 20 16 0 20 16 -4
2 24 4 16 -4 20 16 -4
2 24 20 6.4028 -4 20 16 -4
2 24 32.4735 5.1963 0 21.9601 2.3284 0
2 24 42.4268 9.1499 0 32.4735 5.1963 0
2 24 11.0734 .5872 0 0 0 0
2 24 60 20 0 51.6589 14.1072 0
2 24 11.0734 .5872 0 21.9601 2.3284 0
2 24 42.4268 9.1499 0 51.6589 14.1072 0
2 24 4 4.3728 -4 20 6.4028 -4
