Unofficial File parts/13037.dat
Part Attributes:
File Header:

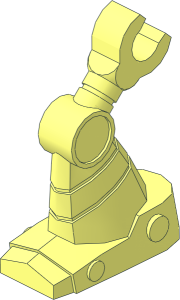

0 Minifig Robot Leg Bent 1 x 2 x 2.333 with Clip
0 Name: 13037.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Foot Back Stud is at y = 46 / z = 0
0 !HELP Foot Front Stud is at y = 46 / z = -20
0 !HELP Rotate 45 degrees to align Upper Leg with xz-Plane
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 401686, Cyborg, Fishface, Teenage Mutant Ninja Turtles
0 !KEYWORDS TMNT, Xever Montes
0 !HISTORY 2013-08-30 {LEGO Digital Designer} Original part shape
0 !HISTORY 2026-05-21 [KnightOfTarenta] File preparation for LDraw Parts Tracker
Show contents
0 // Clip Connector in-lined and modified from 23769.dat by Philippe Hurbain [Philo]
0 // Foot Halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\13037s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\13037s01.dat
0 // Clip Connector
1 16 0 0 0 0 1 0 .7071 0 .7071 .7071 0 -.7071 clip13.dat
1 16 -4 4.9497 -4.9497 0 1 0 2.8284 0 2.4749 2.8284 0 -2.4749 2-4edge.dat
1 16 0 7.7782 -2.1213 4 0 0 0 -1 2.4749 0 0 -2.4749 2-4edge.dat
1 16 0 2.1213 -7.7782 -4 0 0 0 1 2.4749 0 0 -2.4749 2-4edge.dat
1 16 -4 4.9497 -4.9497 0 1 0 2.8284 0 2.4749 2.8284 0 -2.4749 2-4chrd.dat
1 16 0 2.1213 -7.7782 -4 0 0 0 1 2.4749 0 0 -2.4749 2-4chrd.dat
1 16 4 4.9497 -4.9497 0 -1 0 -2.8284 0 2.4749 -2.8284 0 -2.4749 2-4edge.dat
1 16 0 7.7782 -2.1213 4 0 0 0 -1 2.4749 0 0 -2.4749 2-4chrd.dat
1 16 4 4.9497 -4.9497 0 -1 0 -2.8284 0 2.4749 -2.8284 0 -2.4749 2-4chrd.dat
5 24 -1.5309 10.0378 -4.8114 -1.5308 10.0647 -4.4079 0 10.253 -4.5962 -2.8284 9.4764 -4.648
5 24 3.6956 8.5071 -6.3421 4 8.3188 -6.1539 4 7.4246 -7.4246 3.4142 9.0621 -5.0622
5 24 1.5309 4.8114 -10.0378 1.5308 4.4079 -10.0647 0 4.5962 -10.253 2.8284 4.648 -9.4764
5 24 -3.6956 6.3421 -8.5071 -4 6.1539 -8.3188 -4 7.4246 -7.4246 -3.4142 5.0622 -9.0621
1 16 0 7.6014 -1.9445 -4 0 0 0 -1 -.1768 0 0 .1768 rect3.dat
1 16 0 7.4325 -.1312 0 0 -4 -.0078 -1 0 -1.6366 0 0 rect2p.dat
1 16 0 1.9445 -7.6014 4 0 0 0 1 -.1768 0 0 .1768 rect3.dat
1 16 0 .1312 -7.4325 0 0 -4 -1.6366 -1 0 -.0078 0 0 rect2p.dat
4 16 -4 -1.5055 -7.4402 -4 7.4402 1.5055 -4 7.4246 -1.7678 -4 1.7678 -7.4246
4 16 -4 1.7678 -7.4246 -4 7.4246 -1.7678 -4 7.7782 -2.1213 -4 2.1213 -7.7782
4 16 4 7.7782 -2.1213 4 7.4246 -1.7678 4 1.7678 -7.4246 4 2.1213 -7.7782
4 16 4 7.4402 1.5055 4 -1.5055 -7.4402 4 1.7678 -7.4246 4 7.4246 -1.7678
1 16 0 4.9497 -4.9497 0 4 0 2.8284 0 2.4749 2.8284 0 -2.4749 1-8sphc.dat
1 16 0 4.9497 -4.9497 0 4 0 -2.8284 0 2.4749 -2.8284 0 -2.4749 1-8sphc.dat
1 16 0 4.9497 -4.9497 0 -4 0 2.8284 0 2.4749 2.8284 0 -2.4749 1-8sphc.dat
1 16 0 4.9497 -4.9497 0 -4 0 -2.8284 0 2.4749 -2.8284 0 -2.4749 1-8sphc.dat
5 24 4 7.4402 1.5055 -4 7.4402 1.5055 -4 6.3628 4.1889 -4 7.4246 -1.7678
5 24 4 -1.5055 -7.4402 -4 -1.5055 -7.4402 -4 -4.1889 -6.3628 -4 1.7678 -7.4246
0 // Bar for Upper Leg
1 16 0 7.4246 -7.4246 -4 0 0 0 1.9799 -2.8284 0 -1.9799 -2.8284 4-4cylo.dat
1 16 0 9.4045 -9.4045 -.5 0 0 0 -1 -.3536 0 0 -.3536 4-4ring7.dat
1 16 0 9.4045 -9.4045 3.5 0 0 0 .7071 -2.4749 0 -.7071 -2.4749 4-4cylo.dat
1 16 0 10.1116 -10.1116 -.5 0 0 0 1 -.3536 0 0 -.3536 4-4ring7.dat
1 16 0 10.1116 -10.1116 -4 0 0 0 1 -2.8284 0 0 -2.8284 4-4edge.dat
1 16 0 10.1116 -10.1116 -4 0 0 0 1.254 -2.8284 0 -1.254 -2.8284 4-4cyli.dat
1 16 0 11.3656 -11.3656 0 0 -1 .7071 -.7071 0 .7071 .7071 0 cylj4x6.dat
0 // Knee Joint
1 16 4.75 15.785 -15.785 0 -9.5 0 -4.4194 0 4.4194 -4.4194 0 -4.4194 4-4cylo.dat
1 16 4.1 15.785 -15.785 0 -1 0 -3.7123 0 3.7123 -3.7123 0 -3.7123 4-4disc.dat
0 BFC INVERTNEXT
1 16 4.1 15.785 -15.785 0 .65 0 -3.7123 0 3.7123 -3.7123 0 -3.7123 4-4cylo.dat
1 16 4.75 15.785 -15.785 0 -1 0 .5303 0 -.5303 -.5303 0 -.5303 4-4ring7.dat
1 16 4.75 15.785 -15.785 0 -1 0 .1768 0 -.1768 -.1768 0 -.1768 4-4ring24.dat
1 16 -4.1 15.785 -15.785 0 1 0 -3.7123 0 3.7123 -3.7123 0 -3.7123 4-4disc.dat
0 BFC INVERTNEXT
1 16 -4.1 15.785 -15.785 0 -.65 0 -3.7123 0 3.7123 -3.7123 0 -3.7123 4-4cylo.dat
1 16 -4.75 15.785 -15.785 0 1 0 .5303 0 -.5303 -.5303 0 -.5303 4-4ring7.dat
1 16 -4.75 15.785 -15.785 0 1 0 .1768 0 -.1768 -.1768 0 -.1768 4-4ring24.dat
0 // Foot Middle Areas
3 16 -.5 27.452 -21.737 0 33 -21.625 .5 27.452 -21.737
3 16 0 40.739 -30 -7.631 46 -30 7.631 46 -30
3 16 0 21.406 -5.036 -.338 21.535 -5.559 .338 21.535 -5.559
3 16 .338 20.661 -6.196 -.338 20.661 -6.196 0 20.532 -5.67
3 16 -1 46 6 0 46 9.998 1 46 6
3 16 1 42 -26 -1 42 -26 0 42 -18
3 16 -1 42 6 1 42 6 0 42 -2
4 16 .5 26.452 -21.745 .5 18.7057 -21.2059 -.5 18.7057 -21.2059 -.5 26.452 -21.745
4 16 -.372 26.452 -21.245 -.375 27.452 -21.237 .375 27.452 -21.237 .372 26.452 -21.245
4 16 .375 27.452 -21.237 -.375 27.452 -21.237 -.5 27.452 -21.737 .5 27.452 -21.737
4 16 .5 26.452 -21.745 -.5 26.452 -21.745 -.372 26.452 -21.245 .372 26.452 -21.245
4 16 .338 20.661 -6.196 .338 21.535 -5.559 -.338 21.535 -5.559 -.338 20.661 -6.196
4 16 -1 46 -26 1 46 -26 7.631 46 -30 -7.631 46 -30
4 16 1 42 -26 1 46 -26 -1 46 -26 -1 42 -26
4 16 -1 46 6 1 46 6 1 42 6 -1 42 6
0 // Edge Lines
2 24 0 37.733 -21.441 0 38.964 -26.786
2 24 .5 27.452 -21.737 -.5 27.452 -21.737
2 24 -.338 21.535 -5.559 .338 21.535 -5.559
2 24 .338 20.661 -6.196 -.338 20.661 -6.196
2 24 .372 26.452 -21.245 -.372 26.452 -21.245
2 24 0 39.693 -26.492 0 40.739 -30
2 24 -.5 26.452 -21.745 .5 26.452 -21.745
2 24 -.375 27.452 -21.237 .375 27.452 -21.237
2 24 -7.631 46 -30 7.631 46 -30
2 24 .5 18.7057 -21.2059 -.5 18.7057 -21.2059
2 24 -1 42 -26 1 42 -26
2 24 -1 46 -26 1 46 -26
2 24 1 46 6 -1 46 6
2 24 1 42 6 -1 42 6
0 // Conditional Lines
5 24 0 20.532 -5.67 0 15.34 -9.6235 -.729 20.575 -5.845 .729 20.575 -5.845
5 24 0 34 -21.593 0 35.945 -21.52 -3.522 35.959 -20.268 3.522 35.959 -20.268
5 24 -.73 27.125 -1.444 0 35.761 3.425 0 27.125 -1.248 -.744 35.763 3.203
5 24 0 46 9.998 0 35.741 8.351 4.051 35.742 7.305 -4.051 35.742 7.305
5 24 .73 27.125 -1.444 .338 27.125 -1.835 3.987 27.115 -4.726 0 27.125 -1.248
5 24 0 33 -21.125 0 34 -21.093 -2.98 33.768 -19.945 2.98 33.768 -19.945
5 24 0 35.945 -21.52 0 37.733 -21.441 -3.852 38.696 -20.142 3.852 38.696 -20.142
5 24 -.73 27.125 -1.444 -.338 27.125 -1.835 -3.987 27.115 -4.726 0 27.125 -1.248
5 24 0 35.741 8.351 0 35.761 3.425 .744 35.763 3.203 -.744 35.763 3.203
5 24 0 35.761 3.425 .73 27.125 -1.444 0 27.125 -1.248 .744 35.763 3.203
5 24 0 26.125 -1.868 0 21.406 -5.036 .729 21.449 -5.21 -.729 21.449 -5.21
5 24 0 38.964 -26.786 0 39.693 -26.492 9.09 41.286 -25.949 -9.09 41.286 -25.949
5 24 0 35.761 3.425 0 27.125 -1.248 .73 27.125 -1.444 -.73 27.125 -1.444
5 24 .5 18.7057 -21.2059 .5 26.452 -21.745 2.785 26.376 -20.495 -.5 18.7057 -21.2059
5 24 -.5 18.7057 -21.2059 -.5 26.452 -21.745 -2.785 26.376 -20.495 .5 26.452 -21.745
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
This part has the following warnings
- Ensure correct Minifig category
Current Votes:
| User | Vote |
|---|---|
| Philo | Hold |
Official parents and subparts
Part Events:
2026-05-22 01:32:29
Creative Commons Attribution License information
This part is copyright ©
Chris Böhnke
Licensed under
CC BY 4.0
then the knee joint simplifies to
1 16 4.75 15.785 -15.785 0 -9.5 0 -6 0 0 0 0 -6 4-4cylo.dat
1 16 -4.1 15.785 -15.785 0 -.65 0 -5. 0 0 0 0 -5 4-4cylo.dat
1 16 -4.1 15.785 -15.785 0 -.65 0 1 0 0 0 0 1 4-4ring5.dat
As a side note I don't like the cylj4x6 that doesn't play well with prim subst, I'd much prefer a longer interpenetrating cyli (instead of 1 16 0 10.1116 -10.1116 -4 0 0 0 1.254 -2.8284 0 -1.254 -2.8284 4-4cyli.dat) with a custom intersection line.
