Unofficial File parts/s/7786s01.dat
File Header:

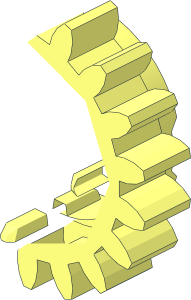

0 ~Technic Gear 18 Tooth with Clutch on Both Sides Half
0 Name: s\7786s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7786s03.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\7786s03.dat
3 16 19.1571 -1.3471 -4.8 17.17 0 -4.8 19.1571 1.3471 -4.8
3 16 19.1571 -1.3471 4.8 19.1571 1.3471 4.8 17.17 0 4.8
3 16 2 19.1 4.8 -2 19.1 4.8 0 17.17 4.8
3 16 0 17.17 -4.8 -2 19.1 -4.8 2 19.1 -4.8
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7786s04.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\7786s04.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 -1 s\7786s04.dat
2 24 12.818 1.2 2 12.818 -1.2 2
2 24 12.818 -1.2 8.5 12.818 1.2 8.5
3 16 12.818 1.2 8.5 12.818 -1.2 8.5 17.17 0 8.5
4 16 12.818 -1.2 8.5 12.818 1.2 8.5 12.818 1.2 2 12.818 -1.2 2
4 16 19.1571 -1.3471 -4.8 19.1571 1.3471 -4.8 19.1571 1.3471 4.8 19.1571 -1.3471 4.8
2 24 19.1571 -1.3471 4.8 19.1571 1.3471 4.8
2 24 19.1571 -1.3471 -4.8 19.1571 1.3471 -4.8
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7786s02.dat
5 24 17.17 0 8.5 17.17 0 4.8 17.0223 -2.2407 4.8 17.0223 2.2407 4.8
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Philippe Hurbain [Philo]
initially submitted the part.
2026-07-05 17:12:02
