Unofficial File parts/s/42022s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

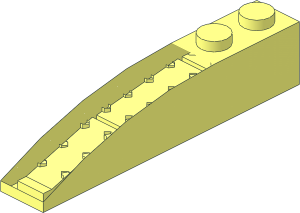

0 ~Slope Brick Curved 6 x 1 without Top Surface
0 Name: s\42022s01.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-09-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-01-19 [Eldar] Add BFC
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2021-10-04 [Holly-Wood] Primitive substitution, added underside ribs
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
0 !HISTORY 2022-07-18 [KnightOfTarenta] Adapted Curve to match 61678.datShow file code:
0 // Top Studs
1 16 0 0 -10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 0 10 0 0 1 0 1 0 -1 0 0 stud.dat
0 // Outer Surface
1 16 0 12 0 10 0 0 0 -12 0 0 0 20 box2-7.dat
1 16 0 22 -100 10 0 0 0 0 -2 0 1 0 rect.dat
1 16 -10 149.254 -20 0 1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
1 16 -10 149.254 -20 0 1 0 -149.254 0 0 0 0 -159.993 48\1-12chrd.dat
3 16 -10 24 20 -10 0 -20 -10 0 20
4 16 -10 24 20 -10 24 -100 -10 20 -100 -10 0 -20
1 16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
1 16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12chrd.dat
3 16 10 24 20 10 0 20 10 0 -20
4 16 10 0 -20 10 20 -100 10 24 -100 10 24 20
0 // Flat Bottom
4 16 10 24 20 6 24 16 -6 24 16 -10 24 20
4 16 -10 24 -100 -10 24 20 -6 24 16 -6 24 -96
4 16 10 24 20 10 24 -100 6 24 -96 6 24 16
4 16 -10 24 -100 -6 24 -96 6 24 -96 10 24 -100
2 24 -10 24 20 10 24 20
2 24 10 24 20 10 24 -100
2 24 -10 24 -100 -10 24 20
2 24 6 24 16 6 24 -96
2 24 -6 24 16 -6 24 -96
0 // Inner Structure
0 // Back Chamber
0 BFC INVERTNEXT
1 16 0 14 -1.5 6 0 0 0 -10 0 0 0 17.5 box2-5.dat
3 16 6 20 -61 6 24 -96 6 20 -92
3 16 6 20 -92 6 24 -96 6 20 -96
4 16 6 24 16 6 20 -19 6 4 -19 6 4 16
4 16 6 20 -19 6 24 16 6 24 -96 6 20 -61
3 16 -6 24 -96 -6 20 -61 -6 20 -92
3 16 -6 24 -96 -6 20 -92 -6 20 -96
4 16 -6 4 -19 -6 20 -19 -6 24 16 -6 4 16
4 16 -6 24 -96 -6 24 16 -6 20 -19 -6 20 -61
0 // Divider Back
4 16 -6 4 -19 6 4 -19 6 20 -19 -6 20 -19
4 16 -6 20 -19 6 20 -19 6 20 -21 -6 20 -21
4 16 -6 20 -21 6 20 -21 6 4 -21 -6 4 -21
2 24 -6 4 -19 -6 20 -19
2 24 6 4 -19 6 20 -19
2 24 -6 20 -19 -6 20 -21
2 24 6 20 -19 6 20 -21
2 24 -6 4 -21 -6 20 -21
2 24 6 4 -21 6 20 -21
2 24 -6 20 -19 6 20 -19
2 24 -6 4 -21 6 4 -21
2 24 -6 20 -21 6 20 -21
0 // Center Chamber
4 16 -6 10 -59 -6 20 -59 -6 20 -21 -6 4 -21
4 16 6 4 -21 6 20 -21 6 20 -59 6 10 -59
4 16 -6 4 -21 6 4 -21 6 10 -59 -6 10 -59
2 24 -6 4 -21 -6 10 -59
2 24 6 4 -21 6 10 -59
0 // Divider Front
4 16 -6 10 -59 6 10 -59 6 20 -59 -6 20 -59
4 16 -6 20 -59 6 20 -59 6 20 -61 -6 20 -61
4 16 -6 20 -61 6 20 -61 6 10 -61 -6 10 -61
2 24 -6 10 -59 -6 20 -59
2 24 6 10 -59 6 20 -59
2 24 -6 20 -59 -6 20 -61
2 24 6 20 -59 6 20 -61
2 24 -6 10 -61 -6 20 -61
2 24 6 10 -61 6 20 -61
2 24 -6 10 -59 6 10 -59
2 24 -6 20 -59 6 20 -59
2 24 -6 10 -61 6 10 -61
2 24 -6 20 -61 6 20 -61
0 // Front Chamber
3 16 -6 20 -92 -6 20 -61 -6 10 -61
3 16 6 10 -61 6 20 -61 6 20 -92
4 16 -6 10 -61 6 10 -61 6 20 -92 -6 20 -92
2 24 -6 10 -61 -6 20 -92
2 24 6 10 -61 6 20 -92
0 BFC INVERTNEXT
1 16 0 22 -94 6 0 0 0 0 -2 0 -2 0 box2-5.dat
0 // Ribs Back Right
1 16 6 13.95 5 0 -1 0 0 0 9.95 1.5 0 0 recte3.dat
1 16 5.5 4 5 -.5 0 0 0 19.9 0 0 0 1.5 box3u6.dat
1 16 3.5 4 5 1.5 0 1.5 0 19.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 13.95 -5 0 -1 0 0 0 9.95 1.5 0 0 recte3.dat
1 16 5.5 4 -5 -.5 0 0 0 19.9 0 0 0 1.5 box3u6.dat
1 16 3.5 4 -5 1.5 0 1.5 0 19.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 13.95 -15 0 -1 0 0 0 9.95 1.5 0 0 recte3.dat
1 16 5.5 4 -15 -.5 0 0 0 19.9 0 0 0 1.5 box3u6.dat
1 16 3.5 4 -15 1.5 0 1.5 0 19.9 0 -1.5 0 1.5 tri3a4.dat
0 // Ribs Back Left
1 16 -6 13.95 -15 0 1 0 0 0 9.95 -1.5 0 0 recte3.dat
1 16 -5.5 4 -15 .5 0 0 0 19.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 4 -15 -1.5 0 -1.5 0 19.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 13.95 -5 0 1 0 0 0 9.95 -1.5 0 0 recte3.dat
1 16 -5.5 4 -5 .5 0 0 0 19.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 4 -5 -1.5 0 -1.5 0 19.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 13.95 5 0 1 0 0 0 9.95 -1.5 0 0 recte3.dat
1 16 -5.5 4 5 .5 0 0 0 19.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 4 5 -1.5 0 -1.5 0 19.9 0 1.5 0 -1.5 tri3a4.dat
0 // Ribs Center Right
1 16 6 13.95 -25 0 -1 0 0 0 9.95 1.5 0 0 recte3.dat
1 16 5.5 4 -25 -.5 0 0 0 19.9 0 0 0 1.5 box3u6.dat
1 16 3.5 4 -25 1.5 0 1.5 0 19.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 14.45 -35 0 -1 0 0 0 9.45 1.5 0 0 recte3.dat
1 16 5.5 5 -35 -.5 0 0 0 18.9 0 0 0 1.5 box3u6.dat
1 16 3.5 5 -35 1.5 0 1.5 0 18.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 15.45 -45 0 -1 0 0 0 8.45 1.5 0 0 recte3.dat
1 16 5.5 7 -45 -.5 0 0 0 16.9 0 0 0 1.5 box3u6.dat
1 16 3.5 7 -45 1.5 0 1.5 0 16.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 15.95 -55 0 -1 0 0 0 7.95 1.5 0 0 recte3.dat
1 16 5.5 8 -55 -.5 0 0 0 15.9 0 0 0 1.5 box3u6.dat
1 16 3.5 8 -55 1.5 0 1.5 0 15.9 0 -1.5 0 1.5 tri3a4.dat
0 // Ribs Center Left
1 16 -6 15.95 -55 0 1 0 0 0 7.95 -1.5 0 0 recte3.dat
1 16 -5.5 8 -55 .5 0 0 0 15.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 8 -55 -1.5 0 -1.5 0 15.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 15.45 -45 0 1 0 0 0 8.45 -1.5 0 0 recte3.dat
1 16 -5.5 7 -45 .5 0 0 0 16.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 7 -45 -1.5 0 -1.5 0 16.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 14.45 -35 0 1 0 0 0 9.45 -1.5 0 0 recte3.dat
1 16 -5.5 5 -35 .5 0 0 0 18.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 5 -35 -1.5 0 -1.5 0 18.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 13.95 -25 0 1 0 0 0 9.95 -1.5 0 0 recte3.dat
1 16 -5.5 4 -25 .5 0 0 0 19.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 4 -25 -1.5 0 -1.5 0 19.9 0 1.5 0 -1.5 tri3a4.dat
0 // Ribs Front Right
1 16 6 16.95 -65 0 -1 0 0 0 6.95 1.5 0 0 recte3.dat
1 16 5.5 10 -65 -.5 0 0 0 13.9 0 0 0 1.5 box3u6.dat
1 16 3.5 10 -65 1.5 0 1.5 0 13.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 18.95 -75 0 -1 0 0 0 4.95 1.5 0 0 recte3.dat
1 16 5.5 14 -75 -.5 0 0 0 9.9 0 0 0 1.5 box3u6.dat
1 16 3.5 14 -75 1.5 0 1.5 0 9.9 0 -1.5 0 1.5 tri3a4.dat
1 16 6 20.45 -85 0 -1 0 0 0 3.45 1.5 0 0 recte3.dat
1 16 5.5 17 -85 -.5 0 0 0 6.9 0 0 0 1.5 box3u6.dat
1 16 3.5 17 -85 1.5 0 1.5 0 6.9 0 -1.5 0 1.5 tri3a4.dat
0 // Ribs Front Left
1 16 -6 20.45 -85 0 1 0 0 0 3.45 -1.5 0 0 recte3.dat
1 16 -5.5 17 -85 .5 0 0 0 6.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 17 -85 -1.5 0 -1.5 0 6.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 18.95 -75 0 1 0 0 0 4.95 -1.5 0 0 recte3.dat
1 16 -5.5 14 -75 .5 0 0 0 9.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 14 -75 -1.5 0 -1.5 0 9.9 0 1.5 0 -1.5 tri3a4.dat
1 16 -6 16.95 -65 0 1 0 0 0 6.95 -1.5 0 0 recte3.dat
1 16 -5.5 10 -65 .5 0 0 0 13.9 0 0 0 -1.5 box3u6.dat
1 16 -3.5 10 -65 -1.5 0 -1.5 0 13.9 0 1.5 0 -1.5 tri3a4.dat
0 // Additional Edge Lines
2 24 -5 7.5526 -43.5 -6 7.5526 -43.5
2 24 -5 8.0263 -46.5 -6 8.0263 -46.5
2 24 -3.5 7.7895 -45 -5 7.5526 -43.5
2 24 -3.5 7.7895 -45 -5 8.0263 -46.5
2 24 5 17.2581 -83.5 6 17.2581 -83.5
2 24 5 5.9737 -33.5 6 5.9737 -33.5
2 24 5 6.4474 -36.5 6 6.4474 -36.5
2 24 5 18.2258 -86.5 6 18.2258 -86.5
2 24 3.5 17.7419 -85 5 18.2258 -86.5
2 24 -6 6.4474 -36.5 -5 6.4474 -36.5
2 24 -5 5.9737 -33.5 -6 5.9737 -33.5
2 24 5 5.9737 -33.5 3.5 6.2105 -35
2 24 3.5 6.2105 -35 5 6.4474 -36.5
2 24 6 8.0263 -46.5 5 8.0263 -46.5
2 24 6 7.5526 -43.5 5 7.5526 -43.5
2 24 -3.5 6.2105 -35 -5 6.4474 -36.5
2 24 -3.5 6.2105 -35 -5 5.9737 -33.5
2 24 5 8.0263 -46.5 3.5 7.7895 -45
2 24 3.5 7.7895 -45 5 7.5526 -43.5
2 24 -6 4.3947 -23.5 -5 4.3947 -23.5
2 24 -6 4.8684 -26.5 -5 4.8684 -26.5
2 24 -5 4.8684 -26.5 -3.5 4.6316 -25
2 24 -5 4.3947 -23.5 -3.5 4.6316 -25
2 24 5 9.1316 -53.5 6 9.1316 -53.5
2 24 5 9.6053 -56.5 6 9.6053 -56.5
2 24 5 9.1316 -53.5 3.5 9.3684 -55
2 24 3.5 9.3684 -55 5 9.6053 -56.5
2 24 -5 9.6053 -56.5 -6 9.6053 -56.5
2 24 -5 9.1316 -53.5 -6 9.1316 -53.5
2 24 5 4.8684 -26.5 6 4.8684 -26.5
2 24 -3.5 9.3684 -55 -5 9.6053 -56.5
2 24 -5 9.1316 -53.5 -3.5 9.3684 -55
2 24 6 4.3947 -23.5 5 4.3947 -23.5
2 24 3.5 4.6316 -25 5 4.3947 -23.5
2 24 3.5 4.6316 -25 5 4.8684 -26.5
2 24 3.5 17.7419 -85 5 17.2581 -83.5
2 24 -5 17.2581 -83.5 -6 17.2581 -83.5
2 24 -6 18.2258 -86.5 -5 18.2258 -86.5
2 24 -3.5 17.7419 -85 -5 17.2581 -83.5
2 24 -3.5 17.7419 -85 -5 18.2258 -86.5
2 24 -5 15 -76.5 -6 15 -76.5
2 24 -6 14.0323 -73.5 -5 14.0323 -73.5
2 24 -3.5 14.5161 -75 -5 15 -76.5
2 24 -5 14.0323 -73.5 -3.5 14.5161 -75
2 24 6 11.7742 -66.5 5 11.7742 -66.5
2 24 5 10.8065 -63.5 6 10.8065 -63.5
2 24 -6 11.7742 -66.5 -5 11.7742 -66.5
2 24 3.5 11.2903 -65 5 11.7742 -66.5
2 24 5 10.8065 -63.5 3.5 11.2903 -65
2 24 -6 10.8065 -63.5 -5 10.8065 -63.5
2 24 5 14.0323 -73.5 6 14.0323 -73.5
2 24 6 15 -76.5 5 15 -76.5
2 24 -5 11.7742 -66.5 -3.5 11.2903 -65
2 24 -5 10.8065 -63.5 -3.5 11.2903 -65
2 24 3.5 14.5161 -75 5 14.0323 -73.5
2 24 3.5 14.5161 -75 5 15 -76.5Status
Errors Found (HF)
Current Votes:
Willy Tschager [Holly-Wood]
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-10-17 22:40:14
Rene Rechthaler [Blechtaler]
made the following comment.
2026-10-18 00:22:01
why are the side prims
16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
different than the top prim?
1 16 10 149.253 -20 0 -20 0 -149.253 0 0 0 0 -160 48\1-12cyli.dat
(better end vertices?)
should the Underside Stud Holder Ridge prims get used?
(either ridgea.dat longer like now and sloped ridgee.dat or ridgea.dat+ridges.dat)
16 10 149.254 -20 0 -1 0 -149.254 0 0 0 0 -159.993 48\1-12edge.dat
different than the top prim?
1 16 10 149.253 -20 0 -20 0 -149.253 0 0 0 0 -160 48\1-12cyli.dat
(better end vertices?)
should the Underside Stud Holder Ridge prims get used?
(either ridgea.dat longer like now and sloped ridgee.dat or ridgea.dat+ridges.dat)
Willy Tschager [Holly-Wood]
posted a vote of Hold
2026-10-18 12:42:26
* Agree on the ridges prims.
* My question would be: How about a bit more resolution on the curve:
1 16 10 68.2827 -20 0 -1 0 -68.2827 0 0 0 0 -113.13819 48\1-8chrd.dat
* My question would be: How about a bit more resolution on the curve:
1 16 10 68.2827 -20 0 -1 0 -68.2827 0 0 0 0 -113.13819 48\1-8chrd.dat
https://forums.ldraw.org/thread-27705.html
Overview of changes:
*using 48\1-12cyli instead of single tris/quads, creates a micro-mismatch (ca. 0.0001 LDU) at the front, but curve matches real part better that way
*corrected decimal precision issues
*fixed some T-junc
*Inner structure mostly unchanged, can it stay that way?
*alternative to the T-junc with the ribs would be very stretched triangles...
*does this actually need Keywords?
