Unofficial File parts/42022.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

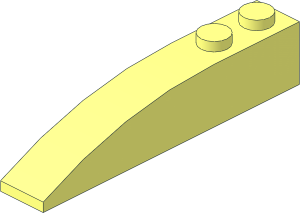

0 Slope Brick Curved 6 x 1
0 Name: 42022.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Slope
0 !KEYWORDS Alpha Team, Brickowl 782373, Racers, rounded
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2004-09-15 [PTadmin] Official Update 2004-03
0 !HISTORY 2007-07-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 464
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2010-01-19 [Eldar] Add BFC
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2021-10-04 [Holly-Wood] Unmirrored subfile
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
0 !HISTORY 2022-07-18 [KnightOfTarenta] Adapted Curve to match 61678.datShow file code:
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\42022s01.dat
0 // Patternable Surface
1 16 10 149.253 -20 0 -20 0 -149.253 0 0 0 0 -160 48\1-12cyli.datStatus
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following warnings
- Number in description may need a leading space
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-10-17 22:40:14
https://forums.ldraw.org/thread-27705.html
Overview of changes:
*using 48\1-12cyli instead of single tris/quads, creates a micro-mismatch (ca. 0.0001 LDU) at the front, but curve matches real part better that way
*corrected decimal precision issues
*fixed some T-junc
*Inner structure mostly unchanged, can it stay that way?
*alternative to the T-junc with the ribs would be very stretched triangles...
*does this actually need Keywords?
