Unofficial File parts/7139.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

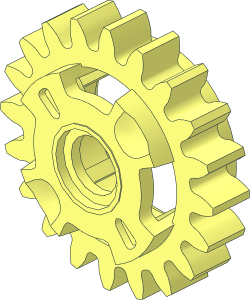

0 Technic Gear 20 Tooth One Way Case
0 Name: 7139.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Technic
0 !KEYWORDS clutch, Ratchet
0 !HISTORY 2026-06-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-06-01 [Philo] File preparation for LDraw Parts TrackerShow file code:
1 16 0 0 -10 1 0 0 0 0 -1 0 1 0 peghole.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 1 0 4-4ring8.dat
1 16 0 0 -10 9 0 0 0 0 9 0 .25 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -8 6 0 0 0 0 6 0 2.2 0 4-4cylo.dat
1 16 0 0 -5.8 2 0 0 0 0 2 0 -1 0 4-4ring3.dat
1 16 0 0 -6.5 2 0 0 0 0 2 0 .7 0 4-4con4.dat
1 16 0 0 -6.5 10 0 0 0 0 10 0 1 0 4-4edge.dat
1 16 0 0 -5.8 8 0 0 0 0 8 0 1 0 4-4edge.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7139s01.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\7139s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\7139s01.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\7139s01.dat
1 16 0 0 0 .70711 -.70711 0 .70711 .70711 0 0 0 1 s\7139s03.dat
1 16 0 0 0 -.70711 -.70711 0 -.70711 .70711 0 0 0 1 s\7139s03.dat
1 16 0 0 0 .70711 .70711 0 .70711 -.70711 0 0 0 1 s\7139s03.dat
1 16 0 0 0 -.70711 .70711 0 -.70711 -.70711 0 0 0 1 s\7139s03.dat
5 24 11.932 11.932 -9.75 11.669 11.669 -8.5 11.178 12.137 -8.5 12.137 11.178 -8.5
5 24 13.2936 13.2936 -4.75 13.2936 13.2936 -9.75 11.4445 14.9141 -9.75 14.9141 11.4445 -9.75
5 24 -13.2936 13.2936 -9 -13.2936 13.2936 -4.75 -11.4445 14.9141 -4.75 -14.9141 11.4445 -4.75
5 24 -11.932 -11.932 -9.75 -11.669 -11.669 -8.5 -12.137 -11.178 -8.5 -11.178 -12.137 -8.5
5 24 -13.2936 -13.2936 -4.75 -13.2936 -13.2936 -9.75 -14.9141 -11.4445 -9.75 -11.4445 -14.9141 -9.75
5 24 -7.773 -7.773 -8.5 -7.516 -7.516 -9.75 -8.426 -7.203 -9.75 -7.203 -8.426 -9.75
5 24 13.2936 -13.2936 -9 13.2936 -13.2936 -4.75 14.9141 -11.4445 -4.75 11.4445 -14.9141 -4.75
5 24 7.773 7.773 -8.5 7.516 7.516 -9.75 7.203 8.426 -9.75 8.426 7.203 -9.75
5 24 -8.348 8.348 -9.75 -9.7345 9.7345 -9 -7.4436 9.4266 -9.75 -9.4266 7.4436 -9.75
5 24 8.348 -8.348 -9.75 9.7345 -9.7345 -9 7.4436 -9.4266 -9.75 9.4266 -7.4436 -9.75Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Philippe Hurbain [Philo]
initially submitted the part.
2026-10-23 10:20:58
