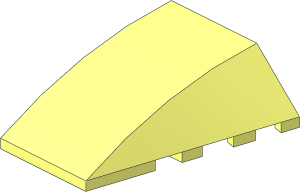

0 Wedge 4 x 4 Triple Curved without Studs
0 Name: 47753.dat
0 Author: Mark Chittenden [mdublade]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Wedge
0 !KEYWORDS Brickowl 774808
0 !HISTORY 2006-08-16 [guyvivan] Improve part and made BFC'ed
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2011-10-11 [Wesley] subfiled for pattern usability
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2026-10-25 [KnightOfTarenta] Adapted Curve to match 61678.datShow file code:
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47753s01.dat
0 // Top Surface
1 16 20 149.254 40 0 -40 0 -149.254 0 0 0 0 -159.993 48\1-12cyli.dat
0 // Left Side Surface
3 16 -40 20 40 -20 1.2836 19.1209 -20 0 40
3 16 -35 20 20 -20 1.2836 19.1209 -40 20 40
3 16 -35 20 20 -20 5.0896 -1.4062 -20 1.2836 19.1209
3 16 -35 20 20 -30 20 0 -20 5.0896 -1.4062
3 16 -20 11.3582 -21.2293 -20 5.0896 -1.4062 -30 20 0
3 16 -30 20 0 -20 20 -40 -20 11.3582 -21.2293
2 24 -20 0 40 -20 1.2836 19.1209
2 24 -20 1.2836 19.1209 -20 5.0896 -1.4062
2 24 -20 5.0896 -1.4062 -20 11.3582 -21.2293
2 24 -20 11.3582 -21.2293 -20 20 -40
5 24 -40 20 40 -20 1.2836 19.1209 -20 0 40 -35 20 20
5 24 -35 20 20 -20 5.0896 -1.4062 -20 1.2836 19.1209 -30 20 0
5 24 -20 1.2836 19.1209 -35 20 20 -20 5.0896 -1.4062 -20 0 40
5 24 -20 11.3582 -21.2293 -30 20 0 -20 5.0896 -1.4062 -25 20 -20
5 24 -20 5.0896 -1.4062 -30 20 0 -20 11.3582 -21.2293 -20 1.2836 19.1209
0 // Right Side Surface
3 16 40 20 40 20 0 40 20 1.2836 19.1209
3 16 20 1.2836 19.1209 35 20 20 40 20 40
3 16 35 20 20 20 1.2836 19.1209 20 5.0896 -1.4062
3 16 30 20 0 35 20 20 20 5.0896 -1.4062
3 16 30 20 0 20 5.0896 -1.4062 20 11.3582 -21.2293
3 16 30 20 0 20 11.3582 -21.2293 20 20 -40
2 24 20 0 40 20 1.2836 19.1209
2 24 20 1.2836 19.1209 20 5.0896 -1.4062
2 24 20 5.0896 -1.4062 20 11.3582 -21.2293
2 24 20 11.3582 -21.2293 20 20 -40
5 24 40 20 40 20 1.2836 19.1209 20 0 40 35 20 20
5 24 35 20 20 20 5.0896 -1.4062 20 1.2836 19.1209 30 20 0
5 24 20 1.2836 19.1209 35 20 20 20 5.0896 -1.4062 20 0 40
5 24 20 11.3582 -21.2293 30 20 0 20 5.0896 -1.4062 25 20 -20
5 24 20 5.0896 -1.4062 30 20 0 20 11.3582 -21.2293 20 1.2836 19.1209Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following warnings
- Parts without CC BY 4.0 license may not be released
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-10-25 21:37:13
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-10-25 21:57:58
I guess they do anyways, but how important is it that the "spherical" areas of the sides match everything else?
*Simpler than I thought. Seems the sub-file can be left unchanged?
*Enough to claim ownership for CC BY 4.0?
