Unofficial File parts/77274.dat
Part Attributes:
File Header:

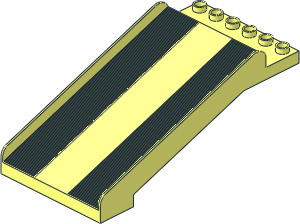

0 Duplo Track Ramp 6 x 12 x 3
0 Name: 77274.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\77274s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\77274s01.dat
0 // Lower Part
4 16 120 144 -360 116 144 -364 -116 144 -364 -120 144 -360
4 16 -120 144 -440 -116 144 -436 116 144 -436 120 144 -440
1 16 0 144 -400 120 0 0 0 1 0 0 0 40 recte4.dat
1 16 0 144 -400 116 0 0 0 1 0 0 0 36 recte4.dat
0 BFC INVERTNEXT
1 16 0 120.44 -400 116 0 0 0 -10.6 12.96 0 0 -36 box2-7.dat
1 16 0 120.44 -364 116 0 0 0 0 -23.56 0 1 0 rect3.dat
1 16 0 115.6 -400 1 0 0 0 -6.1 0 0 0 1 stud8a.dat
4 16 116 120 -440 -116 120 -440 -120 144 -440 120 144 -440
4 16 -120 144 -360 -116 120 -360 116 120 -360 120 144 -360
1 16 0 107.72 -360 -116 0 0 0 0 -12.28 0 -1 0 rect3.dat
2 24 116 120 -440 -116 120 -440
0 // Upper Part
4 16 120 24 40 116 24 36 -116 24 36 -120 24 40
4 16 -116 24 -40 -116 24 -36 116 24 -36 116 24 -40
0 BFC INVERTNEXT
1 16 0 24 0 116 0 0 0 -20 0 0 0 36 box5.dat
1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stug8-1x5.dat
0 BFC INVERTNEXT
1 16 0 14 -42 116 0 0 0 -10 0 0 0 2 box2-5.dat
1 16 0 -7.16 -44 116 0 0 0 0 -11.16 0 1 0 rect3.dat
1 16 0 12 0 120 0 0 0 -12 0 0 0 40 box2-5.dat
1 16 0 0 20 1 0 0 0 2.75 0 0 0 1 stug7-1x6.dat
4 16 -116 -24 -40 116 -24 -40 120 0 -40 -120 0 -40
2 24 116 -24 -40 -116 -24 -40
4 16 -116 120 -440 116 120 -440 116 -24 -40 -116 -24 -40
4 16 116 95.44 -360 -116 95.44 -360 -116 -18.32 -44 116 -18.32 -44
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2024-09-22 11:06:09
2024-09-22 11:24:06
2024-12-18 09:09:06
I'm curious of the shape of the track bars (here trapezoid/trapezium). I noticed that planar tracks (e.g 6377) have had a simpler triangular shape (tri4). Looking at the physical parts, I'd say the real shape should be a box5. However, would it be best to consistently use tri4?
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
and some fillets in the stud8 area, which I probably won'T add
