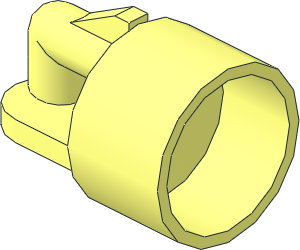

0 ~Magnet Cylindrical Casing for Train Base 6 x 22 Type 1
0 Name: u9448.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2021-07-20 [MagFors] Original design by Niels Karsdorp
0 !HISTORY 2021-07-20 [MagFors] Added corrected, and missing edge lines
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
Show contents
0 // holder
1 16 36 -6 0 0 -1 0 1 0 0 0 0 1 4-4ring13.dat
1 16 36 -6 0 0 -1 0 1 0 0 0 0 1 4-4ring14.dat
1 16 22 -6 0 0 -1 0 13 0 0 0 0 -13 4-4disc.dat
1 16 17 -6 0 0 1 0 15 0 0 0 0 15 4-4disc.dat
1 16 17 -6 0 0 19 0 15 0 0 0 0 15 4-4cylo.dat
0 BFC INVERTNEXT
1 16 22 -6 0 0 14 0 13 0 0 0 0 13 4-4cylo.dat
0 // plate
1 16 -1.5 0 0 0 0 -7.5 0 4 0 7.5 0 0 2-4cylo.dat
1 16 -1.5 0 0 0 0 -7.5 0 1 0 7.5 0 0 2-4chrd.dat
1 16 -1.5 4 0 0 0 -7.5 0 -1 0 7.5 0 0 2-4chrd.dat
2 24 17 0 -7.5 17 4 -7.5
2 24 17 0 7.5 17 4 7.5
2 24 17 0 7.5 17 0 -7.5
2 24 17 4 7.5 17 4 2
2 24 17 4 -7.5 17 4 -2
1 16 7.75 4 0 9.25 0 0 0 -4 0 0 0 7.5 box3u8p.dat
4 16 0 4 -2 17 4 -2 17 4 -7.5 -1.5 4 -7.5
4 16 17 4 2 0 4 2 -1.5 4 7.5 17 4 7.5
4 16 0 4 -2 -1.5 4 -7.5 -1.5 4 7.5 0 4 2
2 24 17 4 -2 17 8.5 -2
2 24 17 4 2 17 8.5 2
2 24 17 8.5 -2 17 8.5 2
2 24 17 4 2 0 4 2
2 24 17 4 -2 0 4 -2
2 24 0 4 -2 0 4 2
2 24 17 8.5 2 0 4 2
2 24 17 8.5 -2 0 4 -2
4 16 0 4 -2 0 4 2 17 8.5 2 17 8.5 -2
3 16 17 4 2 17 8.5 2 0 4 2
3 16 0 4 -2 17 8.5 -2 17 4 -2
0 // hook
1 16 17 -13 0 0 1 0 4.5 0 0 0 0 4.5 4-4edge.dat
1 16 17 -13 0 0 -12.5 0 4.5 0 0 0 0 4.5 4-4cyli.dat
1 16 0 -8.5 0 4.5 0 0 0 5 0 0 0 4.5 4-4cyli.dat
1 16 0 -3.5 0 -4.5 0 0 0 .5 0 0 0 4.5 4-4cylse.dat
1 16 0 -3 0 -4.5 0 0 -0.5 -1 0 0 0 -4.5 4-4disc.dat
1 16 0 -13 0 0 0 -4.5 0 -4.5 0 4.5 0 0 2-8sphe.dat
1 16 0 -13 0 0 0 4.5 0 -1 4.5 4.5 0 0 2-4edge.dat
1 16 0 -8.5 0 4.5 0 0 0 -4.5 0 0 0 4.5 1-4cyls.dat
1 16 0 -8.5 0 4.5 0 0 0 -4.5 0 0 0 -4.5 1-4cyls.dat
1 16 0 -8.5 0 0 0 -4.5 0 -4.5 0 4.5 0 0 2-4cyli.dat
1 16 4.5 -13 0 0 -4.5 0 4.5 0 0 0 0 4.5 1-4cyls.dat
1 16 4.5 -13 0 0 -4.5 0 4.5 0 0 0 0 -4.5 1-4cyls.dat
1 16 4.5 -13 0 0 -4.5 0 0 0 -4.5 -4.5 0 0 2-4cyli.dat
2 24 17 -16.97186 2 4.5 -16.97186 2
2 24 17 -16.97186 -2 4.5 -16.97186 -2
2 24 5.49785 -17.5 0 4.850836 -17.15755 1.72215
2 24 5.49785 -17.5 0 4.850836 -17.15755 -1.72215
2 24 4.850836 -17.15755 -1.72215 4.5 -16.97186 -2
2 24 4.850836 -17.15755 1.72215 4.5 -16.97186 2
2 24 17 -16.97186 2 17 -22 2
2 24 17 -16.97186 -2 17 -22 -2
2 24 14 -22 2 4.5 -16.97186 2
2 24 14 -22 -2 4.5 -16.97186 -2
1 16 15.5 -22 0 1.5 0 0 0 1 0 0 0 2 rect.dat
4 16 17 -22 2 17 -22 -2 17 -16.97186 -2 17 -16.97186 2
4 16 4.5 -16.97186 2 4.5 -16.97186 -2 14 -22 -2 14 -22 2
4 16 4.5 -16.97186 2 14 -22 2 17 -22 2 17 -16.97186 2
4 16 14 -22 -2 4.5 -16.97186 -2 17 -16.97186 -2 17 -22 -2
