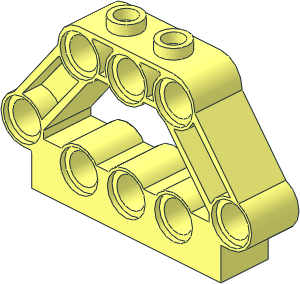

Technic Brick 5 x 3 x 1 with 8 Pegholes and 2 Studs

File Header:

0 Technic Brick  5 x  3 x  1 with  8 Pegholes and  2 Studs
0 Name: 32333.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS block, connector, Engine, Housing

0 !HISTORY 2023-02-02 [guyvivan] Made BFC compliant & Move 0 Origine
0 !HISTORY 2023-02-02 [guyvivan] Add Missing edge
0 !HISTORY 2023-02-02 [PTadmin] Official Update 2013-02
0 !HISTORY 2023-02-02 [Cheenzo] Created subparts and fixed stud3a position

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32333s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32333s01.dat

1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
0 BFC INVERTNEXT
1 16 0 10 8 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 0 10 10 -1 0 0 0 0 -1 0 -1 0 4-4ring8.dat
1 16 0 10 10 -1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 0 10 -10 1 0 0 0 0 -1 0 1 0 4-4ring8.dat
1 16 0 10 -10 1 0 0 0 0 1 0 1 0 peghole.dat
1 16 0 56.8 0 1 0 0 0 -1.8 0 0 0 1 stud3a.dat
0 BFC INVERTNEXT
1 16 0 50 8 -6 0 0 0 0 -6 0 -16 0 4-4cyli.dat
1 16 0 50 10 -1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 0 50 -10 1 0 0 0 0 1 0 1 0 peghole.dat

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/32333s01.dat (Needs More Votes)
parts/s/32333s02.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Vincent Messenet [Cheenzo]

initially submitted the part.

2023-02-10 04:45:09

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-02-10 05:16:42

Test submit

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-02-10 05:17:54

Test submit

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-02-20 18:08:29

The cavities in the top beam should use npeghol primitives.
Lots of overlapping surfaces and T-junctions.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-06 08:07:21

Vincent Messenet [Cheenzo]

made the following comment.

2023-03-06 08:09:39

I could not find any npeghol primitive fitting this part. Can you please advise which one(s) should be used?

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-03-19 21:41:02

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-11-20 23:01:45

The two cyli added here are bleeding through the surface partially:

replace:
1 13 0 50 10 -8.30974 0 3.44201 -3.44201 0 -8.30974 0 -20 0 3-8cyli.dat
1 13 0 50 10 -6.36 0 6.36 -6.36 0 -6.36 0 -1 0 1-4edge.dat
1 13 0 50 -10 -6.36 0 6.36 -6.36 0 -6.36 0 -1 0 1-4edge.dat

with
1 13 0 50 10 0 0 -9 -9 0 0 0 -20 0 1-8cylo.dat
1 13 0 50 10 0 0 9 -9 0 0 0 -20 0 1-8cylo.dat
plus the two quads to complete the bow, half of this could be added also in s01,
don't forget the complementary cond.

same at the top, bleeding clyi.
replace
1 13 0 10 10 6.36396 0 6.36396 -6.36396 0 6.36396 0 -20 0 3-4cyli.dat
1 13 0 10 -10 6.36396 0 -6.36396 6.36396 0 6.36396 0 1 0 1-4edge.dat
1 13 0 10 10 6.36396 0 -6.36396 6.36396 0 6.36396 0 1 0 1-4edge.dat

either here with (or in s01)
1 13 0 10 10 0 0 -9 9 0 0 0 -20 0 1-8cylo.dat
1 13 0 10 10 0 0 9 9 0 0 0 -20 0 1-8cylo.dat

rest follows in s02

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2025-07-18 07:05:01

Fixed bleeding issues

Creative Commons Attribution License information

This part is copyright © Marc Klein
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Guy Vivan, Vincent Messenet,
