Unofficial File parts/u9602.dat
Part Attributes:
File Header:

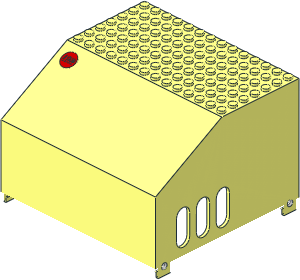

0 ~Electric Train 12V Transformer Type 1 Top
0 Name: u9602.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9602s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\u9602s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9602s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\u9602s01.dat
1 16 0 0 60 140 0 0 0 1 0 0 0 70 rect.dat
1 16 70 0 60 0 0 1 0 1 0 -1 0 0 stug-7x7.dat
1 16 -70 0 60 0 0 1 0 1 0 -1 0 0 stug-7x7.dat
1 16 0 88 130 0 0 140 88 0 0 0 -1 0 rect2p.dat
1 16 0 122.641 -130 140 0 0 0 0 -53.359 0 1 0 rect3.dat
0 // Top face (here goes the knob)
1 16 0 34.641 -70 0 0 -140 -34.641 1 0 60 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 140 152 -80 0 -5 0 0 0 12 12 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 140 117 -80 0 -5 0 0 0 -12 12 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 140 152 -44 0 -5 0 0 0 12 12 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 140 117 -44 0 -5 0 0 0 -12 12 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 140 152 -8 0 -5 0 0 0 12 12 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 140 117 -8 0 -5 0 0 0 -12 12 0 0 2-4cylo.dat
1 16 140 152 -80 0 -1 0 0 0 12 12 0 0 2-4ndis.dat
1 16 140 117 -80 0 -1 0 0 0 -12 12 0 0 2-4ndis.dat
1 16 140 152 -44 0 -1 0 0 0 12 12 0 0 2-4ndis.dat
1 16 140 117 -44 0 -1 0 0 0 -12 12 0 0 2-4ndis.dat
1 16 140 152 -8 0 -1 0 0 0 12 12 0 0 2-4ndis.dat
1 16 140 117 -8 0 -1 0 0 0 -12 12 0 0 2-4ndis.dat
1 16 135 134.5 -62 0 5 0 17.5 0 0 0 0 6 box3u8p.dat
1 16 135 134.5 -26 0 5 0 17.5 0 0 0 0 6 box3u8p.dat
1 16 137.5 134.5 -92 0 0 2.5 17.5 0 0 0 -1 0 rect2p.dat
1 16 137.5 134.5 4 0 0 2.5 17.5 0 0 0 1 0 rect2p.dat
4 16 140 164 -68 140 164 -56 140 152 -56 140 152 -68
4 16 140 117 -68 140 117 -56 140 105 -56 140 105 -68
4 16 140 164 -32 140 164 -20 140 152 -20 140 152 -32
4 16 140 117 -32 140 117 -20 140 105 -20 140 105 -32
4 16 140 173 119 140 176 125 140 176 130 140 0 130
4 16 140 173 119 140 0 130 140 0 -10 140 105 4
4 16 140 173 114 140 173 119 140 105 4 140 117 4
4 16 140 173 109 140 173 114 140 117 4 140 152 4
4 16 140 152 4 140 164 4 140 176 103 140 173 109
4 16 140 176 -103 140 176 103 140 164 4 140 164 -8
3 16 140 176 -103 140 164 -8 140 164 -20
3 16 140 176 -103 140 164 -20 140 164 -32
3 16 140 176 -103 140 164 -32 140 164 -44
3 16 140 176 -103 140 164 -44 140 164 -56
3 16 140 176 -103 140 164 -56 140 164 -68
3 16 140 176 -103 140 164 -68 140 164 -80
4 16 140 173 -109 140 176 -103 140 164 -80 140 164 -92
4 16 140 173 -114 140 173 -109 140 164 -92 140 152 -92
4 16 140 173 -119 140 173 -114 140 152 -92 140 117 -92
4 16 140 176 -125 140 173 -119 140 117 -92 140 105 -92
4 16 140 176 -130 140 176 -125 140 105 -92 140 69.282 -130
4 16 140 69.282 -130 140 105 -92 140 105 -80 140 0 -10
3 16 140 0 -10 140 105 -80 140 105 -68
3 16 140 0 -10 140 105 -68 140 105 -56
3 16 140 0 -10 140 105 -56 140 105 -44
3 16 140 0 -10 140 105 -44 140 105 -32
3 16 140 0 -10 140 105 -32 140 105 -20
3 16 140 0 -10 140 105 -20 140 105 -8
3 16 140 0 -10 140 105 -8 140 105 4
1 16 -140 164.6864 -70 0 1 0 0 0 -11 11 0 0 2-4ndis.dat
4 16 -140 173 -119 -140 176 -125 -140 176 -130 -140 69.282 -130
4 16 -140 0 -10 -140 173 -114 -140 173 -119 -140 69.282 -130
4 16 -140 0 -10 -140 0 130 -140 153.6864 -59 -140 153.6864 -70
4 16 -140 164.6864 -59 -140 153.6864 -59 -140 0 130 -140 173 109
3 16 -140 164.6864 -81 -140 173 -109 -140 153.6864 -81
4 16 -140 173 -114 -140 0 -10 -140 153.6864 -81 -140 173 -109
3 16 -140 153.6864 -81 -140 0 -10 -140 153.6864 -70
4 16 -140 164.6864 -81 -140 176 -81 -140 176 -103 -140 173 -109
4 16 -140 173 109 -140 176 103 -140 176 -59 -140 164.6864 -59
3 16 -140 173 109 -140 0 130 -140 173 114
3 16 -140 173 114 -140 0 130 -140 173 119
4 16 -140 0 130 -140 176 130 -140 176 125 -140 173 119
0 BFC INVERTNEXT
1 16 -140 164.6864 -70 0 4 0 0 0 -11 11 0 0 2-4cylo.dat
1 16 -138 170.3432 -59 -2 0 0 0 0 5.6568 0 1 0 rect3.dat
1 16 -138 170.3432 -81 -2 0 0 0 0 5.6568 0 -1 0 rect3.dat
0 // Red Dot for the Lamp (hole has 8mm)
1 4 -116 12 -30.784 1 0 0 0 .866 -.5 0 .5 .866 s\u9602s02.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2023-07-08 13:06:46
2023-07-08 14:58:24
AFAIK you can't, but if you add this to your stud.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 1 logo.dat
all parts will be displayed with a stud logo.
And add this:
1 16 0 0 0 0.6 0 0 0 1 0 0 0 0.6 logo.dat
to stud2.dat to have a logo in the hollow studs
1 16 0 -4 0 1 0 0 0 1 0 0 0 1 logo.dat
all parts will be displayed with a stud logo.
And add this:
1 16 0 0 0 0.6 0 0 0 1 0 0 0 0.6 logo.dat
to stud2.dat to have a logo in the hollow studs
2023-07-09 15:20:50
you can check the logo:
RIght Click -> View Action -> Stud Logo
RIght Click -> View Action -> Stud Logo
2023-07-12 20:04:48
Might you be able to use a skewed box2-7 primitive for the other side where the studs are?
2024-01-06 14:45:20
"parts/s/740as01.dat" to "parts/s/u9602.dat"
2024-01-06 14:45:59
"parts/s/u9602.dat" to "parts/u9602.dat"
The origin need to be on the top stud surface.
2024-01-06 17:09:11
only the top or the whole assembly who needs the origin on the top?
thanks for the renumbering, cleaned it a bit...
2024-01-07 08:48:32
Parts with studs should always have the origin on the top surface.
The bottom has no studs, and is ok.
The bottom has no studs, and is ok.
the red dot is a separate piece of plastic and should become a ~part IMHO
* No need for a 48er
1 4 -116 -180.866 -31.2846 12.5 0 0 0 .866 -6.25 0 .5 10.825 48\4-4cylc.dat
* Origin is wrong
1 4 -116 -180.866 -31.2846 12.5 0 0 0 .866 -6.25 0 .5 10.825 48\4-4cylc.dat
* Origin is wrong
2024-05-29 15:57:28
should the origin be at the center of the top studs or at the top face, centered on the whole part?
should I do another subfile for the electrics?
should I do another subfile for the electrics?
2024-05-29 16:23:40
* Good question. I'd say treat the top as it would be a 7 x 14 Plate/Brick.
* As Steffen remarked. The pins of the base have to go into a sub.
* As Steffen remarked. The pins of the base have to go into a sub.
2024-05-29 16:25:01
* I don't care about metal rivets in a plastic part. Magnus does, so probably that should subbed as well.
2024-05-29 16:29:54
should that origin then also be the origin of the whole assembly?
2024-05-29 17:06:52
Sure!
2024-09-28 10:11:45
should i include the hole/cutout for the cable?
fixed the origin
2025-08-26 06:40:10
* Rects (FMEO)
