Unofficial File parts/833.dat
Part Attributes:
File Header:

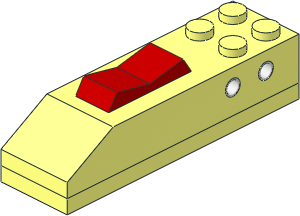

0 Electric Switch: Remote Control for Train Point 2 x 7 (Complete)
0 Name: 833.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place 3068ap01.dat and 3068ap02.dat
0 !HELP 1 15 0 -8 0 1 0 0 0 1 0 0 0 1 3068ap01.dat
0 !HELP place electrical plugs like 567c01.dat or 567c04.dat
0 !HELP 1 1 20 10 -10 0 0 1 0 -1 0 1 0 0 567c01.dat
0 !HELP place switch plugs like u9608c01.dat or u9608c02.dat
0 !HELP 1 1 0 19 20 -1 0 0 0 -1 0 0 0 1 u9608c01.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 7852, Rebrickable 7852, Set 753, Set 754, Train
0 !CMDLINE -c1
0 !HISTORY 2024-02-15 [Steffen] separated into ~parts
0 !HISTORY 2024-11-11 [Blechtaler] moved origin to top, separated electric contacts
Show contents
1 16 0 32 -50 1 0 0 0 1 0 0 0 1 u9256.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9257.dat
1 4 0 0 -60 1 0 0 0 1 0 0 0 1 u9258.dat
1 494 0 0 0 1 0 0 0 1 0 0 0 1 u9259.dat
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2023-09-13 10:16:49
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2023-09-15 10:02:20
better description and help
Steffen [Steffen]
posted a vote of Hold
2024-02-11 04:49:38
wrong type, this is a shortcut, not a part.
we need 3 ~parts which comprise this: the top, the bottom and the red switch
we need 3 ~parts which comprise this: the top, the bottom and the red switch
Rene Rechthaler [Blechtaler]
made the following comment.
2024-02-11 10:32:00
I know that, but I dont have that part (does anyone else?)
I am not even sure about the number/name...
I am not even sure about the number/name...
Steffen [Steffen]
submitted a new version of the part (all votes reset).
2024-02-15 18:28:08
split file into ~parts
Steffen [Steffen]
submitted a new version of the part (all votes reset).
2024-02-15 18:28:28
corrected title
Steffen [Steffen]
made the following comment.
2024-02-15 18:36:12
btw I have this part :) hurray
thanks for modeling it
I will come back and check its dimensions etc once I got hold of it from the attic
thanks for modeling it
I will come back and check its dimensions etc once I got hold of it from the attic
Rene Rechthaler [Blechtaler]
made the following comment.
2024-02-15 20:47:16
thanks for the split...
If you are searching for your part, do you also have the corresponding triple plug? (this one also should be checked)
If you are searching for your part, do you also have the corresponding triple plug? (this one also should be checked)
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-11-11 21:32:02
moved origin to top, separated contacts
Rene Rechthaler [Blechtaler]
made the following comment.
2024-11-11 21:32:48
got better pictures and dimensions
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-15 07:04:42
* There is a slit around the switch.
Willy Tschager [Holly-Wood]
posted a vote of Certify
2026-07-01 06:04:20
Creative Commons Attribution License information
This part is copyright ©
Rene Rechthaler
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Steffen
if someone has that part, respond if dimensions are wrong...
