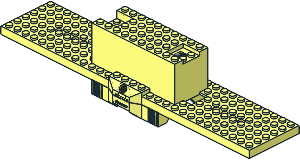

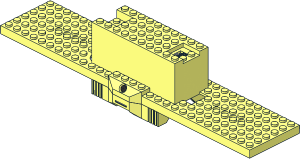

0 Train Base 6 x 30 Assembly without Battery Holder and Battery Cover
0 Name: 55455c01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // IR Channel Selector
0 // Channel 1: 1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9570.dat
0 // Channel 2: 1 16 0 0 5 1 0 0 0 1 0 0 0 1 u9570.dat
0 // Channel 3: 1 16 0 0 10 1 0 0 0 1 0 0 0 1 u9570.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9570.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 55455.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9542.dat
1 16 0 16 0 1 0 0 0 1 0 0 0 1 55456.dat
1 494 -86.5 -34 -28.5 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 -86.5 -34 28.5 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 86.5 -29 -28.5 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 86.5 -29 28.5 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 25 -49 0 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 -38 -49 0 1 0 0 0 -1 0 0 0 -1 u9288.dat
1 494 0 10.5 -45 1 0 0 0 -1 0 0 0 -1 u9549.dat
1 494 0 10.5 45 1 0 0 0 -1 0 0 0 -1 u9549.dat
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/55455.dat (Needs 1 More Vote)
parts/55456.dat (Needs 1 More Vote)
parts/u9570.dat (Needs 1 More Vote)
parts/u9542.dat (Needs 1 More Vote)
parts/s/55455s01.dat (Needs 1 More Vote)
parts/s/55455s03.dat (Needs 1 More Vote)
parts/s/55456s01.dat (Needs 1 More Vote)
parts/u9245.dat (Needs 1 More Vote)
parts/s/55455s02.dat (Needs 1 More Vote)
parts/s/55456s02.dat (Needs 1 More Vote)
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2024-05-17 13:20:15
2024-05-17 13:21:42
2024-05-17 15:15:01
should it be split into several shortcuts? like the things you can open and those you can disassemble (for example train base+electronics cover into one shortcut and then another one with this and battery cover)
2024-05-17 15:29:54
Correct, that is the final goal.
I hope the "number people" will find proper numbers for the assemblies.
e.g.: inseperable (without a tool) are
- Assembly-1 : 55455, 55456, PCB, IR Receivers switches, screws -> that needs an assembly number
- Assembly-2 : Battery Pack consisting of 55461, 55462, 55463, plus contacts and screws
seperable by hand and intended to be seperated are then:
- Shortcut-1 : Assembly-2 plus batteries
- Shortcut-2 : Assembly-1 , Shortcut-1, 55457
So this need a few numbers more.
To add, there are two different IR Receiver Diodes available -> Those are worth modeling, as they a very distinctive
And to add insult to injury, from what I counted so far, at least three different colours for the IR Channel switch (but that does not bother me)
I hope the "number people" will find proper numbers for the assemblies.
e.g.: inseperable (without a tool) are
- Assembly-1 : 55455, 55456, PCB, IR Receivers switches, screws -> that needs an assembly number
- Assembly-2 : Battery Pack consisting of 55461, 55462, 55463, plus contacts and screws
seperable by hand and intended to be seperated are then:
- Shortcut-1 : Assembly-2 plus batteries
- Shortcut-2 : Assembly-1 , Shortcut-1, 55457
So this need a few numbers more.
To add, there are two different IR Receiver Diodes available -> Those are worth modeling, as they a very distinctive
And to add insult to injury, from what I counted so far, at least three different colours for the IR Channel switch (but that does not bother me)
2024-05-22 22:03:25
2024-07-21 12:48:40
Creative Commons Attribution License information
This part is copyright ©
Gerald Lasser
Licensed under
CC BY 4.0
VISIBLE:
- Power-On Button
- IR Channel Selector
- IR Receiver Diode
- On-LED (bottom)
INVISIBLE
- Lots of screws
- Battery Pack Assembly (Three seperate parts)
- PCB
