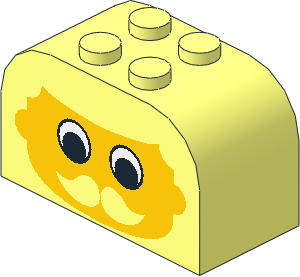

0 Brick 2 x 4 x 2 with Curved Top with Man Face with Moustache Pattern
0 Name: 4744p03.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS basic, Bricklink 4744px15, dacta, Dad, Father, fireman, Freestyle
0 !KEYWORDS Rebrickable 4744pr0007, Set 1504, Set 1688, Set 1699, Set 1701
0 !KEYWORDS Set 1703, Set 1706, Set 1716, Set 345, Set 4145, Set 4169, Set 4213
0 !KEYWORDS Set 9253, Set 9255
0 !HISTORY 2004-09-15 [PTadmin] Official Update 2004-03
0 !HISTORY 2007-07-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-07-08 [KnightOfTarenta] Corrected Moustache Colour, error fixes
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4744s01.dat
4 16 -40 48 20 -40 20 20 40 20 20 40 48 20
4 16 -40 20 20 -20 0 20 20 0 20 40 20 20
1 16 20 20 20 20 0 0 0 0 -20 0 -1 0 1-4chrd.dat
1 16 -20 20 20 -20 0 0 0 0 -20 0 -1 0 1-4chrd.dat
0 // Pattern
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4744p03s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4744p03s01.dat
3 16 20 0 -20 -20 0 -20 0 15.5 -20
3 16 0 47 -20 -40 48 -20 40 48 -20
3 14 .25 43.8 -20 -.25 43.8 -20 0 47 -20
3 14 0 15.5 -20 -.25 33.6 -20 .25 33.6 -20
4 14 -.25 33.6 -20 -.25 38.1 -20 .25 38.1 -20 .25 33.6 -20
4 14 .25 39.3 -20 .25 38.1 -20 -.25 38.1 -20 -.25 39.3 -20
4 14 .25 43.8 -20 .25 39.3 -20 -.25 39.3 -20 -.25 43.8 -20
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
should the eyes also be made of prims? (like the basic bricks with eye prints)
*updated eyes with prims
The suggested 2x2 bricks had a very high accuracy (>4 decimals) to match the 48-prims. Unificator wont let it pass otherwise. I guess this ok?
I tried to replace the hair line with a 1-4 chrd+ndis, but I couldn't find a way to avoid the resulting T-junc at the connecting prim :(
1 2 0 11.5 -20 23.5 0 0 0 0 4 0 1 0 1-4chrd.dat
1 4 0 11.5 -20 23.5 0 0 0 0 4 0 1 0 1-4ndis.dat
keywords:
basic, Bricklink 4744px15, dacta, Freestyle, Rebrickable 4744pr0007, Set 1504, Set 1688, Set 1699, Set 1701, Set 1703, Set 1706, Set 1716, Set 345, Set 4145, Set 4169, Set 4213, Set 9253, Set 9255
to
Freestyle, Set 1504, Set 1688, Set 1699, Set 1701, Set 1703, Set 1706, Set 1716, Set 345, Set 4145, Set 4169, Set 4213, Set 9253, Set 9255, basic, dacta, Father, Dad, Fireman, Bricklink 4744px15, Rebrickable 4744pr0007
description:
Brick 2 x 4 x 2 with Curved Top with Face/Moustache Pattern
to
Brick 2 x 4 x 2 with Curved Top with Man Face with Moustache Pattern
Changed name and added keywords.
Not happy with the old name and it's "/" - Lego calls this "Dad", since it first appeared in the "Family Bucket" set as exactly that. Other sites call it "Male Face" or similar.
This part is copyright © Chris Dee
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Chris Böhnke,
*added the little gap between the moustache halves, reworked curves
*changed to CCW
*added some prims
*fixed t-junc/overlaps on pattern
*fixed t-junc on backface
*added Keywords
