Unofficial File parts/87080.dat
View official version of part
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

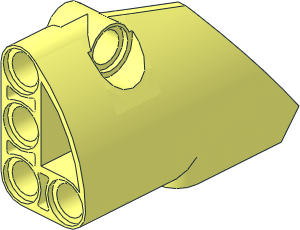

Technic Panel Fairing Smooth #1 (Short)
File Header:
0 Technic Panel Fairing Smooth #1 (Short) 0 Name: 87080.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02 0 !HISTORY 2024-10-20 [jb70] subfiled to s\87080s05.dat
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\64683s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87080s05.dat 4 16 9 10 40 9 10 78 9 0 86 9 0 40 4 16 8.336 -8.558 30 9 0 30 9 0 86 8.336 -8.558 79.476 4 16 6.365 -16.971 30 8.336 -8.558 30 8.336 -8.558 79.476 6.365 -16.971 73.062 4 16 3.121 -25.096 30 6.365 -16.971 30 6.365 -16.971 73.062 3.121 -25.096 66.868 4 16 -1.353 -32.789 30 3.121 -25.096 30 3.121 -25.096 66.868 -1.353 -32.789 61.004 4 16 -6.962 -39.923 30 -1.353 -32.789 30 -1.353 -32.789 61.004 -6.962 -39.923 55.564 4 16 -13.629 -46.37 30 -6.962 -39.923 30 -6.962 -39.923 55.564 -9.627 -42.5 53.6 3 16 -9.627 -42.5 53.6 -13.629 -46.37 32.82 -13.629 -46.37 30 3 16 -13.629 -46.37 30 -13.629 -46.37 32.82 -14.273 -46.895 30
Status:
Not releaseable Awaiting Admin Review (CCF) Awaiting Admin Review (CCF)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
RainbowDolphin Certify
Blechtaler Certify
Official parents and subparts
Part Events:
Archived Part Events:
None
Jens Brühl [jb70]
Part Author
initially submitted the part.
2024-10-20 23:18:51
Subfiled to be used with patterned parts
Jens Brühl [jb70]
Part Author
submitted a new version of the part.
2024-10-21 17:14:10
Moved 1 quad from sub part to main parts
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-10-22 21:57:40
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2024-10-22 22:01:14
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
