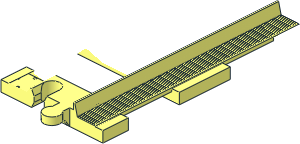

~Duplo Train Track Straight 4 x 8 - Half

File Header:

0 ~Duplo Train Track Straight  4 x  8 - Half
0 Name: s\6377s01.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2013-01-10 [MMR1988] BFC'ed, add license, replace of quads by boxes and rects, rewrite some ares
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2024-11-22 [WUIt] Used subfile for tracks, moved origin to point of symmetry, and merged symmetric elements across the split
0 !HISTORY 2025-02-14 [WUIt] Rearranged to more subparts, corrected underside, and removed several T-junctions around middle sleeper
