Unofficial File parts/92409.dat
Part Attributes:
File Header:

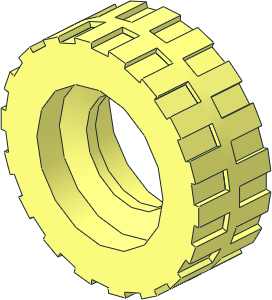

0 Tyre 6.4/ 75 x 8 Shallow Offset Tread with Centre Band
0 Name: 92409.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2018-01-30 [PTadmin] Official Update 2018-01
0 !HISTORY 2025-02-20 [Blechtaler] subfiled Sidewall with ndis
Show contents
0 // Nomenclature: width_(mm)/profile_as_%age_of_width x rim_diameter_(mm)
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .939693 .34202 0 -.34202 .939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .766044 .642788 0 -.642788 .766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .5 .866025 0 -.866025 .5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .173648 .984808 0 -.984808 .173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.173648 .984808 0 -.984808 -.173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.5 .866025 0 -.866025 -.5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.766044 .642788 0 -.642788 -.766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.939693 .34202 0 -.34202 -.939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.939693 -.34202 0 .34202 -.939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.766044 -.642788 0 .642788 -.766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.5 -.866025 0 .866025 -.5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.173648 -.984808 0 .984808 -.173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .173648 -.984808 0 .984808 .173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .5 -.866025 0 .866025 .5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .766044 -.642788 0 .642788 .766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .939693 -.34202 0 .34202 .939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.984808 .173648 0 .173648 .984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.984808 -.173648 0 -.173648 .984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.866025 -.5 0 -.5 .866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.642788 -.766044 0 -.766044 .642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.34202 -.939693 0 -.939693 .34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .34202 -.939693 0 -.939693 -.34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .642788 -.766044 0 -.766044 -.642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .866025 -.5 0 -.5 -.866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .984808 -.173648 0 -.173648 -.984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .984808 .173648 0 .173648 -.984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .866025 .5 0 .5 -.866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .642788 .766044 0 .766044 -.642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .34202 .939693 0 .939693 -.34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.34202 .939693 0 .939693 .34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.642788 .766044 0 .766044 .642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.866025 .5 0 .5 .866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\92409s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\92409s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\92409s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\92409s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 -1 s\92409s02.dat
0 BFC INVERTNEXT
1 16 0 0 8 14 0 0 0 0 14 0 -5 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 3 2 0 0 0 0 2 0 -1 0 4-4con6.dat
0 BFC INVERTNEXT
1 16 0 0 2 2 0 0 0 0 2 0 -1 0 4-4con5.dat
0 BFC INVERTNEXT
1 16 0 0 -1 -10 0 0 0 0 10 0 2 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -2 -2 0 0 0 0 2 0 1 0 4-4con5.dat
0 BFC INVERTNEXT
1 16 0 0 -3 -2 0 0 0 0 2 0 1 0 4-4con6.dat
0 BFC INVERTNEXT
1 16 0 0 -8 -14 0 0 0 0 14 0 5 0 4-4cylo.dat
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
with ndis in the sidewall to avoid overlap in the assembly
2025-08-02 10:02:43
2025-08-15 09:56:00
* Another of those fixes nobody asked for. You should have at least have the grace to fix it correctly:
2 25 -14.848 14.85 8 -14.8490867356 14.8489923948 8
2 25 -14.8 14.8 7.9 -14.8490867356 14.8489923948 8
2 25 -12.046 17.201 8 -12.0450214776 17.2019736466 8
2 25 -14.848 14.85 8 -14.8490867356 14.8489923948 8
2 25 -14.8 14.8 7.9 -14.8490867356 14.8489923948 8
2 25 -12.046 17.201 8 -12.0450214776 17.2019736466 8
2025-08-27 08:14:43
thats from the rotated segments (should I fix these too?)
2025-08-27 13:41:43
2025-09-24 17:24:51
should I do this like the https://library.ldraw.org/parts/44662? and expand the tread subfile to 1/8?
2025-09-27 10:52:24
* I don't care what you do with them. You brought it back, now get rid of it.
