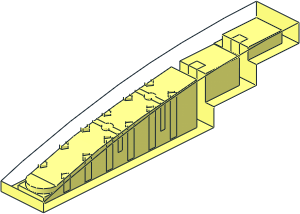

~Slope Brick Curved 6 x 1 x 1 without Patternable Surfaces

File Header:

0 ~Slope Brick Curved  6 x  1 x  1 without Patternable Surfaces
0 Name: s\6801s00.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-03-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-03-01 [GeraldLasser] File preparation for LDraw Parts Tracker

Show contents

0 // Bottom
4 16 10 24 -60 6 24 -50 6 24 16 10 24 20
3 16 6 24 -56 6 24 -50 10 24 -60
4 16 -10 24 -60 -6 24 -56 6 24 -56 10 24 -60
3 16 -6 24 -50 -6 24 -56 -10 24 -60
4 16 -10 24 -60 -10 24 20 -6 24 16 -6 24 -50
4 16 -10 24 20 10 24 20 6 24 16 -6 24 16
1 16 0 24 -20 10 0 0 0 1 0 0 0 40 recte4.dat
2 24 6 24 -50 6 24 16
2 24 -6 24 16 -6 24 -50
0 BFC INVERTNEXT
1 16 0 22.75 -50 0 0 6 -1.25 0 0 0 -6 0 box3u4a.dat
1 16 0 21.5 -50 6 0 0 0 -1 0 0 0 -6 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 21.5 -50 6 0 0 0 -2 0 0 0 -6 2-4cylo.dat
1 16 0 19.5 -50 6 0 0 0 -1 0 0 0 -6 2-4chrd.dat

3 16 6 13.5 -30 6 9.5 -10 6 5.6 16
4 16 6 5.6 16 6 21.5 -50 6 19.5 -50 6 13.5 -30
1 16 0 14.8 16 0 0 -6 -9.2 0 0 0 1 0 rect.dat
4 16 6 24 -50 6 21.5 -50 6 5.6 16 6 24 16
3 16 -6 13.5 -30 -6 19.5 -50 -6 21.5 -50
4 16 -6 21.5 -50 -6 5.6 16 -6 9.5 -10 -6 13.5 -30
4 16 -6 5.6 16 -6 21.5 -50 -6 24 -50 -6 24 16
1 16 0 7.55 3 0 0 -6 1.95 -1 0 -13 0 0 rect2p.dat
1 16 0 16.5 -40 6 0 0 0 -1 3 0 0 -10 rect3.dat
1 16 0 11.5 -20 0 0 6 -2 -1 0 10 0 0 rect2p.dat
5 24 -6 13.5 -30 6 13.5 -30 -6 9.5 -10 6 19.5 -50
5 24 6 9.5 -10 -6 9.5 -10 6 13.5 -30 -6 5.6 16

1 16 0 18.5 -20 1 0 0 0 7.5 0 0 0 1 filletcyla.dat
1 16 0 18.5 0 1 0 0 0 11 0 0 0 1 filletcyla.dat
1 16 0 11.5 -20 1 0 0 0 1 -.2 0 0 1 filletcyle.dat
1 16 0 8 0 1 0 0 0 1 -.15 0 0 1 filletcyle.dat

1 16 -6 23.5 5 0 0 1 0 17 0 -1 0 0 ridgea.dat
1 16 -6 23.5 -5 0 0 1 0 15.5 0 -1 0 0 ridgea.dat
1 16 -6 23.5 -15 0 0 1 0 13.5 0 -1 0 0 ridgea.dat
1 16 -6 23.5 -25 0 0 1 0 12 0 -1 0 0 ridgea.dat
1 16 -6 23.5 -35 0 0 1 0 9.5 0 -1 0 0 ridgea.dat
1 16 -6 23.5 -45 0 0 1 0 6 0 -1 0 0 ridgea.dat
1 16 -6 7.25 5 0 0 1 .15 1 0 -1 0 0 ridgee.dat
1 16 -6 8.75 -5 0 0 1 .15 1 0 -1 0 0 ridgee.dat
1 16 -6 10.5 -15 0 0 1 .2 1 0 -1 0 0 ridgee.dat
1 16 -6 12.5 -25 0 0 1 .2 1 0 -1 0 0 ridgee.dat
1 16 -6 15 -35 0 0 1 .3 1 0 -1 0 0 ridgee.dat
1 16 -6 18 -45 0 0 1 .3 1 0 -1 0 0 ridgee.dat
1 16 6 23.5 5 0 0 -1 0 17 0 -1 0 0 ridgea.dat
1 16 6 23.5 -5 0 0 -1 0 15.5 0 -1 0 0 ridgea.dat
1 16 6 23.5 -15 0 0 -1 0 13.5 0 -1 0 0 ridgea.dat
1 16 6 23.5 -25 0 0 -1 0 12 0 -1 0 0 ridgea.dat
1 16 6 23.5 -35 0 0 -1 0 9.5 0 -1 0 0 ridgea.dat
1 16 6 23.5 -45 0 0 -1 0 6 0 -1 0 0 ridgea.dat
1 16 6 7.25 5 0 0 -1 .15 1 0 -1 0 0 ridgee.dat
1 16 6 8.75 -5 0 0 -1 .15 1 0 -1 0 0 ridgee.dat
1 16 6 10.5 -15 0 0 -1 .2 1 0 -1 0 0 ridgee.dat
1 16 6 12.5 -25 0 0 -1 .2 1 0 -1 0 0 ridgee.dat
1 16 6 15 -35 0 0 -1 .3 1 0 -1 0 0 ridgee.dat
1 16 6 18 -45 0 0 -1 .3 1 0 -1 0 0 ridgee.dat

1 16 0 22 -60 10 0 0 0 0 -2 0 1 0 rect3.dat

3 16 6 16 20 10 16 20 10 24 20
3 16 -10 24 20 -10 16 20 -6 16 20
4 16 -6 16 20 6 16 20 10 24 20 -10 24 20
4 16 10 16 40 10 16 20 6 16 20 6 16 36
4 16 6 16 36 -6 16 36 -10 16 40 10 16 40
4 16 -10 16 40 -6 16 36 -6 16 20 -10 16 20
2 24 6 16 20 10 16 20
2 24 -10 16 20 -6 16 20
2 24 10 16 20 10 24 20
2 24 -10 16 20 -10 24 20
1 16 0 16 30 10 0 0 0 1 0 0 0 10 recte3.dat
0 BFC INVERTNEXT
1 16 0 16 28 6 0 0 0 -11 0 0 0 8 box5-1.dat
1 16 0 10.5 20 -2 0 0 0 0 5.5 0 4 0 box4-1.dat

3 16 6 8 40 10 8 40 10 16 40
3 16 -10 16 40 -10 8 40 -6 8 40
4 16 -6 8 40 6 8 40 10 16 40 -10 16 40
4 16 10 8 60 10 8 40 6 8 40 6 8 56
4 16 6 8 56 -6 8 56 -10 8 60 10 8 60
4 16 -10 8 60 -6 8 56 -6 8 40 -10 8 40
2 24 6 8 40 10 8 40
2 24 -10 8 40 -6 8 40
2 24 10 8 40 10 16 40
2 24 -10 8 40 -10 16 40

1 16 0 8 50 10 0 0 0 1 0 0 0 10 recte3.dat
0 BFC INVERTNEXT
1 16 0 8 48 6 0 0 0 -5 0 0 0 8 box5-1.dat
1 16 0 5.5 40 -2 0 0 0 0 2.5 0 4 0 box4-1.dat

1 16 0 4 60 10 0 0 0 0 -4 0 -1 0 rect3.dat

0 // Lines / Condlines Surface
2 24 10 0 60 10 .2985 45
2 24 10 .2985 45 10 1.6133 25
2 24 10 1.6133 25 10 3.2728 10
2 24 10 3.2728 10 10 5.6256 -5
2 24 10 5.6256 -5 10 10.4533 -27.5
2 24 10 10.4533 -27.5 10 16.5938 -50
2 24 10 16.5938 -50 10 20 -60
2 24 -10 0 60 -10 .2985 45
2 24 -10 .2985 45 -10 1.6133 25
2 24 -10 1.6133 25 -10 3.2728 10
2 24 -10 3.2728 10 -10 5.6256 -5
2 24 -10 5.6256 -5 -10 10.4533 -27.5
2 24 -10 10.4533 -27.5 -10 16.5938 -50
2 24 -10 16.5938 -50 -10 20 -60
5 24 10 3.2728 10 -10 3.2728 10 10 1.6133 25 -10 5.6256 -5
5 24 -10 16.5938 -50 10 16.5938 -50 10 10.4533 -27.5 -10 20 -60
5 24 10 10.4533 -27.5 -10 10.4533 -27.5 10 5.6256 -5 -10 16.5938 -50
5 24 -10 5.6256 -5 10 5.6256 -5 10 3.2728 10 -10 10.4533 -27.5
5 24 -10 1.6133 25 10 1.6133 25 10 .2985 45 -10 3.2728 10
5 24 10 .2985 45 -10 .2985 45 10 0 60 -10 1.6133 25

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/filletcyle.dat (Needs More Votes)
p/filletcyla.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-03-06 14:23:13

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-05-06 14:55:08

Moved front lip to 4 LDU

Jeff Jones [notmaster]

made the following comment.

2025-05-06 15:03:21

remove history
