Unofficial File parts/14094.dat
Part Attributes:
File Header:

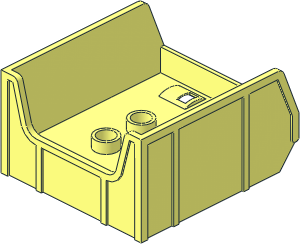

0 Duplo Small Tipper Bucket Bed with Lip and Cutout
0 Name: 14094.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place hinge plate with 1 5 0 5 -120 1 0 0 0 1 0 0 0 1 13355.dat
0 BFC CERTIFY CCW
Show contents
1 16 0 -19 -80 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
0 // halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\14094s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\14094s01.dat
0 // common lip
2 24 78 -19 20 -78 -19 20
2 24 74 -15 16.6667 -74 -15 16.6667
4 16 -78 -19 20 -74 -43 20 74 -43 20 78 -19 20
4 16 78 -19 20 74 -15 16.6667 -74 -15 16.6667 -78 -19 20
1 16 0 -31 18 -74 0 0 0 -12 0 0 0 -2 box2-5.dat
0 // common top
4 16 -74 -19 -40 74 -19 -40 18 -19 -12 -18 -19 -12
3 16 18 -19 -12 0 -19 16 -18 -19 -12
1 16 0 -19 -97 74 0 0 0 1 0 0 0 -57 rect3.dat
0 // common cutout
4 16 -74 -19 -154 -40 -43 -154 40 -43 -154 74 -19 -154
1 16 0 -43 -157 40 0 0 0 1 0 0 0 -3 rect2p.dat
4 16 -34 -37 -160 34 -37 -160 40 -43 -160 -40 -43 -160
0 BFC INVERTNEXT
1 16 0 -16 -159 34 0 0 0 -21 0 0 0 1 box2-9p.dat
4 16 -34 5 -158 -37 5 -154 37 5 -154 34 5 -158
0 // common bottom
1 16 0 -15 -80 1 0 0 0 -5 0 0 0 1 stud8.dat
0 BFC INVERTNEXT
1 16 0 -5 -4 0 0 74 10 0 0 0 -150 0 box3u2p.dat
4 16 -22 -15 -12 22 -15 -12 74 -15 -40 -74 -15 -40
4 16 -18 -15 -9 18 -15 -9 22 -15 -12 -22 -15 -12
3 16 0 -15 -2 18 -15 -9 -18 -15 -9
4 16 74 -15 -40 74 -15 -154 -74 -15 -154 -74 -15 -40
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-04 19:14:14
2025-05-14 09:14:55
Used more/different boxes as suggested.
2025-05-19 22:22:55
Apparently, the origin should be at the hinge.
Corrected origin to centre of hinge.
2025-06-08 09:04:01
2025-06-08 10:45:09
Needs a rotation 180 degree to match the orientation of the hinge base 13355, and all other tipper buckets.
The Help info is corrupt. You can't mirror a part like that.
The Help info is corrupt. You can't mirror a part like that.
Rotated 180° as suggested. Fixed HELP. Rotated subfiles to match.
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
1 16 0 24 17 74 0 0 0 -20 0 0 0 57 box4-4a.dat
Into a box3 to cover the vertical walls and add the horizontal surfaces required to close it partially into s01
The box3 should then also cover those areas
4 16 74 24 -76 74 4 -76 74 4 -40 74 24 -40
4 16 -74 24 -76 -74 4 -76 -74 4 -40 -74 24 -40
They would need to go from s02 (along with the edge lines which should come from box3)
Instead of
1 16 0 -24 -98 0 0 74 0 1 0 -2 0 0 rect.dat
4 16 74 0 -96 -74 0 -96 -74 -24 -96 74 -24 -96
Use
1 13 0 -12 -98 -74 0 0 0 -12 0 0 0 2 box2-5.dat
Be sure to remove the edges it will provide also in the subfiles, I think they are in s02
