Unofficial File parts/13607.dat
Part Attributes:
File Header:

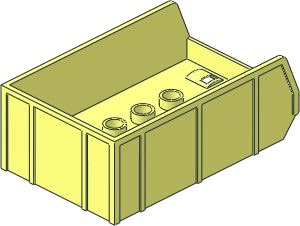

0 Duplo Long Tipper Bucket Bed with Lip
0 Name: 13607.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place hinge plate with 1 5 0 5 -120 1 0 0 0 1 0 0 0 1 13355.dat
0 BFC CERTIFY CCW
Show contents
1 16 0 -19 -160 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 -19 -80 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
0 // halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\13607s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\13607s01.dat
0 // common lip
2 24 78 -19 20 -78 -19 20
2 24 74 -15 16.6667 -74 -15 16.6667
1 16 0 -31 18 -74 0 0 0 -12 0 0 0 -2 box2-5.dat
4 16 -78 -19 20 -74 -43 20 74 -43 20 78 -19 20
4 16 78 -19 20 74 -15 16.6667 -74 -15 16.6667 -78 -19 20
0 // common top
4 16 -74 -19 -40 74 -19 -40 18 -19 -12 -18 -19 -12
3 16 18 -19 -12 0 -19 16 -18 -19 -12
1 16 0 -19 -137 74 0 0 0 1 0 0 0 -97 rect3.dat
0 // common back
0 BFC INVERTNEXT
1 16 0 -40 -239 34 0 0 0 -45 0 0 0 1 box2-9p.dat
4 16 -74 -91 -234 -80 -91 -240 80 -91 -240 74 -91 -234
4 16 -34 -85 -240 34 -85 -240 37 -91 -240 -37 -91 -240
2 24 80 -91 -240 -80 -91 -240
4 16 -34 5 -238 -37 5 -234 37 5 -234 34 5 -238
1 16 0 -55 -234 74 0 0 0 0 -36 0 -1 0 rect3.dat
0 // common bottom
1 16 0 -15 -160 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 0 -15 -80 1 0 0 0 -5 0 0 0 1 stud8.dat
0 BFC INVERTNEXT
1 16 0 -5 -4 0 0 74 10 0 0 0 -230 0 box3u2p.dat
4 16 -22 -15 -12 22 -15 -12 74 -15 -40 -74 -15 -40
4 16 -18 -15 -9 18 -15 -9 22 -15 -12 -22 -15 -12
3 16 0 -15 -2 18 -15 -9 -18 -15 -9
4 16 -74 -15 -40 74 -15 -40 74 -15 -234 -74 -15 -234
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-04 19:14:14
2025-05-14 09:18:59
I suggested a few changes for the sister part 14094, that should be taken into account here as well
Used more/different boxes as suggested.
as in 14094
this
1 16 0 -24 -138 0 0 74 0 1 0 -2 0 0 rect.dat
4 16 74 0 -136 -74 0 -136 -74 -24 -136 74 -24 -136
should use a (copied from 14094)
1 16 0 -12 -98 -74 0 0 0 -12 0 0 0 2 box2-5.dat
as edges are now misisng due to the rework of the subfiles
this
1 16 0 -24 -138 0 0 74 0 1 0 -2 0 0 rect.dat
4 16 74 0 -136 -74 0 -136 -74 -24 -136 74 -24 -136
should use a (copied from 14094)
1 16 0 -12 -98 -74 0 0 0 -12 0 0 0 2 box2-5.dat
as edges are now misisng due to the rework of the subfiles
Thanks!
Fixed as suggested.
Fixed as suggested.
2025-05-24 17:12:56
Apparently, the origin should be at the hinge.
Corrected origin to centre of hinge.
2025-06-08 09:04:20
2025-06-08 10:44:12
Needs a rotation 180 degree to match the orientation of the hinge base 13355, and all other tipper buckets.
The Help info is corrupt. You can't mirror a part like that.
The Help info is corrupt. You can't mirror a part like that.
Magnus is right, it should be oriented like to ohter tippers in the library. Part geometry is fine
Rotated 180° as suggested. Fixed HELP. Rotated subfiles to match.
