Unofficial File parts/17178.dat
Part Attributes:
File Header:

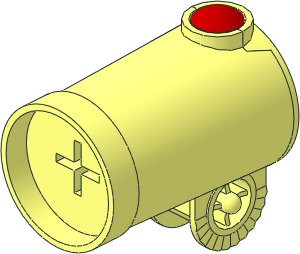

0 Duplo Cannon with Red Firing Button and Locking Ring
0 Name: 17178.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place cannon ball with 1 16 0 -55.5 -33.5 1 0 0 0 0 1 0 1 0 54043b.dat
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 17178c01, Rebrickable 17178c01
Show contents
0 // spring has not been modeled
0 // internal structure greatly simplified
0 // back piece
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 16702.dat
0 // front piece
1 16 0 0 0 1 0 0 0 1 0 0 0 1 16703.dat
0 // red button
1 4 0 -103.5 9.5 1 0 0 0 1 0 0 0 1 94887.dat
0 // screws
1 383 28.45 -55.5 -20.5 1 0 0 0 0 1 0 -1 0 u9013.dat
1 383 -28.45 -55.5 -20.5 1 0 0 0 0 1 0 -1 0 u9013.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/16702.dat (Needs More Votes)
parts/16703.dat (Needs More Votes)
parts/94887.dat (Needs More Votes)
parts/s/16702s01.dat (Needs More Votes)
parts/s/16703s01.dat (Needs More Votes)
parts/s/16702s02.dat (Needs More Votes)
parts/s/16703s02.dat (Needs More Votes)
parts/s/16703s04.dat (Needs More Votes)
parts/s/16702s03.dat (Needs More Votes)
p/48/7-48con32.dat (Needs More Votes)
parts/s/16703s03.dat (Needs More Votes)
Current Votes:
None
Official parents and subparts
Part Events:
2025-08-06 00:48:36
2025-08-06 12:35:13
The Help info seems off. Shouldn't it go deeper?
2025-08-06 16:31:04
Not deeper. This is the position when it is ready for firing. If pushed, it can go 4 LDU deeper, but the spring would then push it back to the position mentioned in Help.
Should the cavity allow this extra movement?
Should the cavity allow this extra movement?
