Unofficial File parts/84195.dat
Part Attributes:
File Header:

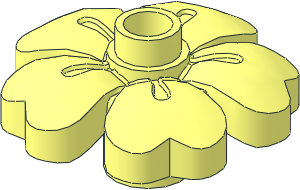

0 Duplo Flower with 5 Rounded Petals and 1 Top Stud
0 Name: 84195.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Plant
0 !HISTORY 2025-02-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-08-22 [WUIt] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 0 0 0 15 0 0 0 1 0 0 0 15 4-4disc.dat
1 16 0 0 0 15 0 0 0 1 0 0 0 15 4-4edge.dat
1 16 0 0 0 15 0 0 0 6 0 0 0 15 4-4cyli.dat
1 16 0 8 0 1 0 0 0 -10 0 0 0 1 stud8a.dat
1 16 13 5 0 0 0 -1 0 42 0 1.5 0 0 box4-4a.dat
1 16 -13 5 0 0 0 1 0 42 0 1.5 0 0 box4-4a.dat
1 16 0 5 0 14 0 0 0 -1 0 0 0 14 4-4disc.dat
1 16 0 5 0 14 0 0 0 -1 0 0 0 14 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 5 0 14 0 0 0 3 0 0 0 14 4-4cyli.dat
0 // halves
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\84195s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\84195s01.dat
5 24 25.2984 9.5 0 22.5582 9.1 0 25.8074 9.2 2.9285 25.8074 9.2 -2.9285
5 24 19.2332 9.7 0 15.1416 12.7 0 18.338 8 -3.682 18.338 8 3.682
5 24 25.2984 18.8 0 25.2984 9.5 0 26.344 18.8 -2.7004 26.344 18.8 2.7004
5 24 22.5582 9.1 0 19.2332 9.7 0 18.338 8 -3.682 18.338 8 3.682
0 // fifth petal
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\84195s02.dat
0 // fifth joiner
4 16 14.9556 5.5523 .2234 14.9556 5.5523 -.2234 16.5866 6.1 -.3082 16.5866 6.1 .3082
4 16 20.6304 6.1 .5269 16.5866 6.1 .3082 16.5866 6.1 -.3082 20.6304 6.1 -.5269
3 16 29.6707 18.8 0 29.4461 8.2 1.4931 29.4461 8.2 -1.4931
4 16 28.8652 6.8 -1.4419 29.4461 8.2 -1.4931 29.4461 8.2 1.4931 28.8652 6.8 1.4419
4 16 28.8652 6.8 -1.4419 28.8652 6.8 1.4419 27.4242 5.6 1.3838 27.4242 5.6 -1.3838
4 16 20.6304 6.1 -.5269 27.4242 5.6 -1.3838 27.4242 5.6 1.3838 20.6304 6.1 .5269
5 24 29.446 8.2 1.4931 29.446 8.2 -1.4931 29.6707 18.8 0 28.8652 6.8 1.4419
5 24 27.4242 5.6 1.3838 27.4242 5.6 -1.3838 28.8652 6.8 -1.4419 20.6304 6.1 .5269
5 24 28.8652 6.8 -1.4419 28.8652 6.8 1.4419 29.4461 8.2 -1.4931 27.4242 5.6 1.3838
5 24 20.6304 6.1 -.5269 20.6304 6.1 .5269 16.5866 6.1 .3082 27.4242 5.6 -1.3838
5 24 16.5866 6.1 .3082 16.5866 6.1 -.3082 14.9556 5.5523 .2234 20.6304 6.1 -.5269
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
Name/description too close/similar to 6510?
2025-08-30 21:58:34
Already in s01
2 24 5.3581 6.11 15.6748 4.5949 5.25 13.4618
2 24 -11.63 5.25 -8.19 -13.5482 6.11 -9.5318
2 24 14.2228 5.25 -.2101 16.5634 6.11 -.252
2 24 -11.383 5.25 8.5299 -13.2519 6.11 9.9396
2 24 4.8787 6.11 -15.8306 4.1953 5.25 -13.5916
2 24 -15.603 9.722 11.3363 -12.3087 12.7363 8.9428
2 24 5.9598 9.722 18.3424 4.7015 12.7363 14.4698
2 24 19.2864 9.722 0 15.2144 12.7363 0
2 24 4.7015 12.7363 -14.4698 5.9598 9.722 -18.3424
2 24 -15.603 9.722 -11.3363 -12.3087 12.7363 -8.9428
Rest is fine
2 24 5.3581 6.11 15.6748 4.5949 5.25 13.4618
2 24 -11.63 5.25 -8.19 -13.5482 6.11 -9.5318
2 24 14.2228 5.25 -.2101 16.5634 6.11 -.252
2 24 -11.383 5.25 8.5299 -13.2519 6.11 9.9396
2 24 4.8787 6.11 -15.8306 4.1953 5.25 -13.5916
2 24 -15.603 9.722 11.3363 -12.3087 12.7363 8.9428
2 24 5.9598 9.722 18.3424 4.7015 12.7363 14.4698
2 24 19.2864 9.722 0 15.2144 12.7363 0
2 24 4.7015 12.7363 -14.4698 5.9598 9.722 -18.3424
2 24 -15.603 9.722 -11.3363 -12.3087 12.7363 -8.9428
Rest is fine
forgot to hold
2025-08-30 22:03:05
6510 could be called "pointed Petals"
This one looks more like Hibiscus, doesn'T it?
"rounded petals"?
This one looks more like Hibiscus, doesn'T it?
"rounded petals"?
Removed superfluous edges
Rounded vertexes, rearranged content of subfiles.
Creative Commons Attribution License information
This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
