Unofficial File parts/70946.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

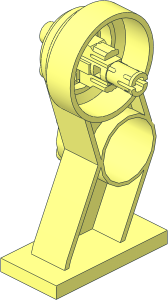

0 Figure Leg Mecha 2 x 4 x 6.333 Right with Friction Pin
0 Name: 70946.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Figure
0 !HISTORY 2025-02-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-03-06 [GeraldLasser] File preparation for LDraw Parts Tracker
Show file code
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\70943s01.dat
1 16 -40 -50 30 0 1 0 1 0 0 0 0 -1 studa.dat
1 16 -40 -70 30 0 1 0 1 0 0 0 0 -1 studa.dat
1 16 -40 -70 10 0 1 0 1 0 0 0 0 -1 studa.dat
1 16 -40 -50 10 0 1 0 1 0 0 0 0 -1 studa.dat
1 16 -32 -130 10 0 1 0 1 0 0 0 0 -1 stud2a.dat
1 16 -32 -110 10 0 1 0 1 0 0 0 0 -1 stud2.dat
1 16 -32 -130 -10 0 1 0 1 0 0 0 0 -1 stud2a.dat
1 16 -32 -110 -10 0 1 0 1 0 0 0 0 -1 stud2a.dat
1 16 0 -118 0 0 0 -1 0 1 0 1 0 0 s\70943s02.datStatus
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Gerald Lasser [GeraldLasser]
initially submitted the part.
2026-03-06 19:14:47
Magnus Forsberg [MagFors]
made the following comment.
2026-03-06 20:00:24
Isn't the pin missing?
Gerald Lasser [GeraldLasser]
made the following comment.
2026-03-06 20:04:07
Ah, will come
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2026-03-06 20:30:34
Javier Orquera [kuramapika1]
made the following comment.
2026-03-07 14:01:52
The description is wrong: right instead of lef. Also see: https://forums.ldraw.org/thread-29254-post-60097.html#pid60097
Javier Orquera [kuramapika1]
made the following comment.
2026-03-07 14:02:32
The description is wrong: left instead of right.
Javier Orquera [kuramapika1]
made the following comment.
2026-03-07 14:04:37
I'm sorry: my last comment is meant for part 70943.
Rene Rechthaler [Blechtaler]
made the following comment.
2026-03-07 14:20:51
the definition of "left" and "right" here is tied with "front/rear" (I think it is wrongly rotated, the "knee" should go towards the front)
