Unofficial File parts/30361b.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

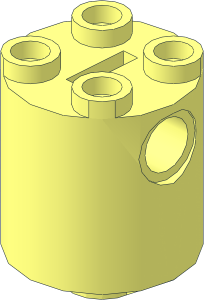

0 Cylinder 2 x 2 x 2 Robot Body with Bottom Axle Holder turned 45 Degrees
0 Name: 30361b.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Three versions are known:
0 !HELP 1999-2001: "... without Bottom Axle Holder" - 30361a.dat
0 !HELP 2002: "... with Bottom Axle Holder (x Shape / x Orientation)" - This File
0 !HELP since 2003: "... with Bottom Axle Holder (x Shape / + Orientation)" - 30361d.dat
0 BFC CERTIFY CCW
0 !CATEGORY Cylinder
0 !KEYWORDS Brickowl 337321Show file code:
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30361bs01.dat
0 // Front Face
1 16 0 30 0 14.14 0 -14.14 0 -40 0 -14.14 0 -14.14 1-4cyli.dat
3 16 18.25 0 -8 14.14 -10 -14.14 18.48 1.741 -7.654
3 16 -18.48 1.741 -7.654 -14.14 -10 -14.14 -18.25 0 -8
4 16 18.48 -1.741 -7.654 18.48 -10 -7.654 14.14 -10 -14.14 18.25 0 -8
4 16 18.48 1.741 -7.654 14.14 -10 -14.14 14.14 30 -14.14 18.48 30 -7.654
4 16 -18.25 0 -8 -14.14 -10 -14.14 -18.48 -10 -7.654 -18.48 -1.741 -7.654
4 16 -18.48 30 -7.654 -14.14 30 -14.14 -14.14 -10 -14.14 -18.48 1.741 -7.654
5 24 14.14 30 -14.14 14.14 -10 -14.14 7.653 30 -18.475 28.28 30 0
5 24 -14.14 30 -14.14 -14.14 -10 -14.14 -7.653 30 -18.475 -28.28 30 0Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-05-07 19:17:12
