Unofficial File parts/35965.dat
Part Attributes:
File Header:

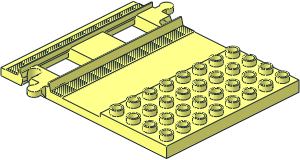

0 Duplo Train Track Straight with 4 x 8 Plate on Side
0 Name: 35965.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Train
Show contents
0 // based on parts 6377.dat and 10199.dat
0 // big sleeper
1 16 -120 0 0 1 0 0 0 1 0 0 0 1 s\6377s03.dat
0 // front sleeper
1 16 -120 0 0 1 0 0 0 1 0 0 0 1 s\6377s04.dat
0 // right track base
1 16 -120 0 0 1 0 0 0 1 0 0 0 1 s\6377s02.dat
0 // right track ribs
1 16 -67 6.5 0 1 0 0 0 1 0 0 0 1 s\35965s01.dat
0 // rear sleeper
1 16 -120 0 0 -1 0 0 0 1 0 0 0 -1 s\6377s04.dat
0 // left track base
1 16 -120 0 0 -1 0 0 0 1 0 0 0 1 s\6377s02.dat
0 // left track ribs
1 16 -173 6.5 0 1 0 0 0 1 0 0 0 1 s\35965s01.dat
0 // front sleeper front wall
4 16 -188 8 -160 -200 8 -160 -200 24 -160 -152 24 -160
4 16 -160 7 -160 -188 7 -160 -188 8 -160 -152 24 -160
4 16 -92 24 -160 -52 8 -160 -52 7 -160 -80 7 -160
0 // rear sleeper rear wall
4 16 -148 24 160 -200 24 160 -200 8 160 -188 8 160
4 16 -148 24 160 -188 8 160 -188 7 160 -160 7 160
4 16 -52 7 160 -52 8 160 -88 24 160 -80 7 160
0 // front sleeper rear wall
4 16 -86 2 -120 -154 2 -120 -154 0 -120 -86 0 -120
4 16 -157 8 -120 -154 2 -120 -86 2 -120 -83 8 -120
4 16 -157 19 -120 -157 8 -120 -83 8 -120 -83 19 -120
4 16 -56 12 -120 -40 12 -120 -40 24 -120 -79 19 -120
4 16 -196 12 -120 -184 12 -120 -161 19 -120 -196 24 -120
4 16 -161 19 -120 -79 19 -120 -40 24 -120 -196 24 -120
2 24 -154 0 -120 -86 0 -120
0 // rear sleeper front wall
4 16 -154 2 120 -86 2 120 -86 0 120 -154 0 120
4 16 -83 8 120 -86 2 120 -154 2 120 -157 8 120
4 16 -83 19 120 -83 8 120 -157 8 120 -157 19 120
4 16 -40 24 120 -40 12 120 -56 12 120 -79 19 120
4 16 -196 12 120 -196 24 120 -161 19 120 -184 12 120
4 16 -161 19 120 -196 24 120 -40 24 120 -79 19 120
2 24 -86 0 120 -154 0 120
0 // top surfaces
1 16 -6 8 0 0 0 46 0 1 0 160 0 0 rect.dat
1 16 120 12 0 0 0 80 0 -12 0 160 0 0 box2-5.dat
1 16 -194 16 0 0 0 -6 0 -8 0 160 0 0 box2-5.dat
4 16 40 0 -160 40 0 160 40 8 160 40 8 -160
2 24 40 0 160 40 8 160
2 24 40 0 -160 40 8 -160
4 16 -52 7 -160 -52 8 -160 -52 8 160 -52 7 160
4 16 -188 7 160 -188 8 160 -188 8 -160 -188 7 -160
0 // bottom spacer surface
1 16 0 12 0 0 0 40 0 -1 0 156 0 0 rect3.dat
1 16 -48 12 -80 0 0 -8 0 -1 0 40 0 0 rect3.dat
1 16 -48 12 80 0 0 -8 0 -1 0 40 0 0 rect3.dat
1 16 -190 12 -80 0 0 -6 0 -1 0 40 0 0 rect.dat
1 16 -190 12 80 0 0 -6 0 -1 0 40 0 0 rect.dat
1 16 40 18 0 0 1 0 0 0 6 156 0 0 rect3.dat
0 // bottom helm of track end
4 16 -152 24 -160 -200 24 -160 -196 24 -156 -156 24 -156
4 16 -200 24 -160 -200 24 160 -196 24 156 -196 24 -156
3 16 -196 24 -120 -82 24 -124 -196 24 -124
4 16 -196 24 -120 -40 24 -120 -78 24 -124 -82 24 -124
3 16 -44 24 -124 -78 24 -124 -40 24 -120
4 16 -40 24 -156 -44 24 -156 -44 24 -124 -40 24 -120
2 24 -196 24 -120 -40 24 -120
2 24 200 24 -160 -128 24 -160
2 24 -200 24 -160 -152 24 -160
2 24 40 24 -156 -40 24 -156
0 // bottom helm of track middle
4 16 -40 24 -40 -196 24 -40 -196 24 -36 -44 24 -36
4 16 -196 24 40 -40 24 40 -44 24 36 -196 24 36
4 16 -44 24 36 -40 24 40 -40 24 -40 -44 24 -36
0 // bottom helm of other track end
4 16 -40 24 156 -40 24 120 -44 24 124 -44 24 156
3 16 -40 24 120 -158 24 124 -44 24 124
4 16 -40 24 120 -196 24 120 -162 24 124 -158 24 124
3 16 -196 24 124 -162 24 124 -196 24 120
3 16 -200 24 160 -162 24 156 -196 24 156
4 16 -158 24 156 -162 24 156 -200 24 160 -112 24 160
2 24 -40 24 120 -196 24 120
2 24 -200 24 160 -112 24 160
2 24 200 24 160 -88 24 160
2 24 40 24 156 -40 24 156
0 // bottom helm of plate
4 16 200 24 160 200 24 -160 196 24 -156 196 24 156
4 16 200 24 -160 -128 24 -160 -82 24 -156 196 24 -156
4 16 40 24 -156 40 24 156 44 24 156 44 24 -156
3 16 -88 24 160 -44 24 156 -84 24 156
4 16 -44 24 156 -88 24 160 200 24 160 196 24 156
0 // front surfaces
4 16 -92 24 -160 200 24 -160 40 8 -160 -52 8 -160
4 16 200 0 -160 40 0 -160 40 8 -160 200 24 -160
1 16 -40 18 -138 0 -1 0 0 0 6 18 0 0 rect.dat
4 16 -40 24 -156 -40 12 -156 40 12 -156 40 24 -156
0 // back surfaces
4 16 -88 24 160 -52 8 160 40 8 160 200 24 160
4 16 200 0 160 200 24 160 40 8 160 40 0 160
4 16 40 24 156 40 12 156 -40 12 156 -40 24 156
1 16 -40 18 138 0 -1 0 0 0 6 18 0 0 rect.dat
0 // left surfaces
1 16 -196 18 80 0 -1 0 0 0 6 40 0 0 rect3.dat
1 16 -196 18 -80 0 -1 0 0 0 6 40 0 0 rect3.dat
0 // track middle box outer vertical
4 16 -40 24 40 -79 19 40 -56 12 40 -40 12 40
4 16 -196 12 40 -184 12 40 -161 19 40 -196 24 40
4 16 -161 19 40 -79 19 40 -40 24 40 -196 24 40
2 24 -40 24 40 -196 24 40
1 16 -40 18 0 0 -1 0 0 0 6 40 0 0 rect.dat
4 16 -40 24 -40 -40 12 -40 -56 12 -40 -79 19 -40
4 16 -196 12 -40 -196 24 -40 -161 19 -40 -184 12 -40
4 16 -161 19 -40 -196 24 -40 -40 24 -40 -79 19 -40
2 24 -196 24 -40 -40 24 -40
0 // inside box of plate
0 BFC INVERTNEXT
1 16 120 24 0 0 0 76 0 -20 0 156 0 0 box5.dat
0 // notches on plate
1 16 46 4 140 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 100 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 60 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 20 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 -20 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 -60 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 -100 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 46 4 -140 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 140 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 100 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 60 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 -20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 -60 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 -100 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 194 4 -140 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 100 4 -154 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 100 4 154 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 140 4 -154 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 140 4 154 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 60 4 -154 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 60 4 154 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 180 4 -154 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 180 4 154 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
0 // top studs on plate
1 16 120 0 80 0 0 1 0 2.75 0 1 0 0 stug7-4x4.dat
1 16 120 0 -80 0 0 1 0 2.75 0 1 0 0 stug7-4x4.dat
0 // underside studs on plate
1 16 160 4 120 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 80 4 120 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 120 4 80 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 80 4 40 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 160 4 40 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 120 4 0 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 160 4 -40 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 80 4 -40 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 120 4 -80 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 80 4 -120 0 0 1 0 -5 0 1 0 0 stud8.dat
1 16 160 4 -120 0 0 1 0 -5 0 1 0 0 stud8.dat
0 // reinforcement lines on plate
1 16 120 4 -126 0 0 -1.5 0 8 0 30 0 0 box3u5p.dat
1 16 120 4 -96 0 0 -1.5 0 8 0 1.5 0 0 boxjcyl4.dat
1 16 120 4 64 0 0 1.5 0 8 0 1.5 0 0 boxjcyl4.dat
1 16 120 4 40 0 0 1.5 0 8 0 24 0 0 box3u8p.dat
1 16 120 4 16 0 0 -1.5 0 8 0 -1.5 0 0 boxjcyl4.dat
1 16 120 4 -16 0 0 1.5 0 8 0 1.5 0 0 boxjcyl4.dat
1 16 120 4 -40 0 0 1.5 0 8 0 24 0 0 box3u8p.dat
1 16 120 4 -64 0 0 -1.5 0 8 0 -1.5 0 0 boxjcyl4.dat
1 16 120 4 126 0 0 -1.5 0 8 0 -30 0 0 box3u5p.dat
1 16 120 4 96 0 0 -1.5 0 8 0 -1.5 0 0 boxjcyl4.dat
1 16 74 4 80 30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 104 4 80 1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
1 16 74 4 0 30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 104 4 0 1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
1 16 74 4 -80 30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 104 4 -80 1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
1 16 166 4 80 -30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 136 4 80 -1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
1 16 166 4 0 -30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 136 4 0 -1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
1 16 166 4 -80 -30 0 0 0 8 0 0 0 -1.5 box3u5p.dat
1 16 136 4 -80 -1.5 0 0 0 8 0 0 0 -1.5 boxjcyl4.dat
Status:
Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2024-11-09 03:20:53
2024-11-09 12:20:13
2024-11-09 12:24:00
It does have ridges...
Had forgotten to uncomment the triangles.
2024-11-14 15:25:11
should the ribs get grouped and subfiled?
Subfiled the tracks as suggested. Subfile track length chosen to also fit 6377s01 although it is already official.
The library guidelines/requirements state that the origin should be the centre of the topmost stud group. Is it, in this case, better to keep the present origin (in the middle of the whole part) or shift it to the middle of the side plate?
The library guidelines/requirements state that the origin should be the centre of the topmost stud group. Is it, in this case, better to keep the present origin (in the middle of the whole part) or shift it to the middle of the side plate?
Centered origin of subfile as suggested.
Learning to check for BFC errors. Correcting one quad at right track inside top.
Subpart will be updated soon. This part will need a minor update to use the corrected subpart.
Updated to reuse newly-created 6377 subfiles and updated 35965s01 subfile.
2025-08-16 17:04:10
