Unofficial File parts/s/30489s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

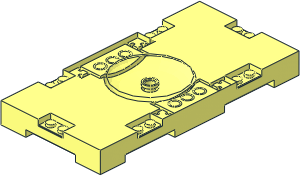

0 ~Brick 16 x 8 Sports Field Section without Patternable Surface
0 Name: s\30489s01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show file code
0 // Top Studs
1 16 0 0 150 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 70 0 80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 70 0 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 0 0 -150 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 -70 0 -80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 -70 0 80 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
0 // Top Surface
1 16 0 -8 0 50 0 0 0 1 0 0 0 50 4-4edge.dat
3 16 -20 -8 160 -80 -8 160 -80 -8 100
3 16 80 -8 160 20 -8 160 80 -8 100
3 16 -80 -8 -160 -20 -8 -160 -80 -8 -100
3 16 20 -8 -160 80 -8 -160 80 -8 -100
4 16 -20 -8 140 -20 -8 160 -80 -8 100 -60 -8 100
4 16 60 -8 100 -60 -8 100 -60 -8 60 60 -8 60
4 16 -60 -8 100 60 -8 100 20 -8 140 -20 -8 140
4 16 20 -8 140 60 -8 100 80 -8 100 20 -8 160
4 16 -80 -8 -100 -20 -8 -160 -20 -8 -140 -60 -8 -100
4 16 -60 -8 -60 -60 -8 -100 60 -8 -100 60 -8 -60
4 16 20 -8 -140 60 -8 -100 -60 -8 -100 -20 -8 -140
4 16 80 -8 -100 60 -8 -100 20 -8 -140 20 -8 -160
0 // Corners
1 16 60 -4 -140 0 0 1 0 1 0 1 0 0 s\30489s02.dat
1 16 60 -4 140 0 0 1 0 1 0 -1 0 0 s\30489s02.dat
1 16 -60 -4 -140 0 0 -1 0 1 0 1 0 0 s\30489s02.dat
1 16 -60 -4 140 0 0 -1 0 1 0 -1 0 0 s\30489s02.dat
0 // Side Cavities
1 16 0 4 -150 1 0 0 0 1 0 0 0 1 s\30489s03.dat
1 16 0 4 150 1 0 0 0 1 0 0 0 -1 s\30489s03.dat
1 16 -70 4 -80 0 0 1 0 1 0 1 0 0 s\30489s03.dat
1 16 -70 4 80 0 0 1 0 1 0 -1 0 0 s\30489s03.dat
1 16 70 4 -80 0 0 -1 0 1 0 1 0 0 s\30489s03.dat
1 16 70 4 80 0 0 -1 0 1 0 -1 0 0 s\30489s03.dat
0 // Mid Sides
1 16 -60 -4 0 1 0 0 0 1 0 0 0 1 s\30489s04.dat
1 16 60 -4 0 -1 0 0 0 1 0 0 0 1 s\30489s04.dat
3 16 -52.603 -4 0 -76 -4 -36 -76 -4 36
3 16 52.603 -4 0 76 -4 36 76 -4 -36
0 // Bottom Dome
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30489s05.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\30489s05.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30489s05.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\30489s05.dat
0 // Pin Hole Upper Half
1 16 0 0 0 1 0 0 0 1 0 0 0 1 peghole.dat
1 16 0 0 0 10 0 0 0 4 0 0 0 10 4-4cyli.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 4-4ring4.dat
1 16 0 0 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
1 16 0 4 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 2 0 6 0 0 0 16 0 0 0 6 4-4cyli.dat
0 // Pin Hole Lower Half
1 16 0 8 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
1 16 0 18 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
1 16 0 8 0 10 0 0 0 10 0 0 0 10 4-4cyli.dat
1 16 0 18 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 18 0 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
1 16 0 18 0 2 0 0 0 -1 0 0 0 2 4-4ring4.dat
0 // Bottom
0 BFC INVERTNEXT
1 16 0 10 128 40 0 0 0 0 -14 0 8 0 box2-11.dat
0 BFC INVERTNEXT
1 16 48 10 80 0 8 0 0 0 -14 40 0 0 box2-11.dat
0 BFC INVERTNEXT
1 16 -48 10 80 0 -8 0 0 0 -14 40 0 0 box2-11.dat
0 BFC INVERTNEXT
1 16 0 10 -128 40 0 0 0 0 -14 0 -8 0 box2-11.dat
0 BFC INVERTNEXT
1 16 48 10 -80 0 8 0 0 0 -14 40 0 0 box2-11.dat
0 BFC INVERTNEXT
1 16 -48 10 -80 0 -8 0 0 0 -14 40 0 0 box2-11.dat
4 16 -13.615 -4 50.81 -26.301 -4 45.555 -40 -4 40 -40 -4 120
3 16 0 -4 52.603 -13.615 -4 50.81 -40 -4 120
4 16 13.615 -4 50.81 0 -4 52.603 -40 -4 120 40 -4 120
4 16 13.615 -4 50.81 40 -4 120 40 -4 40 26.301 -4 45.555
4 16 -40 -4 -40 -26.301 -4 -45.555 -13.615 -4 -50.81 -40 -4 -120
3 16 -13.615 -4 -50.81 0 -4 -52.603 -40 -4 -120
4 16 -40 -4 -120 0 -4 -52.603 13.615 -4 -50.81 40 -4 -120
4 16 40 -4 -40 40 -4 -120 13.615 -4 -50.81 26.301 -4 -45.555Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2025-07-18 05:01:55
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-07-18 05:09:02
Chris Böhnke [KnightOfTarenta]
submitted a new version of the part (all votes reset).
2025-07-19 04:36:06
*corrected center pin height and length
*corrected dimple diameter
*corrected underpin positions
*added bottom chamfers and top cutouts (plate removal helpers)
*added stud connector ribs in side cavities
*sub-filed patternable area
*reworked main geometry from scratch to remove various smaller issues
*sub-filed to re-use in 30492 and 41819
There is a small overlap on the bottom, between the dimple and the center anti-stud. Not sure if that is problematic enough to rework that area.
*corrected dimple diameter
*corrected underpin positions
*added bottom chamfers and top cutouts (plate removal helpers)
*added stud connector ribs in side cavities
*sub-filed patternable area
*reworked main geometry from scratch to remove various smaller issues
*sub-filed to re-use in 30492 and 41819
There is a small overlap on the bottom, between the dimple and the center anti-stud. Not sure if that is problematic enough to rework that area.
Chris Böhnke [KnightOfTarenta]
submitted a new version of the part (all votes reset).
2025-07-19 04:39:18
*Moved top surface 4-4edge to sub-file
The reverse of the "pit" still has the old radius. Is there any need to change this?
Very old part and only checked the file on surface level.
