Unofficial File parts/31442.dat
Part Attributes:
File Header:

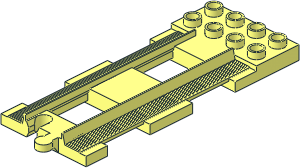

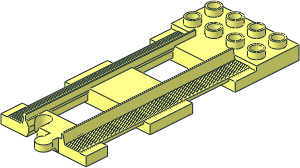

0 Duplo Train Track End with 2 x 4 Plate on One End
0 Name: 31442.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Train
Show contents
1 16 0 0 180 1 0 0 0 2.75 0 0 0 1 stug7-1x4.dat
1 16 0 0 220 1 0 0 0 2.75 0 0 0 1 stug7-1x4.dat
0 // big sleeper
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6377s03.dat
0 // connector end half
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6377s01.dat
0 // left track base
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\6377s02.dat
0 // left track ribs
1 16 -53 6.5 0 -1 0 0 0 1 0 0 0 -1 s\35965s01.dat
0 // big sleeper rear wall
4 16 64 12 40 68 12 40 80 24 40 41 19 40
4 16 41 19 40 80 24 40 -80 24 40 -41 19 40
4 16 -80 24 40 -68 12 40 -64 12 40 -41 19 40
0 // big sleeper helm
4 16 -80 24 40 80 24 40 76 24 36 -76 24 36
4 16 -76 24 -36 -80 24 -40 -80 24 40 -76 24 36
2 24 80 24 40 -80 24 40
0 // big sleeper boot
1 16 -74 16 0 0 0 -6 0 -8 0 -40 0 0 box2-5.dat
4 16 -68 8 40 -68 12 40 -80 24 40 -80 8 40
4 16 -80 24 -40 -68 12 -40 -68 8 -40 -80 8 -40
0 // rear sleeper helm
4 16 80 24 240 80 24 120 76 24 124 76 24 236
4 16 -76 24 124 76 24 124 80 24 120 -80 24 120
4 16 -80 24 240 -76 24 236 -76 24 124 -80 24 120
4 16 80 24 240 76 24 236 -76 24 236 -80 24 240
1 16 0 24 180 80 0 0 0 1 0 0 0 -60 recte3.dat
0 // rear sleeper front side
4 16 37 8 120 -37 8 120 -37 19 120 37 19 120
4 16 34 2 120 -34 2 120 -37 8 120 37 8 120
4 16 68 8 120 68 12 120 80 24 120 80 8 120
4 16 80 24 120 68 12 120 64 12 120 41 19 120
4 16 -41 19 120 -80 24 120 80 24 120 41 19 120
4 16 -80 24 120 -68 12 120 -68 8 120 -80 8 120
4 16 -64 12 120 -68 12 120 -80 24 120 -41 19 120
0 // right track side
3 16 68 8 160 68 7 160 68 8 120
1 16 -66 10 -80 0 -2 0 0 0 2 40 0 0 box2-7.dat
0 // left track side
3 16 -68 8 120 -68 7 160 -68 8 160
4 16 -68 7 160 -68 8 120 -68 8 -120 -68 7 -160
1 16 -66 10 80 0 -2 0 0 0 2 40 0 0 box2-7.dat
0 // rear outer box
1 16 0 1 140 34 0 0 0 -1 0 0 0 -20 box2-11.dat
1 16 74 8 140 0 0 6 0 1 0 20 0 0 rect.dat
1 16 -74 8 140 0 0 6 0 1 0 20 0 0 rect.dat
1 16 0 12 240 80 0 0 0 0 -12 0 -1 0 rect.dat
2 24 80 24 120 80 8 120
2 24 -80 24 120 -80 8 120
4 16 -80 0 240 -34 0 160 34 0 160 80 0 240
3 16 80 0 240 34 0 160 80 0 160
4 16 80 8 160 80 8 120 80 24 120 80 24 240
4 16 80 24 240 80 0 240 80 0 160 80 8 160
4 16 80 0 160 68 7 160 68 8 160 80 8 160
4 16 40 7 160 68 7 160 80 0 160 38.25 0 160
2 24 80 0 240 80 0 160
2 24 80 0 160 38.25 0 160
2 24 80 8 160 80 0 160
3 16 -34 0 160 -80 0 240 -80 0 160
4 16 -80 24 120 -80 8 120 -80 8 160 -80 24 240
4 16 -80 0 160 -80 0 240 -80 24 240 -80 8 160
4 16 -68 8 160 -68 7 160 -80 0 160 -80 8 160
4 16 -80 0 160 -68 7 160 -40 7 160 -38.25 0 160
2 24 -80 0 240 -80 0 160
2 24 -80 0 160 -38.25 0 160
2 24 -80 8 160 -80 0 160
4 16 -38.25 0 160 -36 -9 160 -34 -9 160 -34 0 160
2 24 34 0 160 38.25 0 160
2 24 -34 0 160 -38.25 0 160
0 // rear inner box
0 BFC INVERTNEXT
1 16 0 8 144 -37 0 0 0 -4 0 0 0 -20 box2-11.dat
1 16 0 4 200 -76 0 0 0 -1 0 0 0 36 recte3.dat
1 16 0 4 160 1 0 0 0 -4 0 0 0 1 stud8.dat
1 16 0 4 200 1 0 0 0 -4 0 0 0 1 stud8.dat
1 16 40 4 200 1 0 0 0 -4 0 0 0 1 stud8.dat
1 16 -40 4 200 1 0 0 0 -4 0 0 0 1 stud8.dat
3 16 -37 4 164 -76 4 164 -76 4 236
4 16 37 4 164 -37 4 164 -76 4 236 76 4 236
3 16 37 4 164 76 4 236 76 4 164
2 24 -76 24 236 76 24 236
4 16 76 4 236 -76 4 236 -76 24 236 76 24 236
1 16 56.5 8 144 0 0 -19.5 0 4 0 20 0 0 box3-3.dat
2 24 76 24 236 76 4 236
2 24 76 12 124 76 24 124
2 24 76 24 124 76 24 236
4 16 76 24 124 76 12 124 76 12 164 76 24 236
4 16 76 4 236 76 24 236 76 12 164 76 4 164
3 16 -37 12 124 -76 24 124 -76 12 124
3 16 76 12 124 76 24 124 37 12 124
4 16 -76 24 124 -37 12 124 37 12 124 76 24 124
2 24 -76 24 124 76 24 124
1 16 -74 12 140 0 0 2 0 11 0 -1.5 0 0 box4-1.dat
1 16 -60 12 126 1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 -20 4 126 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 20 4 126 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 60 12 126 1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 74 12 140 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 -40 12 160 1 0 0 0 -2 0 0 0 1 stud8a.dat
1 16 -40 12 160 0 0 -14 0 1 0 -14 0 0 1-4edge.dat
1 16 -40 12 160 0 0 -16 0 1 0 -16 0 0 1-4edge.dat
1 16 -40 12 160 6.1229 0 14.7821 0 -8 0 -14.7821 0 6.1229 5-8cyli.dat
2 24 -37 4 144.5966 -37 12 144.5966
2 24 -33.8768 4 145.2176 -37 4 144.5966
4 16 -37 12 144.5966 -33.8768 12 145.2176 -33.8768 4 145.2176 -37 4 144.5966
5 24 -33.8768 12 145.2176 -33.8768 4 145.2176 -28.6863 14 148.6863 -37 12 144.5966
2 24 -37 12 144.5966 -40 12 144
1 16 -40 4 160 6.1229 0 14.7821 0 1 0 -14.7821 0 6.1229 5-8edge.dat
1 16 -40 4 160 5.3576 0 12.9343 0 1 0 -12.9343 0 5.3576 5-8edge.dat
0 BFC INVERTNEXT
1 16 -40 12 160 5.3576 0 12.9343 0 -8 0 -12.9343 0 5.3576 5-8cyli.dat
2 24 -37 4 146.5966 -34.6422 4 147.0654
2 24 -37 12 146.5966 -37 4 146.5966
4 16 -37 12 146.5966 -37 4 146.5966 -34.6422 4 147.0654 -34.6422 12 147.0654
2 24 -37 12 146.5966 -40 12 146
1 16 -56.5 8 144 0 0 19.5 0 4 0 20 0 0 box3-3.dat
2 24 -76 24 124 -76 12 124
2 24 -76 4 236 -76 24 236
2 24 -76 24 236 -76 24 124
4 16 -76 24 236 -76 12 164 -76 12 124 -76 24 124
4 16 -76 12 164 -76 24 236 -76 4 236 -76 4 164
1 16 74 4 180 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 74 4 220 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
1 16 60 4 234 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 20 4 234 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -20 4 234 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -60 4 234 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -74 4 180 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -74 4 220 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 40 12 160 -1 0 0 0 -2 0 0 0 -1 stud8a.dat
1 16 40 12 160 0 0 14 0 1 0 -14 0 0 1-4edge.dat
1 16 40 12 160 0 0 16 0 1 0 -16 0 0 1-4edge.dat
1 16 40 12 160 -6.1229 0 -14.7821 0 -8 0 -14.7821 0 6.1229 5-8cyli.dat
2 24 37 4 144.5966 33.8768 4 145.2176
2 24 37 12 144.5966 37 4 144.5966
4 16 33.8768 4 145.2176 33.8768 12 145.2176 37 12 144.5966 37 4 144.5966
5 24 33.8768 4 145.2176 33.8768 12 145.2176 28.6863 14 148.6863 37 12 144.5966
2 24 37 12 144.5966 40 12 144
1 16 40 4 160 -6.1229 0 -14.7821 0 1 0 -14.7821 0 6.1229 5-8edge.dat
1 16 40 4 160 -5.3576 0 -12.9343 0 1 0 -12.9343 0 5.3576 5-8edge.dat
0 BFC INVERTNEXT
1 16 40 12 160 -5.3576 0 -12.9343 0 -8 0 -12.9343 0 5.3576 5-8cyli.dat
2 24 37 4 146.5966 37 12 146.5966
2 24 34.6422 4 147.0654 37 4 146.5966
4 16 34.6422 4 147.0654 37 4 146.5966 37 12 146.5966 34.6422 12 147.0654
2 24 37 12 146.5966 40 12 146
2 24 54 12 160 53.2046 12 164
2 24 56 12 160 55.2046 12 164
2 24 53.2046 4 164 52.9346 4 165.3578
2 24 55.2046 4 164 54.7824 4 166.1232
2 24 53.2046 12 164 53.2046 4 164
2 24 55.2046 12 164 55.2046 4 164
4 16 52.9342 4 165.3575 52.9342 12 165.3575 53.2046 12 164 53.2046 4 164
4 16 55.2046 12 164 54.7819 12 166.1229 54.7819 4 166.1229 55.2046 4 164
5 24 54.7819 4 166.1229 54.7819 12 166.1229 51.3137 14 171.3137 55.2046 12 164
2 24 -54 12 160 -53.2046 12 164
2 24 -56 12 160 -55.2046 12 164
2 24 -53.2046 4 164 -52.9346 4 165.3578
2 24 -55.2046 4 164 -54.7824 4 166.1232
2 24 -53.2046 12 164 -53.2046 4 164
2 24 -55.2046 12 164 -55.2046 4 164
4 16 -53.2046 12 164 -52.9342 12 165.3575 -52.9342 4 165.3575 -53.2046 4 164
4 16 -54.7819 4 166.1229 -54.7819 12 166.1229 -55.2046 12 164 -55.2046 4 164
5 24 -54.7819 12 166.1229 -54.7819 4 166.1229 -51.3137 14 171.3137 -55.2046 12 164
0 // fillets on understuds
1 16 0 4 160 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 0 4 160 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 0 4 160 1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 0 4 160 -1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 0 4 200 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 0 4 200 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 0 4 200 1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 0 4 200 -1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 40 4 200 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 40 4 200 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 40 4 200 1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 40 4 200 -1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 -40 4 200 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 -40 4 200 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 -40 4 200 1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 -40 4 200 -1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 40 4 160 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 40 4 160 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 40 12 160 1 0 0 0 1 0 0 0 -1 s\31442s01.dat
1 16 40 4 160 -1 0 0 0 5 0 0 0 -1 s\31442s01.dat
1 16 -40 4 160 1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 -40 4 160 -1 0 0 0 5 0 0 0 1 s\31442s01.dat
1 16 -40 12 160 -1 0 0 0 1 0 0 0 -1 s\31442s01.dat
1 16 -40 4 160 1 0 0 0 5 0 0 0 -1 s\31442s01.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/s/35965s01.dat (Awaiting Admin Review)
parts/s/6377s01.dat (Awaiting Admin Review)
parts/s/6377s03.dat (Awaiting Admin Review)
parts/s/6377s02.dat (Needs 2 More Votes)
parts/s/31442s01.dat (Awaiting Admin Review)
parts/s/35965s01.dat (Awaiting Admin Review)
parts/s/6377s04.dat (Awaiting Admin Review)
parts/s/6377s02.dat (Needs 2 More Votes)
parts/s/6377s05.dat (Awaiting Admin Review)
parts/s/6377s05.dat (Awaiting Admin Review)
Current Votes:
None
Official parents and subparts
Part Events:
Created to use the new modular subfiles in 6377 and 35965.
2025-03-14 12:23:35
ah beat me to it
Added fillets as suggested by Gerald Lasser in Part Request forum thread (https://forums.ldraw.org/thread-28601.html). The subfile is just for scaling and to avoid repeating the same lines over and over again. Perhaps there are more parts with the same type of fillets?
2025-08-16 17:05:53
overlap at the plate track ends
2025-08-16 22:38:01
Removed overlap
2025-08-18 02:03:43
2025-09-17 13:05:29
* Since these two complementaries are missing I presume there are missing more:
2 273 33.8768 12 145.2176 33.8768 4 145.2176
2 273 54.7819 4 166.1229 54.7819 12 166.1229
* These are present in the rect of s03 as well as s02:
2 24 34 0 -40 34 0 40
2 24 -34 0 40 -34 0 -40
2 273 33.8768 12 145.2176 33.8768 4 145.2176
2 273 54.7819 4 166.1229 54.7819 12 166.1229
* These are present in the rect of s03 as well as s02:
2 24 34 0 -40 34 0 40
2 24 -34 0 40 -34 0 -40
overlap detected
Added the four missing complementary cond lines. Eliminated overlap between s02 and s03. Converted some rects to boxes. Some rects remain.
2025-09-20 06:54:39
* Overlap:
2 24 68 12 40 64 12 40
* Rest looks good beside the rects
******************************************
* The general question is why the duplo tracks are aligned on Z while the 12V, 9V are on X
2 24 68 12 40 64 12 40
* Rest looks good beside the rects
******************************************
* The general question is why the duplo tracks are aligned on Z while the 12V, 9V are on X
2025-09-20 10:43:30
The 6377 and 6391 created by Michael Heidemann in 2013 had this alignment. Reviewers didn't react at the time.
Overlap detected
Removed overlapping edge
2025-09-21 08:01:53
* Looks good beside the rects
