Unofficial File parts/64665.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release
External site data provided by Rebrickable.com

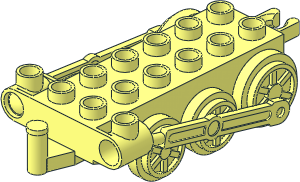

Duplo Train Steam Engine Base 4 x 6 with Pushrod and 3 Axles
0 Duplo Train Steam Engine Base  4 x  6 with Pushrod and 3 Axles
0 Name: 64665.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Duplo
0 !KEYWORDS Bricklink 4580c01, Rebrickable 4580c01
Show file code:
1 16 0 37 85 1 0 0 0 1 0 0 0 1 70461c02.dat
1 16 0 42 14 1 0 0 0 1 0 0 0 1 70461c03.dat
1 16 0 42 -52 1 0 0 0 1 0 0 0 1 70461c03.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 4580.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 4564.dat

1 16 -64 28.6849 70.5978 -1 0 0 0 -.99756 .06976 0 .06976 .99756 4551a.dat
1 16 64 53.6302 85 1 0 0 0 .97815 .20791 0 -.20791 .97815 4551a.dat

1 16 0 21 54.5 -1 0 0 0 1 0 0 0 -1 u9094.dat

Status

Not releaseable Errors Found (HN) Errors Found (HN)

Current Votes:

Hold
Peter Blomberg [WUIt]
This part has the following warnings
  • Number in description may need a leading space
This part has the following automated holds from the Parts Tracker

Part Dependencies

Official parents and subparts

Part Events

Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2025-10-10 22:05:20
Gerald Lasser [GeraldLasser]
Part Library Admin
edited the part header.
2025-10-10 22:06:06
Header Edits

help:
0 !HELP
to
0 !HELP
description:
Duplo Train Steam Engine Base 4 x 6
to
Duplo Train Steam Engine Base 4 x 6 with Three Axles and Movable Hitch

Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-10-10 22:06:33
something is wrong with the pushrods
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-10 22:08:13
yes, the file is missing, but the tracker doesn't show it missing...
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-10 22:11:48
I keep it as is, to let Orion have a look
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-10-10 22:22:33
found something: there are 4551a and 4551b, but no 4551.dat
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-10 22:56:46
Yes, I know, I uploaded them yesterday, but the tracker needs to tell us the file that is missing
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold
2025-10-11 06:41:54
Should this use 4551a or 4551b?
All the assemblies uploaded yesterday should be Unofficial_Shortcut, not Part
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part (all votes reset).
2025-10-12 12:24:57
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-10-12 13:07:45
And this looks like 64665
https://brickset.com/parts/design-64665
Rene Rechthaler [Blechtaler]
Part Header Editor
edited the part header.
2025-10-12 17:47:06
Header Edits

help:
0 !HELP
to
0 !HELP
description:
Duplo Train Steam Engine Base 4 x 6 with Pushrod and Three Axels
to
Duplo Train Steam Engine Base 4 x 6 with Pushrod and Three Axles

Comment:
flipped "el" in axle
Magnus Forsberg [MagFors]
Part Library Admin
renamed the part.
2025-10-13 16:02:44
"parts/4580c01.dat" to "parts/64665.dat"
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-13 17:09:48
There are a two more assemblies with different push rods, do you have numbers for those? Or make a/b/c?
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-10-13 19:09:39
How do you tell them apart?
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-10-13 19:51:40
There is one more assy listed at BS 73354, and it seems to be an earlier version than 64665.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-10-13 20:01:14
And there is also 53120/64669, but it has only 2 axles.
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-14 06:48:23
> How do you tell them apart?

Have a look at 4551a/b/c

a ist the oldest
b/c are hard to tell as it seems that c was in use also pretty early, but I do have Thomas trains using the b version. Although there are pictures of the Thomas bases using the "c" rod.
Furthermore there was a technical change as they stopped using the "return-To-Zero" hitches. My Thomas bases have loose hitches, the earlier ones have the RTZ hitches. (This is not visible)
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2025-10-14 06:49:04
> And there is also 53120/64669, but it has only 2 axles.

Ok, THanks, this is Percy
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2025-10-19 22:18:21
Header Edits

description:
Duplo Train Steam Engine Base 4 x 6 with Pushrod and Three Axles
to
Duplo Train Steam Engine Base 4 x 6 with Pushrod and 3 Axles

Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Hold
2025-11-07 14:00:30
4580 and u9094 collide:
2 24 0 14 45.5 -2.5 14 45.997126
2 24 2.5 14 45.997126 0 14 45.5
2 24 0 14 67.5 -2.5 14 67.002874
2 24 -2.5 14 63.002874 0 14 63.5
2 24 0 14 67.5 2.5 14 67.002874
2 24 2.5 14 63.002874 0 14 63.5
