Unofficial File parts/740ac01.dat
Part Attributes:
File Header:

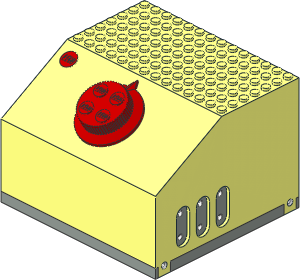

0 Electric Train 12V Transformer Type 1 (Complete)
0 Name: 740ac01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP connect cables for the tracks (0-13V= via 511c01.dat)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -80 0 0 1 1 0 0 0 1 0 u9607c01.dat
0 !HELP connect cables for electric switches (16V~)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -44 0 0 1 1 0 0 0 1 0 u9607c01.dat
0 !HELP place electric switch 833.dat
0 !HELP 1 1 120 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP place more electric switches 833.dat
0 !HELP 1 1 80 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 40 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 0 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -40 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -80 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -120 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP connect cables for lamps (3,6V~ for 4V= lamps 265ac01.dat)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -8 0 0 1 1 0 0 0 1 0 u9607c01.dat
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 740, Rebrickable 740
Show contents
0 // Bottom imprint (view from below)
0 // ╔═╦════════════════════════════╦═╗
0 // ║ ║ Siemens .................. ║ ║
0 // ╠═╬════════════════════════════╬═╣
0 // ║ ║ Transformator~ ....... 740 ║ ║
0 // ║ ║ prim 220V ........ 50/60Hz ║ ║
0 // ║ ║ secI 0-13V-.......... 11VA ║ ║
0 // ║ ║ secII 16V~ .......... 16VA ║ ║
0 // ║ ║ secIII 3,6V~ ......... 6VA ║ ║
0 // ╠═╬════════════════════════════╬═╣
0 // ║ ║ (lotsa electrical permits) ║ ║=== Cable
0 // ╚═╩════════════════════════════╩═╝
0 // electric contacts are on the left side
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9602.dat
1 7 0 192 0 1 0 0 0 1 0 0 0 1 u9603.dat
1 4 0 31.5359 -72.6218 1 0 0 0 .866 -.5 0 .5 .866 u9604.dat
1 494 0 31.5359 -72.6218 20 0 0 0 3.4641 -10 0 2 17.3205 4-4cylo.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/u9603.dat (Needs More Votes)
parts/u9602.dat (Needs More Votes)
parts/u9604.dat (Needs More Votes)
parts/s/u9603s02.dat (Awaiting Admin Review)
parts/s/u9603s01.dat (Awaiting Admin Review)
parts/s/u9602s01.dat (Needs More Votes)
parts/s/u9602s02.dat (Awaiting Admin Review)
parts/s/u9604s01.dat (Needs More Votes)
Current Votes:
None
Official parents and subparts
Part Events:
I didnt model the knob yet
The parttype and structure is not right.
This must be a "bottom plate part" and a "top cover part".
The subfiles need renumebring and this assy shoud be a Shortcut.
But don't upload new versions under a new number. Ask for a renumbering.
This must be a "bottom plate part" and a "top cover part".
The subfiles need renumebring and this assy shoud be a Shortcut.
But don't upload new versions under a new number. Ask for a renumbering.
with knob and cable, still needs renumber/rename
fixed broken links
Could you please stop uploading files you know is not correct.
The numbering and structure is not right in this case.
The library Admin will have enough to do anyway.
The numbering and structure is not right in this case.
The library Admin will have enough to do anyway.
2023-07-12 15:37:24
already asked here and in the forum, didnt get any answers...
If we don't know the partnumbers a uXXXX-number should be used. I can see in the list that you have been given a set of numbers. Use those.
It is easy to see that this is an assembly of 4 parts. Top, bottom, a red dial, and a grey cord.
IMO, 740a is a good choise as a base. Each of the parts should get a uXXXX-number, and might use as many subparts as needed.
The trafos, without the cord, should be 740ap01 and 740ap02.
This assembly (we call them "shortcut") could then be numbered 740ap01c01.
There is a need for a second assy, with an uncoloured bottomplate 740ap02c01.
More details in this image:
https://forums.ldraw.org/thread-27465-post-50975.html#pid50975
But since all files are now uploaded you need to send a mail to [email protected] and ask for help in renumbering all ot the files.
It is easy to see that this is an assembly of 4 parts. Top, bottom, a red dial, and a grey cord.
IMO, 740a is a good choise as a base. Each of the parts should get a uXXXX-number, and might use as many subparts as needed.
The trafos, without the cord, should be 740ap01 and 740ap02.
This assembly (we call them "shortcut") could then be numbered 740ap01c01.
There is a need for a second assy, with an uncoloured bottomplate 740ap02c01.
More details in this image:
https://forums.ldraw.org/thread-27465-post-50975.html#pid50975
But since all files are now uploaded you need to send a mail to [email protected] and ask for help in renumbering all ot the files.
2024-01-06 15:01:14
"parts/740a.dat" to "parts/740ac01.dat"
2024-01-06 15:01:53
Header Edits
type:
Part
to
Shortcut
Renumbering has been done.
The file still need some clean-up by the author.
The file still need some clean-up by the author.
thanks for the renumbering, cleaned it a bit...
forgot to link to the new cable part
got the link wrong
2024-01-07 08:51:59
The metal axle under the red knob is part of the knob. Right?
2024-01-07 10:32:32
more like part of the internals (which arent modeled)...
thats the axle of the autotransformer, which has the knob on the axle.
(this transformer is smooth like the Type 3, with a click in the center)
thats the axle of the autotransformer, which has the knob on the axle.
(this transformer is smooth like the Type 3, with a click in the center)
2024-07-06 15:41:15
should the metal parts (axle, rivets) get their own ~parts? which numbers then?
fixed the origin, added the cable cutout
added !HELP for the connections (there are 3 plug sockets for different outputs)
bottom imprints with electrical data
2024-11-29 17:56:51
does anyone have the non-EU-plug version? or even the 120V version (Part number 742)?
changed to shortcut without cable
(more compact, no holes in shell)
(more compact, no holes in shell)
