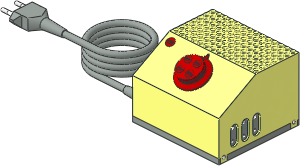

Electric Train 12V Transformer Type 1 (Complete) with Cable

File Header:

0 Electric Train 12V Transformer Type 1 (Complete) with Cable
0 Name: 740ac02.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP connect cables for the tracks (0-13V= via 511c01.dat)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -80 0 0 1 1 0 0 0 1 0 u9607c01.dat
0 !HELP connect cables for electric switches (16V~)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -44 0 0 1 1 0 0 0 1 0 u9607c01.dat
0 !HELP place electric switch 833.dat
0 !HELP 1 1 120 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP place more electric switches 833.dat
0 !HELP 1 1 80 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 40 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 0 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -40 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -80 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 -120 -32 110 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP connect cables for lamps (3,6V~ for 4V= lamps 265ac01.dat)
0 !HELP place electrical plugs for the tracks like u9607.dat
0 !HELP 1 1 135 134.5 -8 0 0 1 1 0 0 0 1 0 u9607c01.dat

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 740, Rebrickable 740

Show contents

0 // Bottom imprint (view from below)

0 // ╔═╦════════════════════════════╦═╗
0 // ║ ║ Siemens .................. ║ ║
0 // ╠═╬════════════════════════════╬═╣
0 // ║ ║ Transformator~ ....... 740 ║ ║
0 // ║ ║ prim 220V ........ 50/60Hz ║ ║
0 // ║ ║ secI 0-13V-.......... 11VA ║ ║
0 // ║ ║ secII 16V~ .......... 16VA ║ ║
0 // ║ ║ secIII 3,6V~ ......... 6VA ║ ║
0 // ╠═╬════════════════════════════╬═╣
0 // ║ ║ (lotsa electrical permits) ║ ║=== Cable
0 // ╚═╩════════════════════════════╩═╝
0 // electric contacts are on the left side

1 16 0 0 0 1 0 0 0 1 0 0 0 1 740ac01.dat
1 375 -140 164.6864 -70 0 0 1 0 1 0 -1 0 0 u9605.dat
