Unofficial File parts/u9232b.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

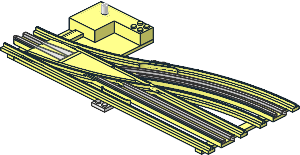

0 ~Train Track 12V Tapered Point Left Electric (Straight)
0 Name: u9232b.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Train
0 !KEYWORDS Bricklink sw12v1leftA, Rebrickable upn0388la, Set 754
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2023-10-01 [Blechtaler] with cable slot and adapted to the reworked u9226
0 !HISTORY 2025-04-26 [Blechtaler] added cable endShow file code:
0 // Needs Work: This assembly does not yet reference the point's
0 // moving rail part. It has to be added in its proper position,
0 // and the position of the actuator adjusted accordingly.
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9220.dat
1 15 0 16 0 0 0 1 0 1 0 -1 0 0 u9033.dat
1 16 -180 16 180 1 0 0 0 1 0 0 0 1 u9222.dat
1 16 -180 -14 180 1 0 0 0 1 0 0 0 1 u9224b.dat
1 79 -240 -16 180 -1 0 0 0 1 0 0 0 1 u9226b.dat
1 375 -280 11 183 0 4 0 0 0 -1 1 0 0 u9609.dat
1 375 -280 11 183 0 1 0 0 0 -1 1 0 0 s\u9609s03.datStatus
Errors Found (HN)
Current Votes:
Magnus Forsberg [MagFors]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfilesparts/u9224b.dat (Awaiting Admin Review)
parts/u9609.dat (Needs 1 More Vote)
parts/u9226b.dat (Needs 1 More Vote)
parts/u9222.dat (Needs 1 More Vote)
parts/s/u9609s03.dat (Needs 2 More Votes)
parts/s/u9224bs01.dat (Needs 1 More Vote)
parts/s/u9226bs01.dat (Needs 1 More Vote)
parts/s/u9226s01.dat (Needs 1 More Vote)
parts/s/u9224bs02.dat (Needs 2 More Votes)
parts/s/u9226s02.dat (Needs 1 More Vote)
Part Dependencies
Official parents and subparts
Part Events
Rene Rechthaler [Blechtaler]
initially submitted the part.
2023-10-05 23:00:17
Rene Rechthaler [Blechtaler]
made the following comment.
2024-02-27 19:26:14
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-03-02 15:15:59
now both 9226 and 24 have a changed origin...
Rene Rechthaler [Blechtaler]
made the following comment.
2024-03-02 15:19:38
i guess I have to change the bottom plate now...
Rene Rechthaler [Blechtaler]
made the following comment.
2024-05-12 16:55:46
bottom plate reworked
do we need more insides (gearrack+spring)?
does anyone want to rework the main switch part u9220?
do we need more insides (gearrack+spring)?
does anyone want to rework the main switch part u9220?
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2024-05-31 15:23:06
Orion Pobursky [OrionP]
renamed the part.
2025-04-24 16:29:35
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-04-26 12:28:15
changed cable color and closed it
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-04-26 16:54:32
A shortcut can't use a subfile.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-05-01 13:59:54
https://library.ldraw.org/parts/17006
https://library.ldraw.org/parts/19523
used in all motor and plug shortcuts...
should I add a cabled shortcut? which number should that have?
https://library.ldraw.org/parts/19523
used in all motor and plug shortcuts...
should I add a cabled shortcut? which number should that have?
Rene Rechthaler [Blechtaler]
edited the part header.
2025-10-09 19:10:57
Header Edits
help:
0 !HELP
to
0 !HELP
keywords:
Bricklink sw12v1leftA, Set 754
to
Bricklink sw12v1leftA, Set 754, Rebrickable upn0388la
added RB
Rene Rechthaler [Blechtaler]
made the following comment.
2025-12-26 21:01:12
should the cabled shortcut be c01 or should the "branching" one be c01?
I didnt change the origin, but size and position, does it also needs to be obsoleted?
